1. The injection components adopt a dual-cylinder balanced design, providing higher injection pressure, a simpler and more stable structure, and a shorter design space. The failure rate is low.
2. Increase the injection displacement cylinder, with larger models adopting a dual injection displacement cylinder structure, effectively preventing leakage from the nozzle during high-speed machine operation due to factors such as machine vibration.
3. The injection guide bushing adopts a graphite sleeve, improving the wear resistance of the bushing, reducing the frequency of lubrication required for the bushing, and effectively enhancing the cleanliness of the injection components.
4. The injection cylinder and the shooting cylinder adopt low-friction seals to improve the injection response speed and provide stability during complex processes.
5. The bridge-type platen is designed as a whole, suitable for plasticizing components with different length-to-diameter ratios.
Solid connecting rod
High Rigidity Template
Large Machine Tail Plate Flange
Gear Modulation
Large Machine Graphite Steel Bushing
Injection Molding Components
1. The front connecting rod adopts a monolithic structure, enhancing the rigidity of the connecting rod and ensuring consistency in its machining dimensions. This can reduce the clearance between the pin shaft and the cylinder liner, ensuring the precision of the connecting rod mechanism and improving its service life.

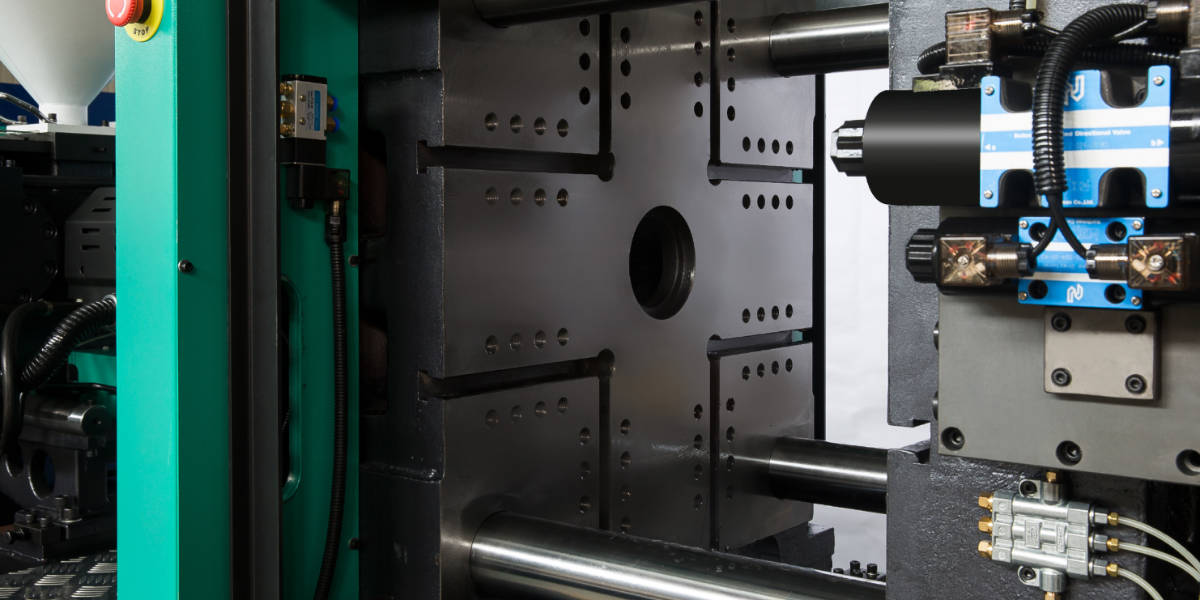

2. The clamping head plate adopts a box-type structural design, with increased thickness of the template and internal reinforcement, enhancing the rigidity of the head plate and more effectively reducing the bending deformation of the tie bars under force.
3. The unique tail plate flange design of medium and large models, when the tail plate deforms under force, generates a counter-torque through the cooperation and support between the tail plate flange and the tie rods, thereby reducing the deformation of the tail plate.
4. The gear mold adjustment structure offers high repeatability and strong mold adjustment force.
Use a powerful and efficient dual-cylinder injection
Design of Balanced Dual Ejection Oil Cylinders for Medium and Large Machines
Unlubricated graphite bushing
Use low-friction seals
Movable bridge-type injection unit base

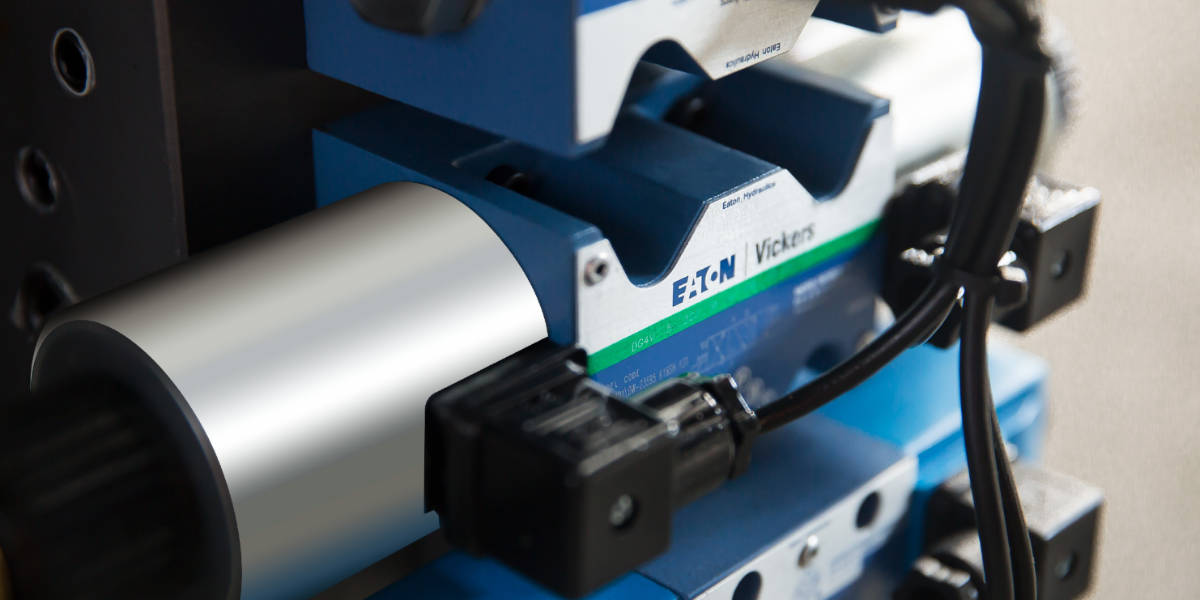

Hydraulic lubrication components
Low noise
The hydraulic control structure is designed reasonably with high integration, and unique noise reduction processing ensures smooth and quiet machine operation, making the working environment more comfortable.
Low fuel consumption
The reduction in oil temperature significantly extends the service life of the seals. The oil cleaning system can quickly and effectively filter out contaminants, ensuring the service life of hydraulic components.
Control system
1. The user-friendly computer interface is simple to operate, and the control box has a rotatable design for easy operation.
2. Optimized electrical design, using well-known brand injection molding machine dedicated computers, with fast response speed and reliable control.
3. All data during the equipment production process is fully preserved, and the data, lists, graphics, and other presentation methods are entirely in line with practical application needs.
4. Parameter data protection lock with power failure auto-save function, and ultra-large capacity data storage.
5. Complete records of the product process parameters, including set values, actual values, and related data, are maintained during the product realization.
