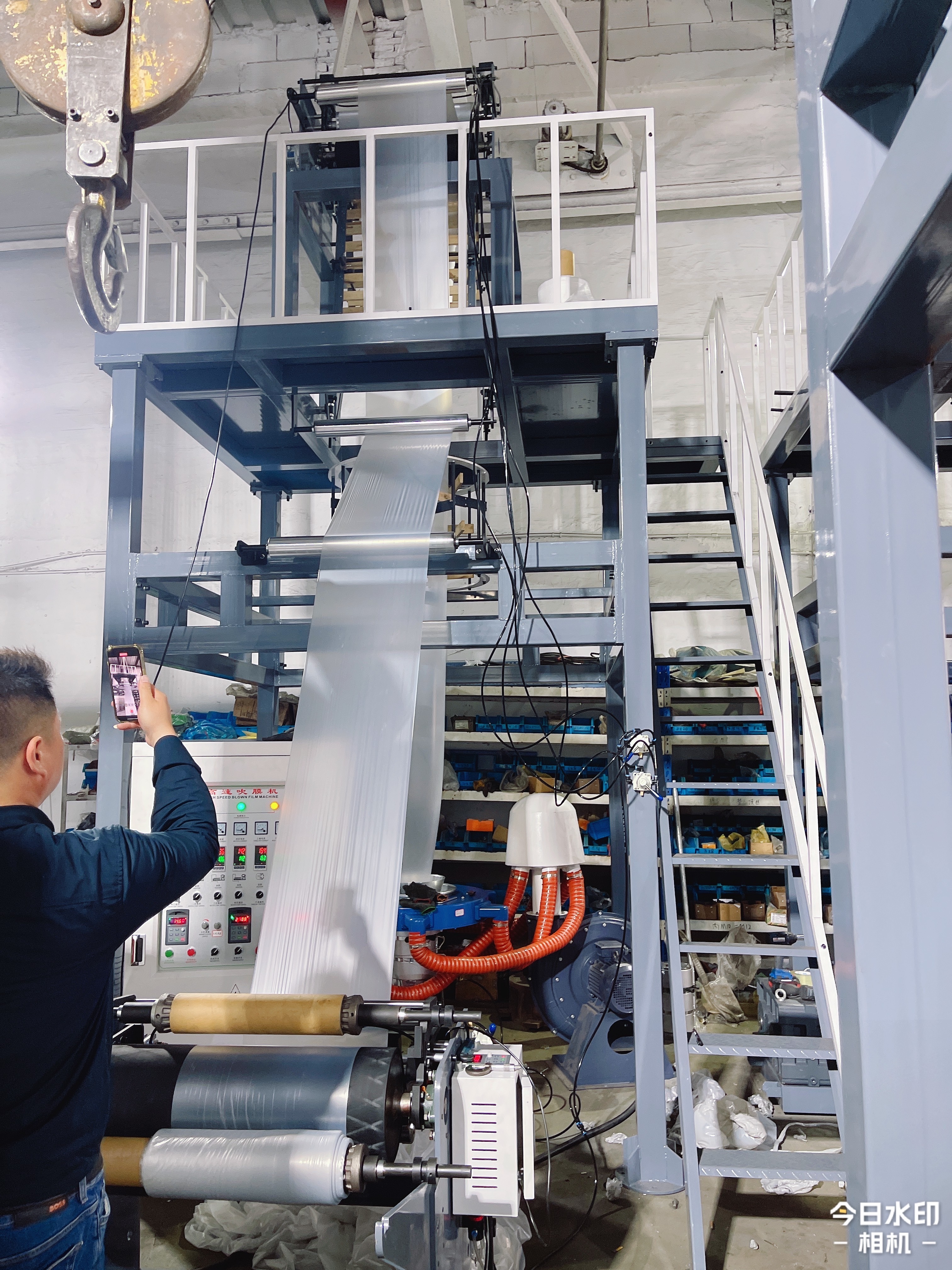

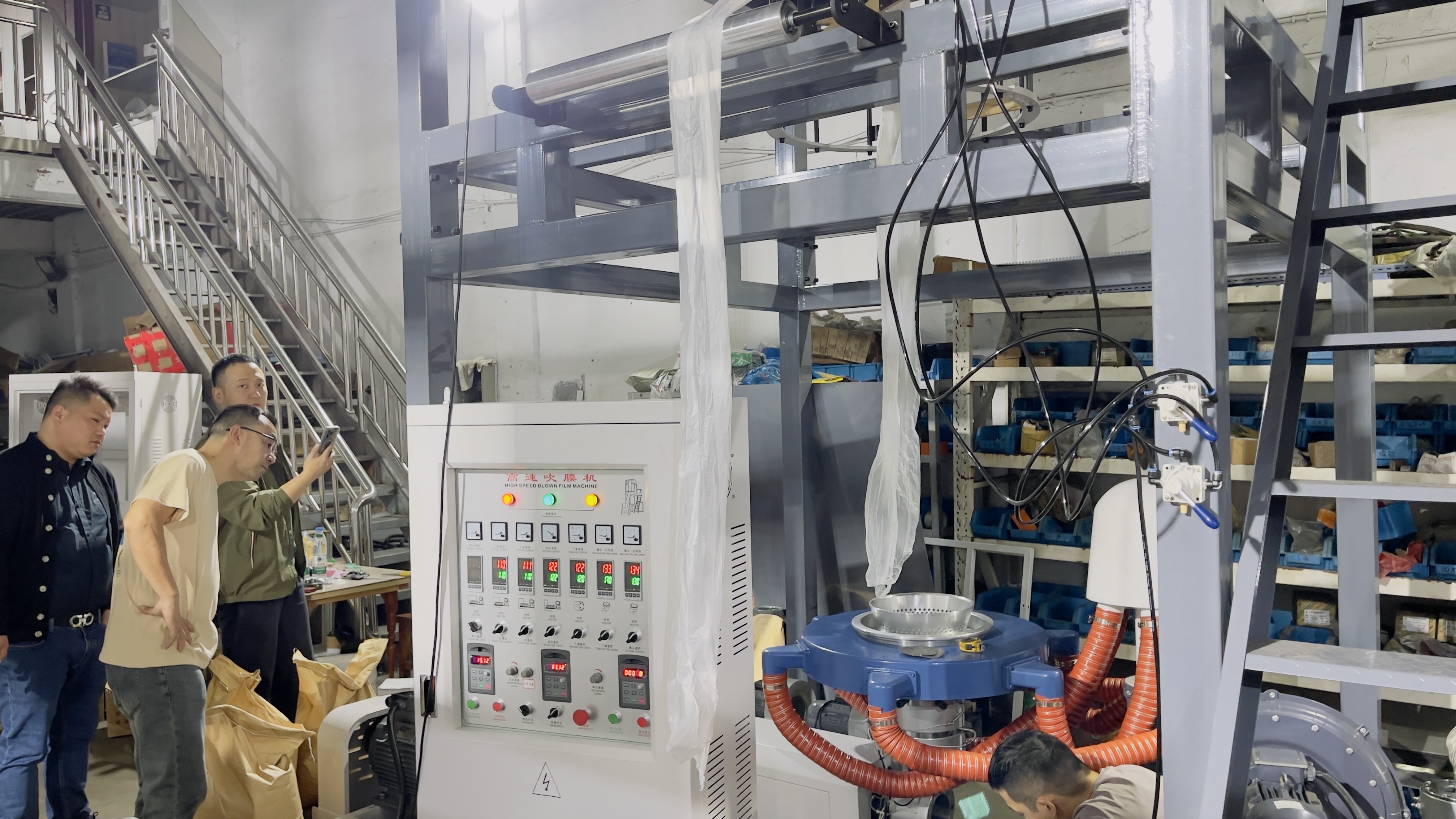

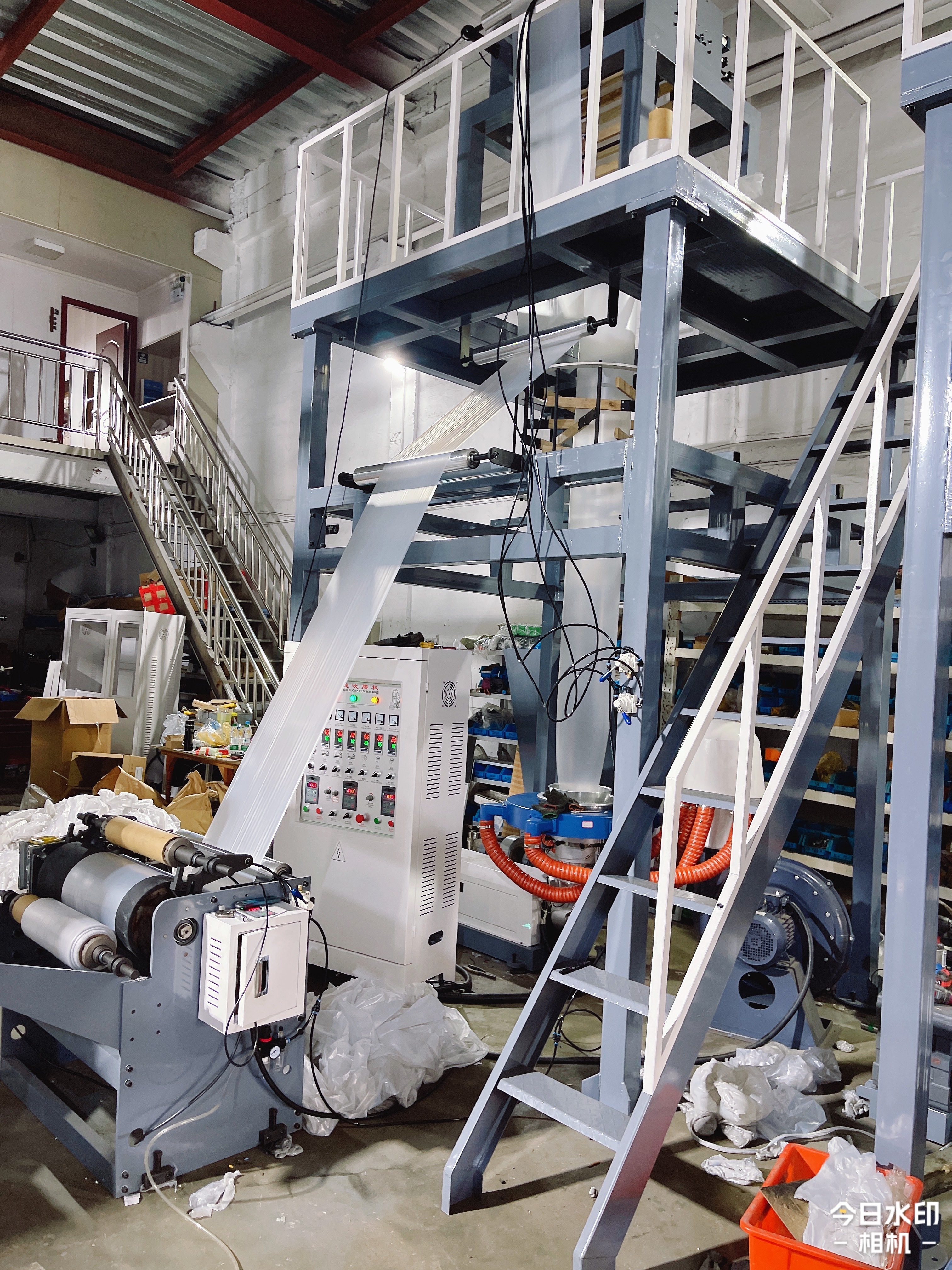

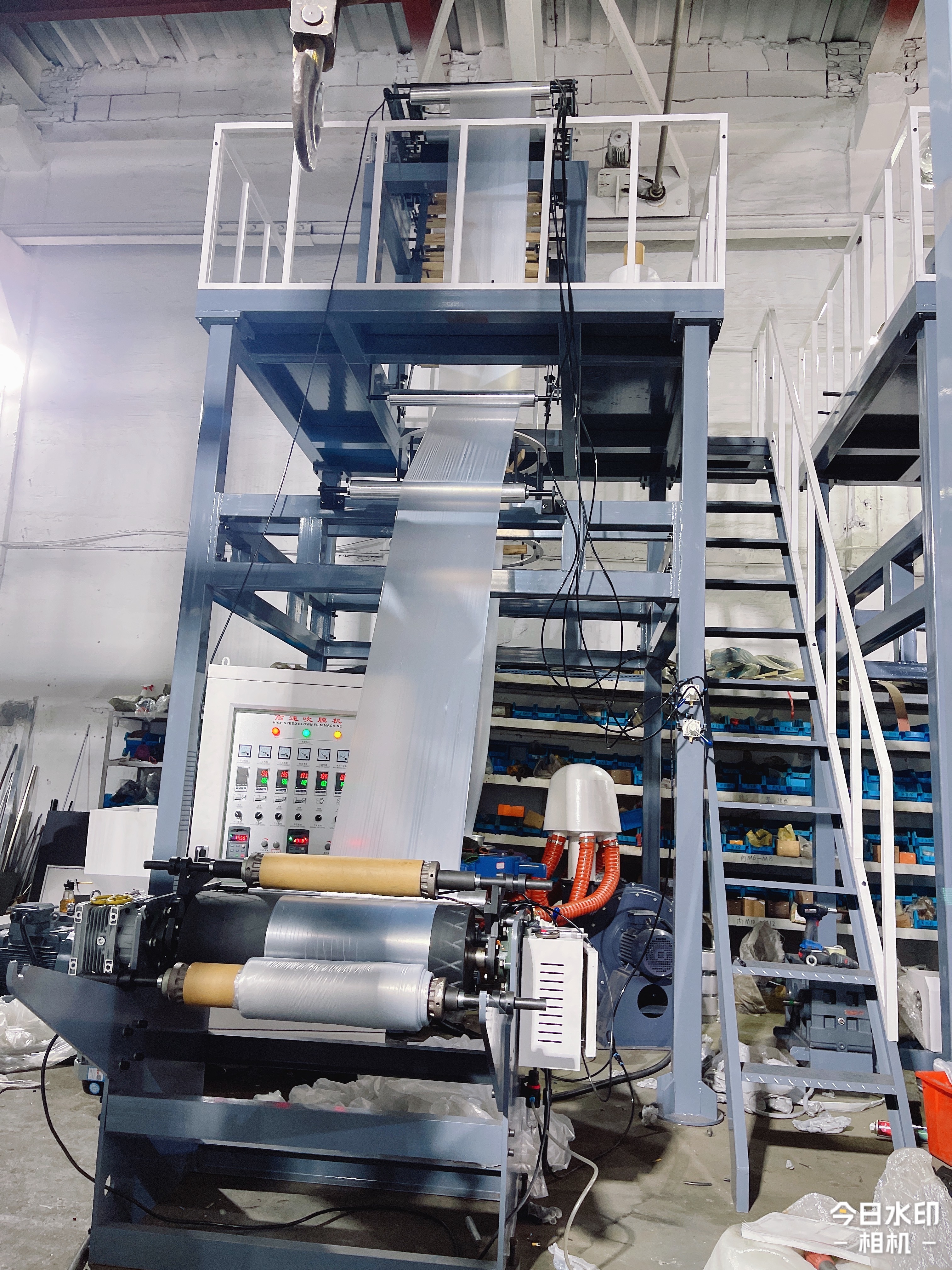

PE Blow Film Machine

Hardened Gearbox 146 Type Gearbox (National Standard) from Changzhou, Jiangsu
Barrel and Screw Φ50 from Zhoushan, Zhejiang
L/D Ratio 30:1
Screw Speed 0-120(min)
Maximum Film Width 600(mm)
Minimum Film Width 100(mm)
Maximum Film Thickness Single-sided 0.15s (HDPE)
Minimum Film Thickness Single-sided 0.002s (HDPE)
Maximum Extrusion Output 20-60kg/h
Barrel Heating Bands Stainless Steel Heating Bands (2 Zones)
Barrel Cooling Fans Centrifugal Fans 120W x 2
Three-way Connector Φ200 (Ceramic Heating)
Traction Motor 1.5kw (Variable Frequency)
Main Extruder Motor Three-phase Asynchronous Variable Frequency Motor 15kw
Main Motor Inverter 15kw Shenzhen Kewei
Total Power Consumption 28kw/h (Normal Production Power Consumption is 60-70%)
Machine Enclosure Full-length Enclosure
Feeding Method Vacuum Feeder
Film Thickness Control Gravimetric Control
Film Treatment Corona Treater
Die Head Low-pressure Die Head Φ50-70(mm)
Die Head Heating Bands Stainless Steel
Air Ring Single Port Air Ring 700mm (Configured according to the die head air blades)
High-pressure Blower 4KW (Variable Frequency)
Traction Frame Structure Fixed-type
Traction Frame Height 1600(mm)
Traction Motor 1.5kw (Variable Frequency)
Traction Speed 0-70(m/min)
Zipper Plate Wooden Grille Style
Bubble Stabilization Device Rod Type
Side Folding Device Wooden/Sheet Metal (Selected According to Customer Requirements)
Guide Roll Diameter 60(mm)
Winding Structure Single Station
Pressure Roll Cylinder Controlled
Winding Roll Diameter 260(mm)
Winding Motor Three-phase Torque Motor (Speed Control Motor)
Winding Shaft Structure Pneumatic Expansion Shaft
Electrical Cabinet Intelligent Dual Digital Temperature Meter (Solid State)
Electrical Components CHNT
Machine Frame Single-layer Platform (Square Tube 120*120)
Overall Dimensions L5000*W2800*H3900-5200
