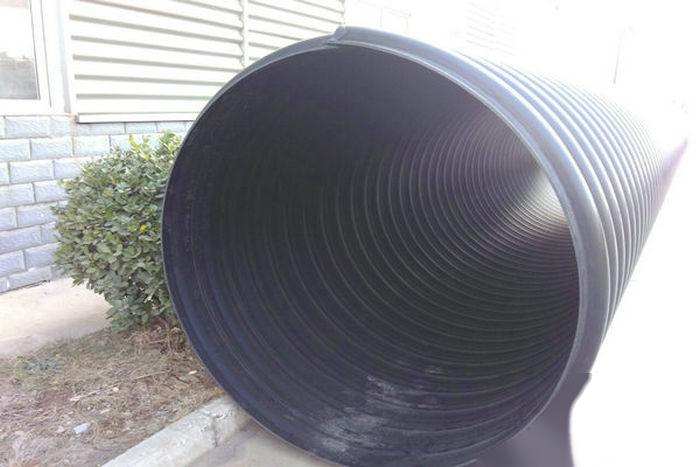

High-Density Steel Belt Polyethylene Winding Corrugated Pipe Luoyang Guorun New Material Technology Co., Ltd. is a large-scale pipe production enterprise supported by internationally advanced technology. The company mainly produces ultra-high molecular pipes, escape pipes, HDPE steel belt pipes, steel belt winding corrugated pipes, steel belt reinforced polyethylene spiral corrugated pipes, HDPE steel belt corrugated pipes, and various other pipe products. Over the years, the company has won a good reputation with stable product quality and standardized service levels. The company adheres to the business philosophy of "Integrity, Efficiency, Cooperation, and Safety," providing comprehensive and thoughtful services for users throughout the entire process from production storage and transportation to installation testing and quality maintenance with a scientific and rigorous attitude, strict quality standards, and efficient and convenient service methods. You are welcome to visit our factory for inspection! For business inquiries, please contact Manager Sun at 13698887149! **High-Density Steel Belt Polyethylene Winding Corrugated Pipe Product Performance:** 1. **Impact Resistance**: The pipe wall adopts a 'U' shape structure, which is impact-resistant and pressure-resistant, remaining unbroken even under ground subsidence conditions, and has strong recovery after deformation, making it adaptable to various foundations. 2. **Cold Resistance**: The pipe will not freeze or expand to leak water in environments as low as -60℃. 3. **Chemical Resistance**: It is not contaminated or corroded by wastewater and chemicals and is not corroded by decaying materials in the soil. 4. **Aging Resistance**: The pipe is usually black and can withstand direct sunlight during storage and construction. 5. **Completely Reliable Ring Stiffness**: Due to the elastic modulus ratio of steel and plastic materials greater than 200 and weight ratio greater than 7.85, compared to pure plastic pipes, steel belt reinforcement easily provides sufficient safe and reliable ring stiffness and a relatively high stiffness-to-weight ratio, especially for large diameter pipes. 6. **Convenient Connection**: The pipes can be connected outside the trench and then pushed into the trench with an excavator, reducing engineering time and costs. 7. **Good Stability of Pipeline Systems**: The circular external rib structure of the pipe not only increases the ring stiffness but also has a root resistance effect, solving the tension and top well problems caused by longitudinal displacement of the pipe. 8. **Low Friction Coefficient**: The pipes have a low friction coefficient, providing strong medium transportation capacity. 9. **Smooth Interior**: The internal surface is smooth, resulting in low friction resistance and fast drainage speed. 10. **Non-toxic and Recyclable**: Polyethylene itself is a non-toxic, recyclable material that does not pollute the environment. 11. **Excellent Drainage Permeability**: The smooth interior reduces friction, leading to fast drainage speed. Steel belt corrugated pipes have smooth inner walls and a corrugated outer wall (with shapes such as right angles, trapezoids, sine waves, etc.), formed by simultaneous extrusion of the corrugated outer wall and a smooth inner wall. **High-Density Steel Belt Polyethylene Winding Corrugated Pipe Construction Steps**: Trenching - Lowering Pipe - Connecting - Backfilling 1. **Trenching for the Pipe**: - The pipe should be laid on the original soil foundation or a compacted foundation after trenching. When the pipe is under a roadway, the soil cover over the pipe must be greater than 0.7m. The trench width should ideally be the outer diameter of the pipe plus 0.6m. - When the pipe crosses obstacles such as railways or roads, protective casings made of reinforced concrete, steel, or cast iron should be installed. 2. **Lowering the Pipe and Connection**: - For socket installation, the socket should face downstream and the spigot upstream, installed sequentially from low points to high points. - Manual installation is recommended, and lengths can be cut with a hand saw, ensuring that the cut surface is perpendicular and smooth. - During joint operations, the inner (outer) surface of the socket (spigot) should be cleaned, aligning the center of the spigot with the centerline of the socket. 3. **Connection with Inspection Wells**: - Use flexible connections; when requirements are not high, the pipe can be directly built into the well wall. 4. **Air Tightness and Water Tightness Tests**: - The seal test should be conducted after compacting the sand backfill at the pipe bottom and extrusion angles, selecting either air or water tightness testing based on site conditions. 5. **Backfilling the Pipe**: - After the pipe installation is qualified, backfilling should be done immediately. The trench should be backfilled symmetrically from both sides of the pipe line and inspection wells, taking necessary positioning measures to ensure that the structure does not shift. - From the bottom of the pipe foundation to the top of the pipe (0.7m), manual backfilling is required; for areas above 0.7m, mechanical backfilling can be done simultaneously from both sides of the pipe axis, followed by compaction and rolling. **Advantages of Steel Belt Reinforced Polyethylene Corrugated Pipe Construction**: 1. No need for a concrete pipe base during use; excavation, lowering the pipe, and backfilling can be done simultaneously, greatly shortening the construction period and reducing costs. 2. The trench width for the pipe is reduced by 20% compared to other pipe materials and does not require sloped walls, significantly reducing the amount of earthwork, saving labor, and decreasing construction difficulty and labor intensity. 3. Since the pipe is buried underground, the combined action of the pipe and soil can improve the pipe’s compressive strength; backfilling must be carried out according to requirements. **High-Density Steel Belt Polyethylene Winding Corrugated Pipe Collaboration Projects**: - Zhengzhou Airport Municipal Project Department - Tianjin Airport Logistics Center Project Department - Henan Sanmenxia Steel Plant Pipeline Project Department - Qingdao Sewage Treatment Pipeline Project Department - Qingdao Jimo Sewage Treatment Pipeline Project Department - Linyi Cangshan Sewage Treatment Pipeline Project Department - Hangzhou Municipal Sewage Pipeline Project Department - Henan Zhoukou Municipal Industrial Park Sewage Treatment Project Department **Sales Contact**: Manager Sun at 136-9888-71491.
