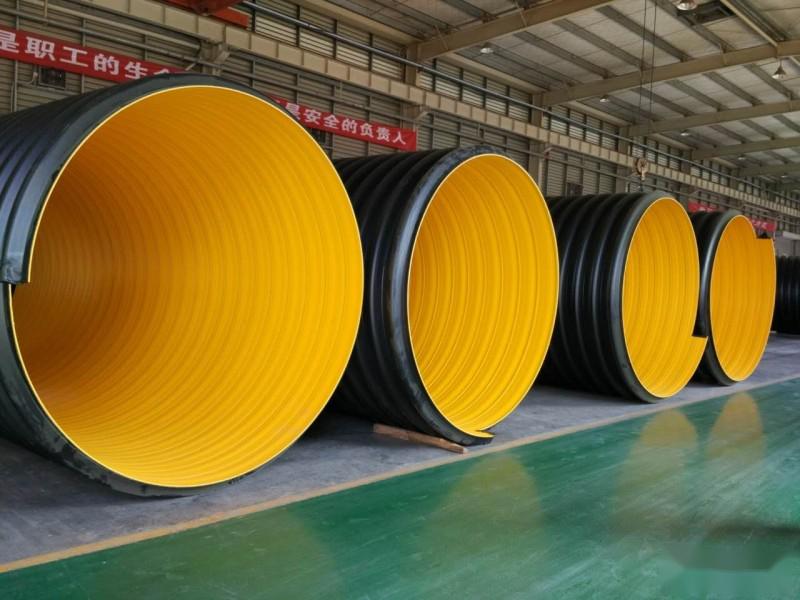

Steel Strip Reinforced Polyethylene Spiral Corrugated Pipe

Steel strip corrugated pipe professional manufacturer-Luoyang Guorun Pipe Industry Co., Ltd. is a professional manufacturer of steel strip corrugated pipe. Quality determines success or failure. The products we provide are our great motivation and goal..

   One, What isSteel Strip Reinforced Polyethylene Spiral Corrugated Pipe

     Steel strip corrugated pipe, also known as steel strip reinforced polyethylene spiral corrugated pipe, is a winding structural wall pipe composed of a high-density polyethylene (PE) matrix (inner and outer layers) and a surface-coated adhesive resin steel strip. The pipe wall structure consists of three layers: the inner layer is a continuous solid wall PE inner pipe, wrapped with a circular corrugated steel strip reinforcement (formed with steel plate as a "V" shape), and the outer layer is compounded with polyethylene, thus forming a complete spiral corrugated pipe. The elastic modulus of steel is nearly 200 times that of polyethylene. The combination of metal and plastic obviously achieves the ideal method of high rigidity and low consumption, which can organically combine the high rigidity and high strength of steel with the corrosion resistance, wear resistance, and flexibility of plastic, play the advantages of both sides, make up for the shortcomings of both sides, and achieve high performance and low cost unity.
        The steel strip reinforced spiral corrugated pipe combines the advantages of steel and plastic. The steel strip is pressed into a nearly "U" shaped steel bar and wrapped between the inner and outer layers of hot-melt polyethylene. The high rigidity, high strength of steel and the flexibility, corrosion resistance, and wear resistance of polyethylene are combined, which can make the pipe reach the SN8, SN12.5, SN16 three levels of ring stiffness, solve the corrosion resistance problem of steel, and break through the limitation that large-diameter all-plastic buried drainage pipes can only reach SN8.

Two, Steel Strip Reinforced Polyethylene Spiral Corrugated PipeProduct Applications:

  1, Municipal engineering: used for municipal underground drainage, sewage drainage, rainwater collection, water supply, ventilation, etc.

   2, Electrical and telecommunication engineering: as protective pipes for power cables, optical cables, communication signal cables.
   3, Industrial: Due to the excellent acid, alkali, and corrosion resistance of polyethylene and polypropylene materials, double-wall corrugated pipes are widely used in farmland, orchards, tea plantations, and forest belts for thermal power drainage and irrigation, saving water by 70%, and saving electricity by 13.9%, and can also be used for rural water improvement and irrigation pipes.
        4, Road public works: can be used as seepage and drainage pipes for railways, highways, golf courses, football fields, etc.

 Three, Steel Strip Reinforced Polyethylene Spiral Corrugated PipePerformance Features:
        1, The pipeline material is corrosion-resistant PE material, which will not be corroded by acid, alkali, oil, and other substances in sewage and waste water.
        2, The product is a flexible pipeline. When subjected to external impact force, it has excellent shape recovery performance, and is not easy to rupture even under foundation settlement.
        3, The basic properties of the pipeline can be effectively used at 20℃ for more than 50 years, so the pipeline has strong anti-aging properties.
        4, In an environment of -60℃, the pipe will not freeze or leak.
        5, The weight of the pipe is only 1/8 of the same specification concrete pipe, and 2/3 of the traditional wound plastic structure pipe, which is easy to transport, easy to construct, and does not require large construction equipment.
        6, The pipe is light in weight, easy to connect, and does not require high requirements for open excavation projects. In urban drainage engineering construction, it can save a lot of engineering time and costs.
        7, Various and simple connection methods, easy and quick construction on-site.
        8, The pipe has low friction coefficient and strong medium conveying capacity.
        9, Smooth interior, low friction resistance, fast drainage speed.
        10, Polyethylene itself is a non-toxic and recyclable material that will not pollute the environment.

   11, Superior drainage flow: smooth interior, reduced friction, fast drainage speed Steel strip corrugated pipe refers to a plastic pipe with a smooth inner wall and a corr
