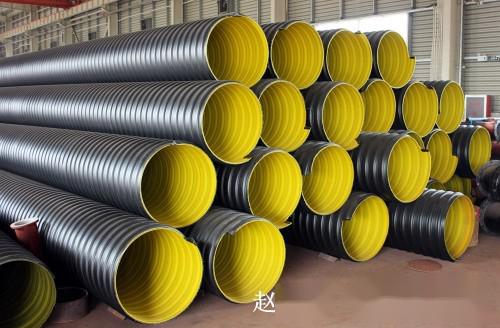

Luoyang Steel Belt Corrugated Pipe Manufacturer

It adopts U-shaped steel belt composite PE material, significantly improving the ring stiffness of the pipe without increasing costs, and its strength is greatly enhanced compared to winding pipes and Kela pipes at the same weight. It can solve a series of issues such as heavy load, and the advantages of large diameter pipes are even more evident. Currently, the production pipe diameters range from DN300mm to DN2400mm, with ring stiffness maintained above 8KN/m2, lighter than cement pipes and other plastic pipes, with higher strength.

The composite of each layer is performed in a molten plastic state; it is completely different from the secondary melting forming of winding pipes (hollow wall pipes), thus ensuring complete adhesion between layers, resulting in very high bonding strength.

The surface of the steel belt undergoes special pre-treatment to enhance the corrosion resistance of the steel and the adhesion between the steel and plastic, improving the peeling strength. The pipes are formed by winding while the plastic raw materials are fully molten, making the overall structure of the pipes solid and reliable. By using special materials and processes, both the corrosion problem of the steel plate and the adhesion to PE material are solved, ensuring the service life of the pipes is comparable to that of pure plastic pipes, guaranteed to be over 50 years.

Various connection methods can be used, including electric fusion connections, heat shrink connections, internal and external extrusion welding, or multiple connection combinations, ensuring strong connections. Reliable connections can achieve zero leakage for the pipes. PE Henan Steel Belt Corrugated Pipe Manufacturer

Luoyang Steel Belt Corrugated Pipe Manufacturer Pipe Characteristics:

1. Chemical Resistance: Not contaminated, resistant to wastewater and chemical corrosion, and not corroded by decaying substances in the soil;

2. Impact Resistance: The pipe wall uses a 'U' shape structure, which is impact-resistant and pressure-resistant, does not crack under foundation settlement, and has strong resilience after deformation, showing good adaptability to the foundation;

3. Aging Resistance: The pipe is usually black and can withstand direct sunlight during storage and construction;

4. Cold Resistance: The pipe will not freeze crack or expand to leak water in -60℃ environments;

5. Lightweight: Easy to transport and convenient for construction, weighing 1/8 of cement pipes, requiring only an excavator for burial, without the need for large equipment;

6. Convenient Connections: Pipes can be connected outside the trench and then pushed into the trench with an excavator, reducing project time and costs;

7. Superior Wear Resistance: More wear-resistant than steel pipes and cement pipes, with strong capacity for transporting domestic wastewater and sludge;

8. Excellent Drainage Flow: Smooth interior reduces friction, allowing for fast drainage;

9. Economic Efficiency: Low construction, management, and maintenance costs;

10. Environmental Impact: HDPE is a non-toxic material, harmless to land and the environment, and can be recycled.

11. Good Stability of Pipe System: The circular external rib structure of Luoyang Steel Belt Corrugated Pipe Manufacturer not only increases the ring stiffness of the pipe but also has root resistance to solve the tension and top well problems caused by longitudinal displacement of the pipes.

12. Completely Reliable Ring Stiffness: Due to the elastic modulus ratio of the two materials being greater than 200 and the weight ratio being greater than 7.85, the steel belt reinforcement makes the pipes (especially large diameter pipes) have sufficient safety and reliability in ring stiffness and a relatively high stiffness-to-weight ratio compared to pure plastic pipes.

Luoyang Steel Belt Corrugated Pipe Manufacturer Application Fields:

Municipal Engineering: Underground drainage and sewage pipes;

Road Engineering: Drainage and seepage pipes for railways and highways;

Industry: Widely used for wastewater pipes in the industrial sector;

Construction Engineering: Rainwater pipes, underground drainage pipes, sewage pipes, and ventilation pipes for buildings;

Leachate collection pipes for landfills;

Large Ports and Docks: Drainage and sewage pipes for large airports, ports, and dock projects;

Sports Venues: Drainage pipes for golf courses, football fields, and other sports facilities;

Water Conservancy Projects: Water source pipes, irrigation pipes, and water transportation and drainage for hydropower stations;

Mining Sites: Ventilation, air supply, drainage, and slurry pipes for mines;

Communication Pipes: Communication protection pipes for railways and highways, communication cables, and fiber optic cables;

Water Storage Systems: Water storage systems that intercept slow water flow;

Agricultural Engineering: Drainage and irrigation for farmland, orchards, tea gardens, and forest belts;

Seawater Transport Pipes.

Contact Person:Manager Zhao

Mobile:18623755437
Telephone: 0379-60692512
Fax: 0379-65260950

Company Website: www.lygrsjw.com
Email: 874689613@qq.com
Factory Address: Henan Province, Luoyang City, Mengjin County, Matun Town, Zhejiang Business Industrial Park
Welcome to purchase our polyethylene pipes, we will provide you with excellent product services!
