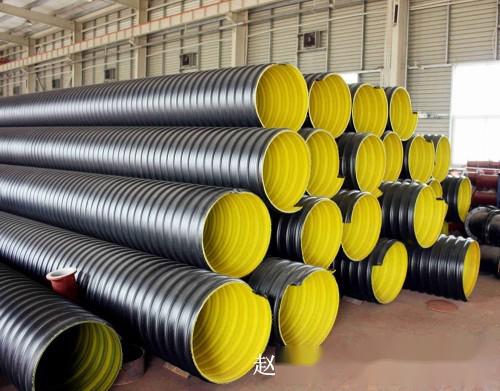

Kaifeng Steel Belt Corrugated Pipe

The prominent advantage of steel belt reinforced polyethylene spiral corrugated pipe is that it significantly saves materials and reduces costs while achieving high performance. Compared to fully plastic winding structure wall pipes, the material consumption of steel belt reinforced polyethylene spiral corrugated pipes will be reduced by half under the same diameter and ring stiffness, leading to even greater cost reductions. This is due to the fact that the elastic modulus of steel is more than 200 times that of polyethylene, and the ring stiffness achieved by pressing thin steel belts into steel ribs far exceeds the effect produced by a very thick polyethylene structural layer. In steel belt reinforced polyethylene spiral corrugated pipes, the role of polyethylene is to provide corrosion resistance and wear resistance, so the material used for steel ribs is minimal, and the amount of polyethylene used does not need to be much. Saving materials and reducing resource consumption is also a fundamental requirement for achieving sustainable development, benefiting both the development of enterprises and the protection of national environmental resources.

Kaifeng Steel Belt Corrugated Pipe Product Features:

1. Chemical Resistance: Not contaminated or corroded by wastewater and chemicals, and not corroded by decaying substances in the soil;

2. Impact Resistance: The pipe wall adopts a 'U' shaped structure, which is impact-resistant and pressure-resistant, and does not crack under foundation settlement; moreover, it has strong resilience after deformation and good adaptability to the foundation;

3. Aging Resistance: The pipe is usually black and can withstand direct sunlight during storage and construction;

4. Cold Resistance: The pipe will not crack or leak due to freezing or expansion in environments as low as -60℃;

5. Lightweight: Convenient for transportation and easy to install, weighing only 1/8 of that of concrete pipes, requiring only an excavator for burial, no large equipment needed;

6. Convenient Connections: The pipes can be connected outside the trench beforehand and pushed into the trench with an excavator, reducing project time and costs;

7. Excellent Wear Resistance: More wear-resistant than steel pipes and concrete pipes, with strong capability to carry domestic wastewater and waste;

8. Superior Drainage Flow: Smooth interior reduces friction, allowing for fast drainage;

9. Economical: Low construction, management, and maintenance costs;

10. Environmental Impact of Kaifeng Steel Belt Corrugated Pipe: HDPE is a non-toxic material, harmless to land and the environment, and can be fully recycled.

11. Good Stability of Pipeline System: The round external rib structure not only increases the ring stiffness of the pipe but also has a root resistance effect, solving the issues of tensile and top well problems caused by longitudinal displacement of the pipeline.

12. Completely Reliable Ring Stiffness: Due to the elastic modulus ratio of the two materials (steel and plastic) being greater than 200 and the weight ratio being greater than 7.85, compared to pure plastic pipes, steel belt reinforcement makes it easy for the pipes (especially large diameter pipes) to have sufficient and reliable ring stiffness and a relatively high stiffness-to-weight ratio.

Contact Person: Manager Zhao

Mobile: 18623755437
Phone: 0379-60692512
Fax: 0379-65260950

Company Website: www.lygrsjw.com
Factory Address: Zhejiang Business Industrial Park, Matun Town, Mengjin County, Luoyang City, Henan Province
Welcome to visit our factory and order pipes. We will provide you with excellent product service!
