Jiangsu XinXing Hai 30-Year Quality Guaranteed Figure-8 Stranded Outdoor Optical Cable

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials

Outdoor Optical Fiber Cable for Emerging Sea

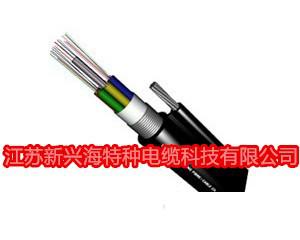

8-Zigzag Stranded Optical Fiber Cable (GYTC8A)

Product Description:

The structure of GYTC8S optical cable is to place a 250μm optical fiber in a high-modulus material made of a loose tube, and fill the loose tube with waterproof compound. The center of the cable core is a metal reinforcement core, and the loose tube (and filling rope) is twisted around the center reinforcement core to form a compact and circular cable core. The cable core is longitudinally wrapped with a layer of plastic-coated aluminum tape (APL) and integrated with a steel wire strand to form an 8-shaped polyethylene sheath.

Our company can also provide 8-shaped optical cables with Y sheath or S sheath, such as GYTC8Y, GYTC8S, etc., which are mostly used for self-supporting aerial installation.



Product Features:

1. Copper wire strand has extremely high tensile strength, which is convenient for self-supporting aerial installation and reduces installation cost

2. The optical cable has good mechanical performance and temperature characteristics

3. The loose tube material itself has good resistance to water decomposition and high strength

4. Filled with special grease inside the tube, providing critical protection for the optical fiber

5. Measures are taken to ensure the waterproof performance of the optical cable: 1 single steel wire central reinforcement core; 2 loose tube filled with special waterproof material; 3 fully filled cable core; 4 plastic-coated aluminum tape (APL) moisture barrier



Product Standards:

Comply with YD/Y 1155-2001 and IEC 60794-1 standards



Temperature Information:

Storage and operating temperature: -40℃ to +70℃



Product Structure Diagram:



8-Zigzag Stranded Optical Fiber Cable (GYXTC8S)

Product Description:

GYXTC8S type optical cable is a central tube loose tube filling type, steel-polyethylene bonded sheath, 8-shaped self-supporting outdoor communication optical cable



Product Features:

1. Full-section waterproof, ensuring good waterproof and moisture-proof performance

2. The loose tube is filled with special grease, providing critical protection for the optical fiber

3. Longitudinal steel strip enhances the cable's resistance to lateral pressure

4. The 8-shaped self-supporting structure has high tensile strength, making it easy for aerial installation and low installation cost

5. Product service life is over 30 years



Product Standards:

Comply with YD/Y 1155-2001 and IEC 60794-2-1 standards



Temperature Information:

Storage and operating temperature: -40℃ to +70℃



Product Structure Diagram:
