Hdpe Sand Suction Pipe

      In river channel cleaning, dredging projects, reclamation projects, sand extraction projects, land reclamation projects, port expansion projects, and navigation channel dredging projects involving sediment slurry transportation, the continuous operation of sand suction equipment and the subsequent transportation through pipes to designated locations rely heavily on HDPE sand suction pipes.
      The transmission of sediment through HDPE sand suction pipes varies in distance according to project requirements. As long as the outlet of the sand discharge equipment is properly connected to the pipeline, it can continuously discharge sediment. The downside is the selection of the pipeline, as it determines the continuity of work, especially in harsh environments where pipeline requirements are stricter.

Characteristics of HDPE Sand Suction Pipe
1. Lightweight, only one-eighth the weight of steel pipes; flanged connections make installation and disassembly convenient, shortening construction time and improving efficiency.
2. Good flexibility and elasticity, the pipe wall does not crack when bent; pipes connect directly and can bend in water, performing well against wind and waves; on land, they can connect directly in areas with uneven surfaces within 30 degrees without needing to level the ground.
3. Abrasion resistance is 4-8 times that of steel pipes, resulting in a longer service life; the material of the pipes is UV resistant and aging resistant.
4. Lengths of 8-12 meters, or customized according to customer requirements; each pipe has movable metal flanges at both ends, and pipes connect directly using bolts; ensures that the pipe ends maintain their shape, do not crack, and do not leak during long-term installation and disassembly, ensuring high efficiency in transportation.
5. The inner and outer walls of the pipes are smooth, with a low friction coefficient, resulting in 20-30% higher transportation efficiency than steel pipes.
6. Whether used on land or in water for an extended period, they are cost-effective and safer.
Our company specializes in the research and production of sediment slurry transportation pipelines. The ultra-high wear-resistant pipes we produce are widely used in mining, metallurgy, and ports, as well as in rivers and lakes such as the Yellow River and the Yangtze River.

Advantages of HDPE Sand Suction Pipe
1. Abrasion resistance. High abrasion resistance with strong sealing; the inner layer is made of wear-resistant rubber.
2. Impact resistance. Mitigates the impact force on the hull, providing good elasticity.
3. Good toughness. Fatigue resistant and bend resistant. Excellent bending capability, able to bend to 60° at 2 meters, resistant to wind and waves, demonstrating good flexibility.
4. Weather resistance. Good weather resistance, not easily oxidized or burst.
5. Pressure resistance. Negative pressure: 15kg; positive pressure: 10kg.
6. Strong adhesion. Good adhesion, not easily delaminated, convenient for installation and use.

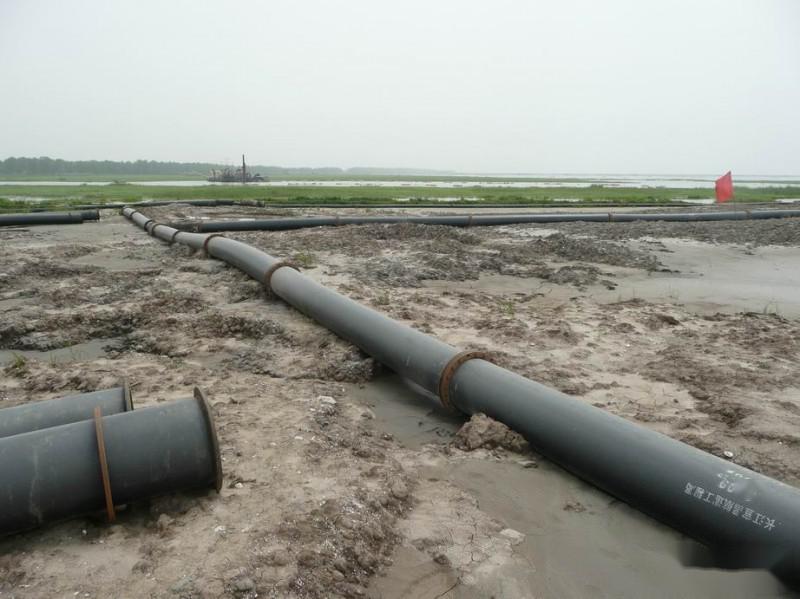

Examples of Projects Using HDPE Sand Suction Pipes
10-inch HDPE sand suction pipe, 500 meters, Nanning Sand and Stone Company, Guangxi
12-inch HDPE sand suction pipe, 1000 meters, Luang Prabang Hunan Sand and Stone Co., Ltd.
20-inch HDPE sand suction pipe, 500 meters, Zhoushan Wanrong Shipping Company
Hong Kong Chuangyi Shipping Company sand suction pipe project (1000m Φ300 HDPE sand suction pipe Φ700*1200mm buoy)
Tianying Junlian Marine Engineering Technology Co., Ltd. (1000 meters Φ159 HDPE sand suction pipe and Φ500 buoy)
