Product Features

1、Material Characteristics

CPVC power pipe is mainly made of heat-resistant and excellent insulating PVC-C resin. CPVC products are currently recognized as green and environmentally friendly products, and their excellent physical and chemical properties are increasingly valued by the industry.

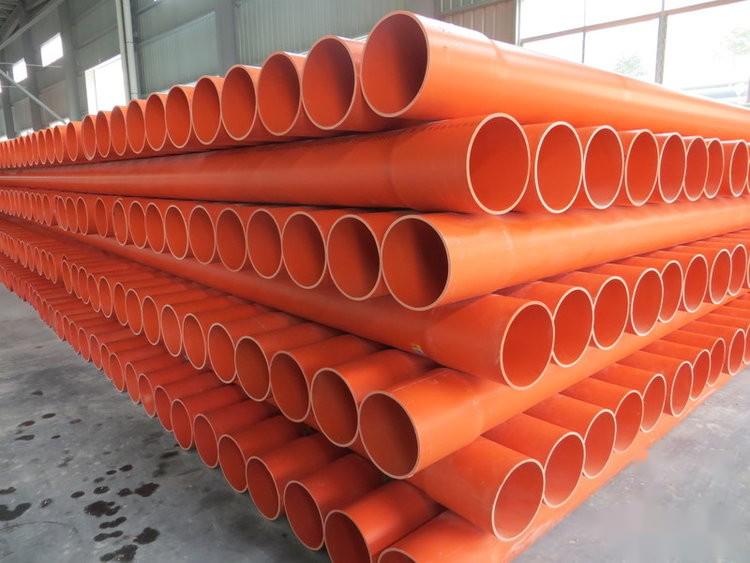

CPVC power pipe is a rigid solid wall pipe with smooth inner and outer walls, orange-red in color, bright and eye-catching.

2、Heat Resistance

CPVC power pipe has a 15°C higher heat resistance temperature than ordinary UPVC double-wall corrugated pipe, can maintain its shape above 93°C, and has sufficient strength.

3、Insulation Performance

CPVC power pipe can withstand over 30,000 volts of high voltage.

4、Compression Performance

Through material modification, the ring stiffness of CPVC power pipe reaches 10KN, significantly higher than the national regulations for buried plastic pipes, which require a ring stiffness of over 8KN.

5、High Impact Strength

CPVC power pipe can withstand a 1kg heavy hammer impact at a height of 2m at 0°C, fully demonstrating the material's low-temperature impact resistance suitable for construction site requirements.

6、Flame Retardant Performance

Both PVC and PVC-C materials have good flame retardant performance and can extinguish when away from fire. Especially PVC-C material, due to its significantly higher chlorine content than PVC, has a more obvious improvement in flame retardancy and smoke density index.

7、Installation Performance

CPVC power pipe is light in weight, high in strength, and easy to install. It can be excavated and buried at night, backfilled with road surface, and normal traffic can resume during the day. The elastic sealing rubber ring socket connection is used, making installation and connection convenient, quick, and with good sealing performance, preventing water leakage and effectively protecting the safe use of power cables.

8、Long Service Life

CPVC power pipe is corrosion-resistant, aging-resistant, and can have a service life of more than 50 years.

Product Introduction:

CPVC power cable protection pipe is mainly made of CPVC resin, with added impact modifiers, stabilizers, and other additives. Therefore, CPVC power pipe is more resistant to high pressure, external pressure, and high temperature.
