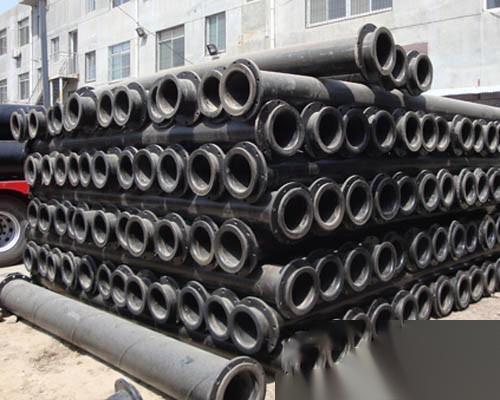

Chongqing Sand Pump Pipe, Sand Pump Pipe Manufacturer, Sand Pump Pipe Price

LuoYang GuoRun Pipe Industry Co., Ltd. specializes in manufacturing wear-resistant pipes for offshore sand dredging vessels, ultra-high molecular weight polyethylene pipes, wear-resistant pipes, and tailings pipes. Wear-resistant pipes for offshore sand dredging vessels are widely used in metallurgy mines (slurry transportation, grouting backfill), electricity (fly ash transportation), dredging sand (sludge transportation for lake dredging, sand pump pipes for sand dredging vessels), petroleum, natural gas, textiles, papermaking, chemical industry, machinery, electrical and other industries. Chongqing sand pump pipes can be used for transporting various highly corrosive and high-wear liquids or solid-liquid mixtures, such as various acid liquids, alkaline liquids, crude oil, tailings, slurries, coal-water slurry and ash discharge, slag discharge from power plants, etc. Ultra-high molecular weight polyethylene pipes are continuously extruded and formed using special extruders and specially designed molds. Chongqing Sand Pump Pipe has excellent comprehensive performance, wear resistance, low-temperature resistance, corrosion resistance, self-lubrication, and impact resistance, which are high values among all plastics. Its wear resistance is superior to materials such as polytetrafluoroethylene, nylon, and carbon steel, and it can work for a long time under conditions of -169 to +80°C, earning the title of 'amazing' engineering plastic!
    In river cleaning, dredging projects, filling projects, sand extraction projects, land reclamation projects, port expansion projects, and navigation channel dredging projects, the continuous operation of suction dredging equipment is essential, and the transport of sludge through pipelines cannot be overlooked. The transport of sludge through pipelines varies in distance according to project requirements. As long as the outlet of the sand discharge equipment is connected properly, it can work continuously to discharge sludge. The choice of pipelines is crucial as it determines the continuity of work, especially in harsh environments where pipeline requirements are stricter. Currently, dredging slurry pipelines include metal spiral welded pipes, metal seamless pipes, cast iron pipes, nylon pipes, PVC pipes, and plastic pipes.

Iron pipes----- have been commonly used in the dredging industry in recent years, with butt-welded iron pipes or spiral welded pipes being more common. The disadvantage is that the pipe wall is thin, and after about 3 years, the pipelines rust and age severely, especially in water, and are significantly affected by pressure, wind, waves, water corrosion, and other comprehensive factors, leading to serious damage and frequent repairs. Nowadays, considering cost, some large equipment and pump vessels still use large-diameter metal pipelines. Cast iron pipes have the advantage of thick walls and long service life, but the disadvantages include heavy weight, high total project cost, and inconvenience in installation and transportation.

PVC pipes----- are generally used for building drainage. They are rarely used in dredging sand projects, as they are not pressure-resistant, not cold-resistant, cannot be used in water, and the material itself is rigid and cannot be bent, typically used for lower pressure and smaller diameter pipelines on land. Nylon pipes----- have slightly better performance than PVC pipes. Although the strength has increased, the flexibility is poor, and resistance to wind and waves is inadequate. The major weakness remains the poor impact resistance; heavy objects can cause damage, so they can only be used on land for short distances and short times.

Plastic pipes----- include ordinary polyethylene pipes, which are blue-striped and mainly used for underground drinking water transportation; the other type is high-strength polyethylene plastic pipes, which are suitable for mud and sand engineering transport.

Chongqing Sand Pump Pipe specific performance is as follows: lightweight, good flexibility, high strength, elastic, pipe walls can withstand bending, compression, and internal and external impacts without breaking; can bend in water, good resistance to wind and waves; land connection is possible directly in areas with undulating surfaces within 30 degrees; strong wear resistance, longer service life; pipe materials have strong corrosion resistance, UV resistance, and aging resistance; pipes are connected directly with bolts through flanges; the inner and outer walls of the pipe are smooth, with minimal friction coefficient, and the transportation efficiency is 20%-30% higher than that of steel pipes; whether used on land or in water for long periods, low cost, high efficiency, safer, and more convenient.
Chongqing Sand Pump Pipe Engineering Cases:

1, Guangxi Nanning Sandstone Company10 inch sand pump pipeline500 meters .

2, Luang Prabang Hunan Sandstone Co., Ltd. 12 inch sand pump, 1000 meters .

3, Zhoushan Wanrong Shipping Company 20 inch sand pump pipeline, 500 meters .
4, Export to Singapore 8 inch sand pump, 2000 meters .
5, Hong Kong Chuangyi Shipping Co., Ltd. sand pump ( 1000m 12 inch sand pumpΦ700*1200mm buoy).
6, Tianjin Junlian Marine Engineering Technology Co., Ltd. 1000 meters6 inch sand pump and Φ500*800mm buoy).
7, Tianjin Hongda Dredging Co., Ltd. (2300 meters12 inch sand pump and Φ1100*1100mm buoy).
8, GAMLA(Nigeria) Co., Ltd. (produced in South Africa 1500 meters8 inch sand pump and buoyΦ500*800mm).

Contact Person:Manager Zhao

Mobile:18623755437
Phone: 0379-60692512
Fax: 0379-65260950

Company Website: www.lygrsjw.com
Email: 874689613@qq.com
Factory Address: Zheshang Industrial Park, Matun Town, Mengjin County, Luoyang City, Henan Province
Welcome to visit our factory and order pipes, we will sincerely provide you with our product services!
