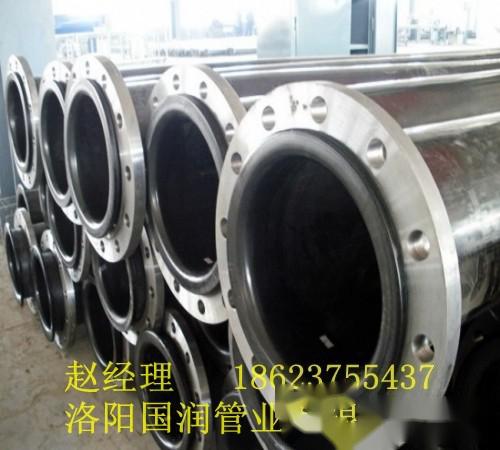

Beihai Sand Suction Pipe in Guangxi

According to statistics, the average annual sediment accumulation in the Yellow River in China is approximately 400 million tons. The task of dredging and sediment management is extremely heavy. Similarly, other inland rivers and harbors in China also require dredging and sediment management. Generally, each dredging vessel needs to be equipped with 4km of sediment transport pipes. Due to the rusting, rapid wear, and heaviness of steel pipes, as well as the difficulty in loading and unloading, it has become an inevitable trend to replace traditional steel pipes with UHMWPE lined composite pipes. Currently, there are over 1000 dredging vessels in China, and the demand for ultra-high molecular weight polyethylene (UHMWPE) lined composite pipes is considerable if all are equipped accordingly.

The performance of the Beihai Sand Suction Pipe in Guangxi determines its application:

1. The molecular weight of the sand suction pipe reaches over 2.5 million, and its wear index is low, giving it extremely high anti-sliding friction capability. Its wear resistance is more than 6.6 times that of ordinary alloy steel and 27.3 times that of stainless steel. It is 17.9 times that of phenolic resin, 6 times that of nylon six, and 4 times that of polyethylene, significantly increasing the service life of the pipes.
2. The sand suction pipe has extremely high impact resistance.

In the existing engineering plastics, this product exhibits a high impact toughness value. Many materials may crack, break, or suffer surface stress fatigue under severe or repeated explosive impacts. This product undergoes cantilever beam impact tests according to GB1843 standards, achieving no damage and can withstand strong external impacts, internal overload, and pressure fluctuations.

3. The sand suction pipe has excellent corrosion resistance.

UHMW-PE has a saturated molecular structure, resulting in extremely high chemical stability. This product can resist the erosion of strong chemical substances, with only minor corrosion from certain strong acids at high temperatures. It is not corroded in other alkaline or acid solutions. It can be applied in concentrations lower than 80%, and its performance remains stable in concentrations lower than 75% and 20% nitric acid.

4. The Beihai Sand Suction Pipe has good self-lubricating properties.

This product contains wax-like substances and has excellent self-lubrication. The friction coefficient (196N, 2 hours) is only 0.219MN/m (GB3960). Its sliding performance surpasses that of steel or brass lubricated with oil. Especially in harsh environments with dust and sediment, the self-dry lubrication properties of this product are more fully demonstrated. It not only allows for smooth movement but also protects related components from wear or scratches.

5. The sand suction pipe has unique low-temperature resistance.

This product has excellent low-temperature resistance, with its impact resistance and wear resistance remaining virtually unchanged at temperatures as low as -269 degrees Celsius. It is currently an engineering plastic that can operate at near-zero temperatures. Additionally, it has a wide temperature suitability, capable of functioning long-term in temperatures ranging from -269℃ to 80℃.

6. The sand suction pipe is not prone to scaling.

Due to its low friction coefficient and non-polarity, this product has excellent surface non-adhesion and high smoothness. Existing materials typically scale in media with a pH value above 9, but this product does not scale, which is significant for coal-fired power plants using it in fly ash discharge systems. It is also very suitable for crude oil, slurry, and other transport pipelines.

7. The sand suction pipe has a long service life.

The unsaturated genes in the molecular chain are few, with a fatigue resistance greater than 500,000 cycles, excellent resistance to environmental stress cracking (>4000h), more than 2 times that of PE100, and can maintain over 70% of its mechanical performance even after around 50 years of underground use.

8. The Beihai Sand Suction Pipe is easy to install.

The ultra-high molecular weight polyethylene (UHMW----PE) pipes have a unit pipe weight that is only one-eighth that of steel pipes, making loading, unloading, transportation, and installation more convenient, and reducing labor intensity for workers. The UHMW-PE pipes have extremely strong anti-aging properties, lasting for 50 years without aging. They can be installed above ground or buried underground. During installation, both welding and flange connections are possible, ensuring safety, reliability, and convenience without corrosion prevention, saving labor and effort, and fully demonstrating the advantages of using ultra-high molecular weight polyethylene pipes as “energy-saving, environmentally friendly, economical, and efficient.”
9. Other characteristics:

This product also features excellent energy absorption, noise reduction, anti-static properties, shielding capabilities against electronics, water resistance, light weight, easy machinability, and colorability.

Beihai Sand Suction Pipe in Guangxi - Project Cases:

1. Nanning Sand and Gravel Company in Guangxi - 10-inch sand suction pipeline, 500 meters.

2. Luang Prabang Hunan Sand and Gravel Co., Ltd. - 12-inch sand suction pipeline, 1000 meters.

3. Zhoushan Wanrong Shipping Company - 20-inch sand suction pipeline, 500 meters.
4. Export to Singapore - 8-inch sand suction pipeline, 2000 meters.
5. Hong Kong Chuangyi Shipping Company - sand suction pipe (1000m  12-inch sand suction pipe Φ700*1200mm float).
6. Tianjin Junlian Shipbuilding and Marine Engineering Technology Co., Ltd. - 1000 meters 6-inch sand suction pipe and Φ500*800mm float).
7. Tianjin Hongda Dredging Co., Ltd. - (2300 meters 12-inch sand suction pipe and Φ1100*1100mm float).
8. GAMLA (Nigeria) Ltd. (produced in South Africa) - 1500 meters 8-inch sand suction pipe and float Φ500*800mm.
