Product Name: KVVP22 Armored Shielded Control Cable
Model: KVVP22
Specification: 4*4
Voltage: 0.45/0.75KV
Transportation Method: Logistics or dedicated vehicle transportation

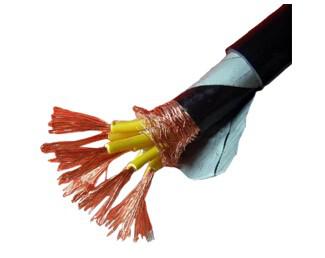

KVVP22 Copper Core Steel Tape Armored Shielded Control Cable
Introduction
Product Standards This product is manufactured according to GB9330 "Plastic Insulated Control Cable", IEC60227 "PVC Insulated Cables for Rated Voltage 450/750V and Below", and IEC60502 "Power Cables with Extruded Insulation and Accessories for Rated Voltages 1-30kV".
Scope of Application PVC insulated and PVC sheathed control cables are suitable for wiring control, signal, protection, and measurement systems with rated voltages of 450/750V and below.
Description
1. The rated power frequency voltage Uo/U is 450/750V.
2. The allowable long-term working temperature of the cable conductor is 70℃.
3. The ambient temperature during cable laying should not be lower than 0℃. If the ambient temperature is below 0℃, the cable should be preheated.
4. The recommended minimum bending radius for the cable is as follows:
5. For non-armored cables, it should not be less than 6 times the outer diameter of the cable;
6. For armored or copper tape shielded cables, it should not be less than 12 times the outer diameter of the cable;
7. For shielded flexible cables, it should not be less than 6 times the outer diameter of the cable.
KVVP22 Armored Shielded Control Cable Price
The price of the cable varies depending on the model, and different specifications also have different prices. For inquiries about the price of KVVP22 Armored Shielded Control Cable, please click online consultation or call the free hotline 13891818668/15929561136 for communication. We will answer your questions promptly! The above content is provided by Xi'an Huitong Wire and Cable http://www.xahtxl.com/.
