8 Inch Mud Pipe
Luoyang Guorun Pipe Industry Co., Ltd. specializes in the production of ultra-high molecular weight polyethylene pipes, wear-resistant pipelines, tailings pipelines, and sand dredging pipelines. These products are widely used in industries such as metallurgy and mining (slurry transportation, grouting backfilling), electricity (fly ash transportation), dredging and sand extraction (mud transportation for lake dredging, suction pipes for sand dredging vessels), petroleum, natural gas, textiles, papermaking, grain processing, chemicals, machinery, and electrical engineering.
Ultra-high molecular weight polyethylene 8 inch mud pipe characteristics:
1、Lightweight, only one-eighth the weight of steel pipes; flange connection for easy installation and disassembly, reducing startup time and increasing efficiency.
2、Good flexibility and elasticity, the pipe wall does not crack when folded; can bend in water, with good resistance to wind and waves; the connection of the concave and convex surfaces can be installed without leveling the ground in a 30 degree area.
3、Wear resistance is 4-8 times that of steel pipes, providing a longer service life; the pipe material is UV resistant and anti-aging.

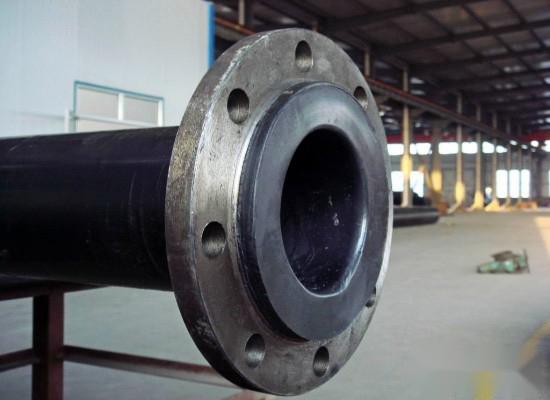

4、Length of 6-12 meters, or custom-made as required; both ends are equipped with movable flanges that can be directly connected with bolts, ensuring that the pipe ends do not deform, crack, or leak during long-term installation and disassembly, ensuring high efficiency in transportation.
5、The inner and outer walls of the pipe are smooth, with a low friction coefficient, resulting in a transportation efficiency that is 20-30% higher than that of steel pipes.
6、Cost-effective and safer for long-term use, both on land and in water.
Beijing Nonferrous Metallurgy Design and Research Institute "Research Report on Plastic Pipe Wear Testing Results"
The following four types of pipes made of different materials were tested under the same pipe diameter, flow rate, test materials, and concentration conditions. The average annual wear thickness:
1、Fiberglass reinforced polypropylene pipe average annual wear thickness 11.5424mm/year;
2、Engineering grade polypropylene pipe (PP) 13.5828mm/year;
3、Ultra-high molecular weight polyethylene pipe (UHMW---PE) 5.0104mm/year;
4、Steel pipe 36.2424mm/year;
The test results show that the wear resistance of ultra-high molecular weight polyethylene (UHMW-PE) pipes is more than seven times that of steel pipes, demonstrating the unique molecular structure of ultra-high molecular weight polyethylene that provides excellent resistance to sliding wear.
Engineering Project Cases:
1、Nanning Sand and Gravel Company in Guangxi 10 inch sand extraction pipeline 500 meters
2、Luang Prabang Hunan Sand and Gravel Co., Ltd. 12 inch sand extraction pipe, 1000 meters
3、Zhoushan Wanrong Shipping Company 20 inch sand extraction pipeline, 500 meters
4、Export to Singapore 8 inch mud pipe, 2000 meters
5、Hong Kong Chuangyi Shipping Co., Ltd. sand extraction project (1000m Φ300 mud pipe Φ700*1200mm buoy)
6、Tianjin Junlian Marine Engineering Technology Co., Ltd. 1000 meters 8 inch mud pipe and Φ500*800mm buoy)
7、Tianjin Hongda Dredging Co., Ltd. (2300 meters Φ325 mud pipeline and Φ1100*1100mm buoy)
8、GAMLA Ltd. (producing 1500 meters Φ200 sand extraction pipe and pipeline buoy Φ500*800mm)
