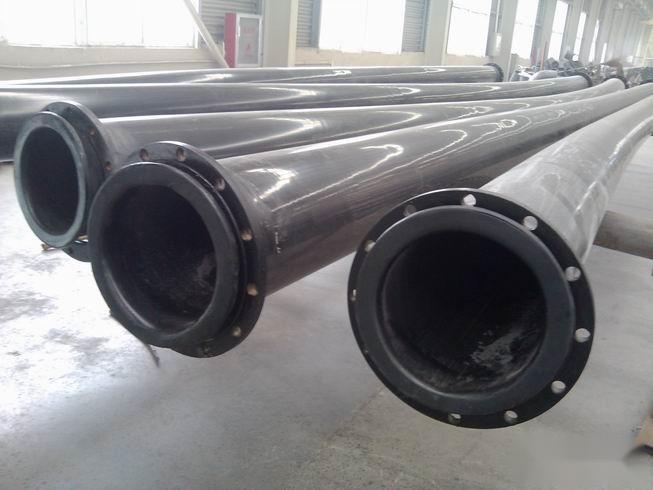

6 Inch Slurry Pipe

The material of the sand suction pipeline produced by our company is ultra-high molecular weight polyethylene. Ultra-high molecular weight polyethylene (UHMW-PE PIPE) refers to linear polyethylene (PE) with a molecular weight of over 1.5 million (our company’s ultra-high molecular weight average is over 2.5 million). As a new type of engineering plastic pipe with excellent comprehensive performance, ultra-high molecular weight polyethylene wear-resistant pipes have broad market potential in conveying various powders, slurries, fluids, and gases. They can solve serious wear, corrosion, and scaling problems in the transportation of large quantities of diverse industrial materials.

6 Inch Slurry Pipe Features:

1、Lightweight Sand Suction Pipeline   Only one-eighth the weight of steel pipes; connected by movable flange bolts, easy to install, disassemble, and transport, reduces start-up time and improves efficiency. After external damage, repairing and replacing pipeline sections saves costs.

2、Good Toughness of Sand Suction Pipeline    High tensile strength, elastic under stress, the pipe wall does not crack under internal and external forces; pipes can be directly connected in water, 4-8 pipes can bend 360 degrees, excellent resistance to wind and waves; on land, connections can be made directly in uneven areas within 30 degrees without needing to level the ground.

3、Strong Wear Resistance of Sand Suction Pipeline    4-8 times that of steel pipes, longer service life; the pipe material has strong corrosion resistance, it can be soaked in seawater for 50 years without any change; UV resistant and anti-aging, can be used for 5-8 years depending on the amount of sand.

4、Easy Installation of Sand Suction Pipeline     Both ends of the sand suction pipe are equipped with movable metal flanges; the entire finished pipe has no welds, and pipes are connected directly using bolts through movable flanges; the pipe mouth is lined with a steel ring to ensure that the pipe mouth does not deform or crack during long-term installation and disassembly, preventing leaks and ensuring high efficiency in the delivery project.

5、Low Friction Coefficient and Strong Weather Resistance of Sand Suction Pipeline     The inner and outer walls of the ultra-high sand suction pipe are smooth, with a very low friction coefficient, and the transportation efficiency is 20%-30% higher than that of steel pipes. The operating temperature ranges from -40°C to 60°C, suitable for harsh climate temperature changes.

6、Low Cost of Sand Suction Pipeline    Whether used on land or underwater for a long time, the overall project cost is low, efficiency is high, and it is safer and more convenient.

7、Good Self-Lubrication of Sand Suction Pipeline   As this product contains wax-like substances and has excellent self-lubricating properties. The friction coefficient (196N, 2 hours) is only 0.219MN/m (GB3960). Its sliding performance is better than that of oil-lubricated steel or brass. Especially in harsh environments with a lot of dust and sand, the self-dry lubrication performance of this product is fully displayed. It not only moves freely but also protects related parts from wear or scratches.

8、Extremely High Impact Resistance   Among the existing engineering plastics, this product has a high impact toughness value. Many materials will crack, break, shatter, or experience surface stress fatigue under severe or repeated explosive impacts. 6 Inch Slurry Pipe Project Case Studies:
1、Nanning Sand and Gravel Company in Guangxi 10 inch sand suction pipeline 500 meters
2、Luang Prabang Hunan Sand and Gravel Co., Ltd. 12 inch sand suction pipe, 1000 meters
3、Zhoushan Wanrong Shipping Company 20 inch sand suction pipeline, 500 meters
4、Export to Singapore 6 inch slurry pipe, 2000 meters
5、Hong Kong Chuangyi Shipping Co., Ltd. sand suction pipe (1000m Φ300 ultra-high molecular weight polyethylene pipe Φ700*1200mm floating body)
6、Tianjin Junlian Marine Engineering Technology Co., Ltd. 1000 meters 6 inch slurry pipe and Φ500*800mm floating body)
7、Tianjin Hongda Dredging Co., Ltd. (2300 meters Φ325 ultra-high molecular weight polyethylene sand suction pipeline and Φ1100*1100mm floating body)
8、GAMLA(Nigeria) Limited (produced in South Africa 1500 meters Φ200 sand suction pipe and pipeline floating body Φ500*800mm)
