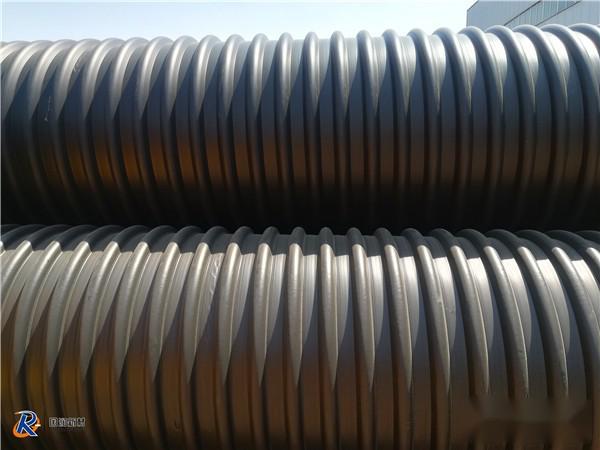

Our steel belt corrugated pipe is a new type of material, similar in appearance to double-wall corrugated pipes, but different from conventional corrugated pipes and double-wall pipes. It features a specially processed steel belt compounded at the peaks of the internal structure, enhancing ring stiffness, compressive strength, and impact resistance, making it suitable for various engineering needs. The price for DN400 U-shaped steel belt corrugated pipe is around 115 yuan per meter, depending on the order quantity, with bulk orders receiving better prices. The manufacturer sells directly. If you are interested, please feel free to contact me (136-9888-7149).

Steel belt PE corrugated pipe manufacturer - Luoyang Guorun New Materials has focused on producing underground drainage pipes, socket pipes, large-diameter drainage and sewage pipes, municipal drainage and sewage pipes, large-diameter steel belt corrugated pipes, corrugated drainage pipes, steel belt corrugated pipes, and drainage pipelines for many years. Our products are reliable in performance, with various connection methods, high quality, excellent service, direct sales from the factory, unique production processes, high rigidity, and high toughness. Products are produced strictly according to national standards, ensuring safety and reliability.

This product is formed by continuously winding steel belts in a spiral shape between two layers of polyethylene that are thermally fused together. It combines the high rigidity and strength of steel with the flexibility, corrosion resistance, and wear resistance of polyethylene. The company produces pipes with a diameter range of DN300-3000 mm and lengths of 6-12 meters, with ring stiffness achieving SN10, SN12.5, SN16, and SN18 levels. This overcomes the previous limitation where large diameter plastic underground drainage pipes could generally only achieve a ring stiffness of SN8. The product can adopt various connection methods to meet different engineering needs, effectively satisfying requirements for sealing reliability and ease of construction.

Product performance of steel belt reinforced polyethylene corrugated pipe:

1. Impact resistance: The pipe wall adopts a 'U' shape structure, which is impact-resistant and pressure-resistant, and will not crack or deform under foundation settlement, showing excellent resilience and adaptability to the foundation.

2. Cold resistance: The pipe will not crack or leak from expansion in an environment of -60℃.

3. Chemical resistance: It is not susceptible to pollution, corrosion from wastewater, or chemicals, and will not corrode from decaying organic matter in the soil.

4. Aging resistance: The pipe is typically black and can withstand direct sunlight during storage and construction.

5. Completely reliable ring stiffness: Due to the elastic modulus ratio of steel and plastic materials being greater than 200 and the weight ratio being greater than 7.85, the steel belt reinforcement easily provides sufficient safety in ring stiffness and a relatively high stiffness-to-weight ratio compared to pure plastic pipes.

6. Convenient connections: The pipes can be connected outside the trench and then pushed into the trench with an excavator, reducing construction time and costs.

7. Good stability of the pipeline system: The round external rib structure not only increases the ring stiffness of the pipe but also provides root resistance, solving issues of tension and uplift caused by longitudinal displacement of the pipeline.

8. Low friction coefficient of the pipeline, strong medium transport capability.

9. Smooth interior, low friction resistance, and fast drainage speed.

10. Polyethylene itself is a non-toxic, recyclable material that does not pollute the environment.

Our advantages
1. The company has passed ISO9001:2000 quality system certification, providing a better price-performance ratio for our products.
2. The HDPE steel belt corrugated pipe produced by the company is a U-shaped steel belt composite PE double-wall pipe, which enhances the pressure resistance and durability of the corrugated pipe.
3. The principle of "quality-oriented, integrity development" has greatly improved the company's reputation and rapidly expanded the product market.
4. PE double-wall corrugated pipes in various specifications from DN300mm to DN3000mm are more convenient for construction, and DN300-DN2400 steel belt reinforced corrugated pipes have excellent impact resistance and good geological adaptability, making them applicable to a wider range of uses.
5. Steel belt reinforced corrugated pipes and PE water supply pipes are offered across the entire product line, providing better service.

Luoyang Guorun New Materials - Welcome new and old customers to visit our company for inspection!

Sales Manager: Manager Sun 136-9888-7149, 0379-6522 7507

Factory Address: China, Luoyang, Airport Industrial Gathering Area, Zhejiang Business Industrial Park
