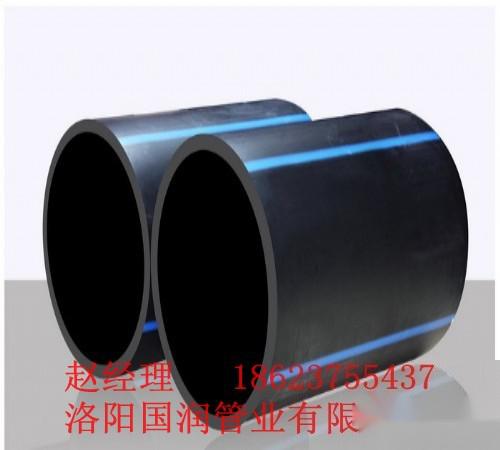

HDPE drainage pipes are thermoplastic plastic round pipes made of high-density polyethylene resin, produced using an extrusion molding process, designed for applications without internal pressure.HDPE drainage pipes are replacements for traditional steel pipes and PVC drainage pipes. They mainly handle drainage tasks such as rainwater, sewage, and agricultural irrigation, and are widely used in drainage fields such as highway and railway subgrades, subway projects, waste landfills, tunnels, green belts, sports fields, and slope protection caused by high moisture content, as well as in underground irrigation and drainage systems for agriculture and horticulture.
160PEDrainage Pipe, Drainage Safety:
The openings are located at the valleys; due to the dual action of peaks and filter fabric, the openings are not easily clogged, ensuring smooth operation of the drainage system.
160PEDrainage Pipe, Corrosion Resistance:
Compared to flexible spring drainage pipes, plastic is not prone to rust.
Strength and Flexibility:
The unique double-walled structure effectively enhances the external pressure resistance of the product, ensuring that the drainage system does not deform under external pressure, thus maintaining drainage effectiveness.
160PEDrainage Pipe, Cost-Effective:
Compared to other drainage pipes of the same diameter, its price is lower.
160PEDrainage Pipe, Product Applications:
1. Longitudinal and transverse drainage and infiltration for highways;
2. Vertical and horizontal drainage behind various retaining walls and ditches on highways;
3. Drainage for tunnels and underpasses;
4. Water supply and drainage for municipal projects, water treatment plants, sewage plants, landfills, etc.;
5. Drainage for recreational green spaces such as golf courses, sports fields, and parks;
6. Slope water and soil conservation for hillside development;
7. Underground drainage for land leveling projects;
160PEDrainage Pipe, Major Technical Indicators:
1. Vertically pressurized to 40% of the outer diameter, and when unloaded immediately, the sample should not crack or delaminate.
2. At a temperature of 0℃ and a height of 1M, using a weight of 1Kg, impact 10 times; there should be no cracking in at least 9 cases.
3. The inner wall should be uniformly smooth, with drainage holes evenly distributed below half the height of the valleys; the number of holes above half the height of the valleys should not exceed 10% of the total.
4. Permeable area ≥ 45cm2/M.
5. Longitudinal shrinkage rate ≤ 3.0%.
6. Bending degree % ≤ 2.
7. Ring stiffness ≥ 6.3KN/m2
Contact Person: Manager Zhao
Mobile: 18623755437
Phone: 0379-60692512
Fax: 0379-65260950
Company Website:www.65260952.com
Factory Address: Zhejiang Business Industrial Park, Matun Town, Mengjin County, Luoyang City, Henan Province
Welcome to visit our factory and order pipes; we will provide you with excellent product services!
