12Inch Mud Slurry Pipe

Luoyang Guorun Pipe Industry Co., Ltd. specializes in the production and supply of ultra-high molecular weight polyethylene pipes, dredging pipes, sand blowing pipes, mud suction pipes, mud discharge pipes, sand discharge pipes, sand suction pipes, sand suction pipes, sand dredging ship pipes, suction dredging ship pipes, dredging ship pipes

Ultra-high molecular weight polyethylene sand discharge pipe features:

1. Luoyang Guorun sand delivery pipe is light in weight, only one eighth of steel pipe; connected by movable flange bolts, easy to install, disassemble, and transport, shorten the start-up time, improve efficiency, thereby avoiding the drawbacks of time-consuming and laborious repair and replacement of welded pipelines after external forces destroy them.

2. Luoyang Guorun sand delivery pipe has good flexibility, tensile strength, high strength, elasticity, the pipe wall does not crack when folded, compressed, or impacted by internal and external forces; plastic pipes can be directly connected to each other, can bend in water, 4-8 pipes can bend 360 degrees, with good anti-wave effect; when connected on land, the concave and convex surfaces in an area within 30 degrees can be directly connected without the need to repair and lay the ground.

3. Luoyang Guorun sand delivery pipe has strong wear resistance, 4-8 times that of steel pipes, longer service life; the material of the pipeline has strong corrosion resistance, soaking in seawater for 50 years, no changes occur; UV resistance, aging resistance, can be used for 5-8 years depending on the amount of sand.

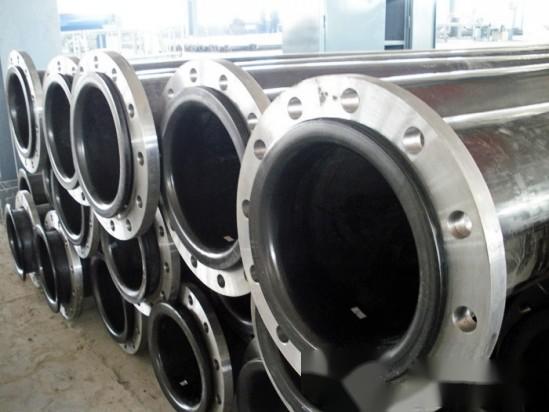

4. Luoyang Guorun sand delivery pipe is equipped with movable metal flanges at both ends; the entire finished pipe has no welding seams, and the pipes are directly connected by movable flanges with bolts; the pipe mouth is lined with a steel ring, which can ensure that the pipe mouth does not deform, crack, or leak during long-term installation and disassembly, ensuring the high efficiency of the transportation project.

5. The inner and outer walls of Luoyang Guorun sand delivery pipe are smooth, with very low friction coefficient, 20%-30% higher transportation efficiency than steel pipes, can be used in temperatures ranging from -40°C to 60°C, adapting to harsh climate temperature changes.

6. Whether used on land or in water for a long time, Luoyang Guorun sand delivery pipe has lower total project cost, higher efficiency, more safety, and more convenience.

12-inch mud slurry pipe project case：
1, Guangxi Nanning Sand and Gravel Company 10 inch sand suction pipe 500 meters
2, Langbola Bang Hunan Sand and Gravel Co., Ltd. 12 inch mud slurry pipe, 1000 meters
3, Zhoushan Wanrong Ship Service Company 20 inch sand suction pipe, 500 meters
4, Export to Singapore 8 inch sand suction pipe, 2000 meters
5, Hong Kong Chuangyi Ship Service Co., Ltd. sand suction pipe (1000m Φ300 ultra-high molecular weight polyethylene pipe Φ700*1200mm float)
6, Tianjin Junlian Ship Marine Engineering Technology Co., Ltd. 1000 meters Φ159 ultra-high molecular weight polyethylene sand suction pipe and Φ500*800mm float)
7, Tianjin Hongda Dredging Co., Ltd. (2300 meters Φ325 ultra-high molecular weight polyethylene sand suction pipe and Φ1100*1100mm float)
8, GAMLA( Nigeria ) Co., Ltd. (produced South Africa 1500 meters Φ200 sand suction pipe and pipe float Φ500*800mm)

Contact:Manager Zhao

Phone:18623755437
Telephone:0379-60692512
Fax:0379-65260950
Email:874689613@qq.com

Website:www.lygrsjw.com
Address: Zhejiang Commercial Industrial Park, Matun Town, Mengjin County, Luoyang City, Henan Province
Luoyang Guorun Pipe Industry Co., Ltd., welcomes new and old customers to inquire and negotiate.
