10-inch Sand Suction Pipe (Mobile: 18623755437 Contact: Manager Zhao)

Ultra-high molecular weight polyethylene (UHMW-PE PIPE) refers to linear polyethylene (PE) with a weight-average molecular weight of over 1.5 million (Our company's ultra-high pipes have an average molecular weight of over 2.5 million), as a new type of engineering plastic pipe with excellent overall performance, ultra-high molecular weight polyethylene wear-resistant pipes have broad market potential for transporting various powders, slurries, fluids, and gases. They can solve problems such as severe wear, corrosion, and scaling in the transportation of large quantities and varieties of industrial materials.

Features of the 10-inch Sand Suction Pipe:
1, Lightweight Sand Suction Pipe Only one-eighth the weight of steel pipes; Connected through movable flange bolts, convenient for installation, disassembly, and transportation, shortening construction time and improving efficiency. After external damage, repairing or replacing pipe sections saves costs.

2, Good Toughness of Sand Suction Pipe Under tension, high strength, and elasticity, the pipe wall does not crack under internal and external force impacts; plastic pipes can be directly connected in water, with 4-8 pipes able to bend 360 degrees, showing good resistance to wind and waves; when connected on land, can be directly connected to uneven surfaces within 30 degrees without the need to level the ground.

3, Strong Abrasion Resistance of Sand Suction Pipe Is 4-8 times that of steel pipes, with a longer service life; the pipe material has strong corrosion resistance, soaking in seawater for 50 years without any changes; UV resistant, aging resistant, can be used for 5-8 years depending on sand content.

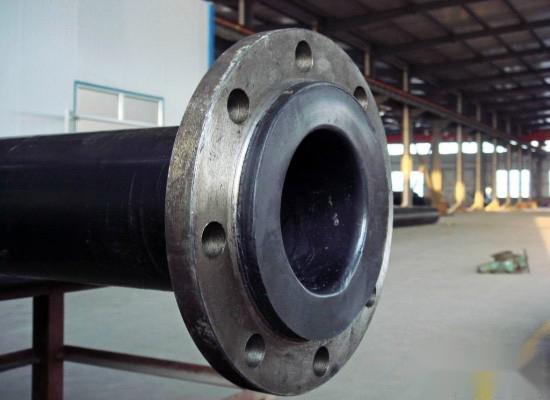

4, Convenient Installation of Sand Suction Pipe The suction sand pipe has movable metal flanges at both ends; the entire finished pipe has no welds, and pipes are directly connected through movable flanges with bolts; the pipe mouth is lined with a steel ring to ensure that the pipe mouth does not deform, crack, or leak during long-term installation and disassembly, ensuring high efficiency in the transportation project.

5, Low Friction Coefficient of Sand Suction Pipe, Strong Weather Resistance The inner and outer walls of the ultra-high sand suction pipe are smooth, with an extremely low friction coefficient, resulting in a transportation efficiency 20%-30% higher than that of steel pipes; usable temperature range is from -40℃ to 60℃, suitable for extreme climate temperature variations.

6, Low Cost of Sand Suction Pipe Whether used on land or in water for a long time, the total project cost is low, efficiency is high, safer, and more convenient.

7, Good Self-lubrication of Sand Suction Pipe Due to the presence of wax-like substances in this product, it has excellent self-lubrication. The friction coefficient (196N, 2 hours) is only 0.219MN/m (GB3960). Its sliding performance outperforms oil-lubricated steel or brass. Especially in harsh environments with high dust and sand, the self-dry lubrication performance of this product is fully displayed. It not only moves freely but also protects related parts from wear or scratches.

8, Extremely High Impact Resistance Among existing engineering plastics, this product has high impact toughness. Many materials crack, break, shatter, or experience surface stress fatigue under severe or repeated explosive impacts. This product meets GB1843 standards and passes the cantilever beam impact test with no damage.

Main Application Areas of the 10-inch Sand Suction Pipe:

Mining Industry: Slurry transport pipelines, high-pressure water supply, and gas pipelines underground in coal mines.

Power System: Fly ash discharge in thermal power plants, chemical water circulation systems, desulfurization systems.

Coal Industry: Transport of coal powder and coal-water slurry, ventilation, exhaust, and drainage systems in mines, desulfurization systems.

Chemical Industry: Transport of highly corrosive media such as strong acids and strong bases, brine, salt slurry, and raw salt in salt chemical industry.

Oil Extraction: Crude oil transport, natural gas gathering, and sewage backfill.

Metallurgical Industry: Transport of coke powder, ore powder, slurry, and smelting oil waste residue.

Dredging Engineering: Transporting silt in river, lake, port, and dock dredging projects.

Marine Engineering: Transporting seawater and freshwater in desalination processes.

Municipal Engineering: Sewage treatment, domestic water supply, and gas, natural gas transport.

Engineering Cases of the 10-inch Sand Suction Pipe:

1· Nanning Sand and Stone Company, Guangxi 10-inch sand suction pipeline 500 meters.

2, Luang Prabang Hunan Sand and Stone Co., Ltd., 12-inch sand suction pipe, 1000 meters.

3, Zhoushan Wanrong Shipping Company, 20-inch sand suction pipeline, 500 meters.
4, Export to Singapore 8-inch sand suction pipe, 2000 meters.
5, Hong Kong Chuangyi Shipping Co., Ltd. sand suction pipe (1000m 12-inch sand suction pipe Φ700*1200mm float).
6, Tianjin Junlian Marine Engineering Technology Co., Ltd. 1000 meters 6-inch sand suction pipe and Φ500*800mm float).
7, Tianjin Hongda Dredging Co., Ltd. (2300 meters 12-inch sand suction pipe and Φ1100*1100mm float).
8, GAMLA (Nigeria) Limited (produced in South Africa 1500 meters 8-inch sand suction pipe and float Φ500*800mm).
