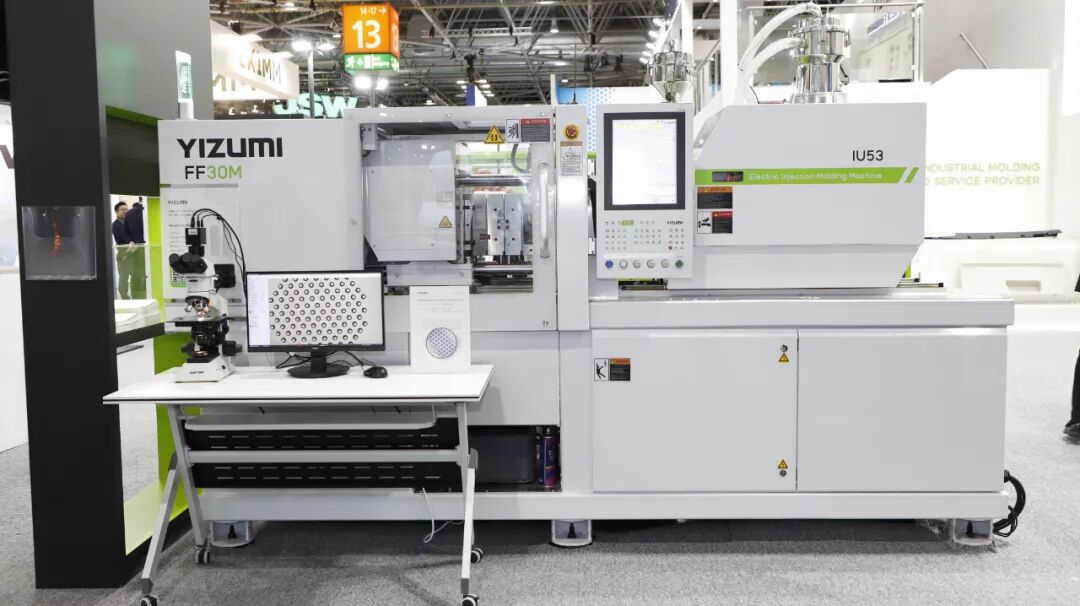

K 2025 Talk ShowYizhim Micro FF30M Precision Medical Injection Molding Machine Global Debut
Microfluidics chip, also known as Lab-on-a-Chip, integrates sample preparation, reaction, separation, and detection operations at the micron scale within a chip, enabling fully automated analysis in biological, chemical, and medical processes. This technology is hailed as a "disruptive" breakthrough in the life sciences field, with core advantages such as small size, low sample/reagent consumption, low energy consumption, fast reaction speed, and strong portability.
Hardcore Technology
「Locking Unit」
-
Ultra-rigid structure: optimize the template, frame, and injection structure, with mold clamping surface deformation less than 0.03mm.
-
Split handle design: Reduces the impact of tailboard deformation on the cross head, enhancing stability.
-
Independent reinforcement of the dynamic/fixed template: split-type support + thermal conduction optimization to ensure template parallelism and prevent thermal deformation.
-
Precise Control of Clamping Force: Encoder Mold Adjustment Technology, Clamping Force Accuracy Reaches 3.5kN.
-
High Linear Accuracy: Linear guideway design with a straightness of 0.01mm.
「Injection Unit」
-
Double screw injection platform technology: evenly distributes axial loads, eliminates nozzle tipping forces, and ensures stable injection.
-
SDC Intelligent Direct Control: 0.125ms ultra-fast response for ultimate motion precision.
「Clean Design」
-
All-electric drive without hydraulic oil pollution, adaptable to different cleanroom grade requirements, custom-designed for the medical industry.
Case Application

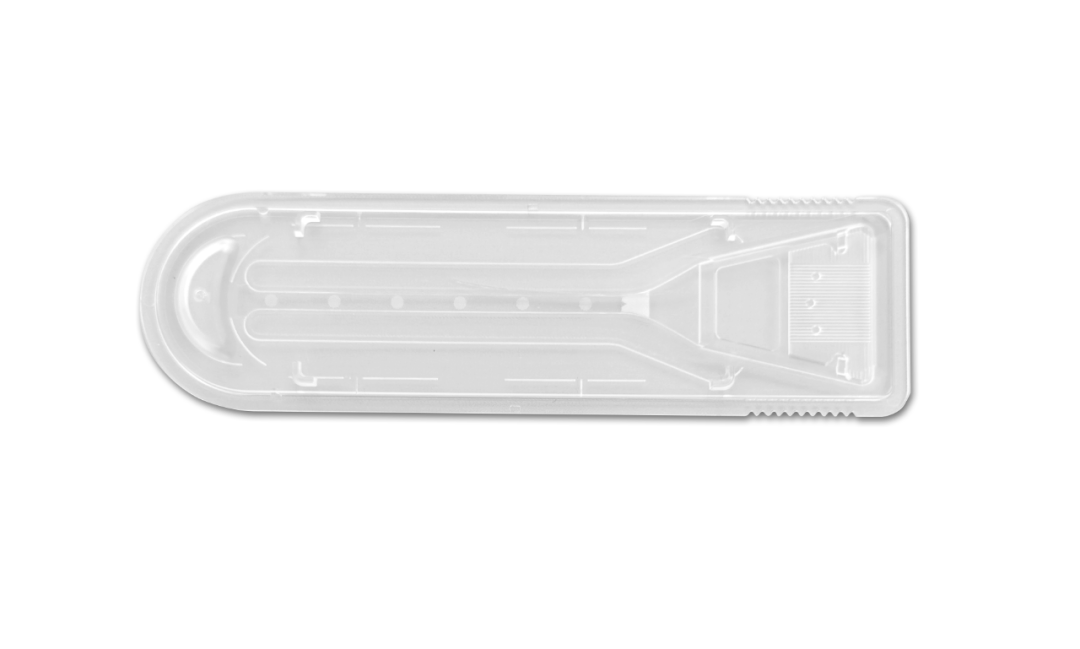

「Microfluidic chip」
Number of cavities: 1 out of 2
Material: PMMA
Chip dimensions (L×W×H): 97.10×28.10×4.00mm
Microstructure size: diameter 0.08 mm
Molding cycle: 15±1s
Partners: Gestalt, KUKA
The injection molding of polymer materials is one of the key processes in the manufacturing of microfluidic chips. Yizumi's micro precision injection molding machine achieves micrometer-level precision injection through a high-rigidity structural design, a dedicated control system, and cleanroom compatibility, meeting the stringent demands for ultra-high precision and clean production in the medical field.
