Impact of Different Fiberglass Components on Enhancing PA6 Performance

Glass fiber (GF) is one of the most commonly used materials for reinforcing PA6, and its components (such as fiber length, content, surface treatment agents, etc.) have a significant effect on the properties of the composite material.

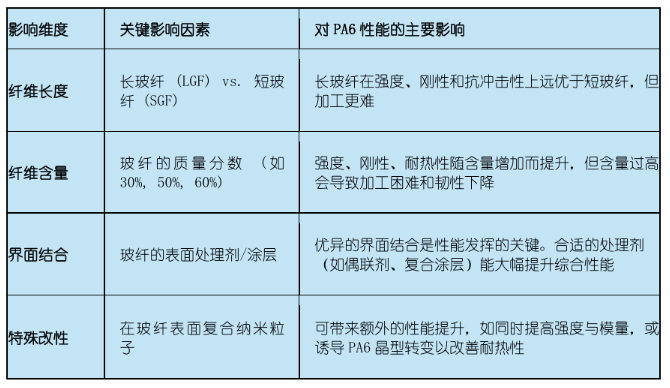

Table: Overview of the Impact of Glass Fiber Composition on PA6 Performance

Fiber length is one of the key factors determining the reinforcement effect.

Long Glass Fiber (LGF): Typically refers to glass fibers retained at lengths of 3–10 mm or longer. In composites, they form an interlocking “skeletal” network, thereby delivering exceptional mechanical properties. Research shows that, at a glass fiber mass fraction of 50%, LGF-reinforced PA6 achieves a tensile strength of 234 MPa, a flexural strength of 349 MPa, and a notched impact strength of 31 kJ/m²—performance significantly superior to that of commercially available short-glass-fiber-reinforced products. However, LGF exhibits poorer melt flow, imposes higher requirements on processing equipment and molds, and more readily causes fiber bloom on the surface of molded parts.

Short Glass Fiber (SGF): Typically 0.2–0.7 mm in length. During injection molding, the fibers undergo further breakage, resulting in even shorter retained lengths. Although the mechanical properties of SGF-reinforced PA6 are inferior to those of long-glass-fiber-reinforced PA6, they are still significantly improved. Moreover, SGF offers better melt flowability and easier control of part surface quality, making it the most widely used reinforcement form.

The content of glass fiber directly determines the performance level of the composite material.

Performance improvement: As the glass fiber content increases, the tensile strength, flexural strength, flexural modulus, and heat distortion temperature of PA6 all significantly improve. A patent indicates that, through formulation optimization, it is even possible to prepare high-performance PA6 materials with up to 60% glass fiber content.

Performance Balance: However, higher glass fiber content is not always better. When the glass fiber content exceeds a certain threshold, the material becomes brittle, toughness decreases, melt flowability deteriorates, processing becomes more difficult, and wear on processing equipment intensifies. Therefore, the optimal glass fiber content must be selected based on specific application requirements (e.g., whether high rigidity or high toughness is prioritized).

The interfacial bonding strength between glass fiber and PA6 resin determines whether stress can be effectively transferred from the soft resin to the high-strength fiber.

Coupling agents are a conventional method for improving interfacial adhesion. For example, in the preparation of glass fiber-reinforced PA6 with high fiber content (60%), studies have found that the optimal dosage of coupling agent is 0.4%, which effectively enhances the overall properties of the material.

Novel composite coatings have become a research hotspot in recent years. By constructing a composite coating containing polydopamine (PDA) and hexagonal boron nitride (h-BN) on the glass fiber surface, surface roughness, surface activity, and chemical bonding energy can be simultaneously enhanced, thereby significantly improving interfacial mechanical interlocking. Experimental data show that when the h-BN content is 0.75%, the tensile strength of the modified composite increases by 79.2% and the flexural strength improves by 32.2% compared to the unmodified material.

Coating nanomaterials onto the surface of glass fibers can further enhance the overall performance of PA6.

Nano SiO₂ and carbon nanotubesStudies have shown that after coating nano-silica (SiO₂) and multi-walled carbon nanotubes (MWNTs) onto glass fiber surfaces via electrostatic interactions, the glass transition temperature, dynamic modulus, and crystallization temperature of PA6 composites are significantly improved.The effect of GF-MWNTs is the most significant., enhancing the tensile strength of the materialIncreased by 21%, modulusIncreased by 28%.

Inducing Polymorphic TransformationThe aforementioned PDA/h-BN composite coating not only enhances the interface but also induces a crystal form transition in PA6.Transformation of the γ crystalline form to the α crystalline form with superior mechanical properties, this explains the reason for its performance improvement from a microstructural level.

In conclusion, to achieve ideal performance of glass fiber reinforced PA6, it is necessary to consider various factors comprehensively.Fiber length, addition amount, and interface optimization。

If pursuingUltimate high strength and high impact, priority can be given toLong Glass Fiber ReinforcedPlan.

If it is necessary toBalancing performance, processability, and costShort glass fiber reinforcement is a mature and economical choice, with the key lying inCoupling Agent Special coatingOptimize the interface integration.

For special requirements,Introducing nanomaterials for synergistic modification of fiberglassIt is a cutting-edge development direction.

Are you mainly focusing on a certain type of fiberglass reinforced product (such as long fiber or short fiber), or are you selecting materials for a specific application (such as automotive parts, electronic and electrical enclosures)? You can leave a comment below to discuss specific scenarios.
