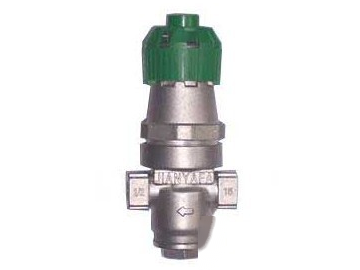

CY14H-16P Bellows Pressure Reducing Valve Image
Product Introduction:
The main feature of the direct-acting bellows pressure reducing valve CY14H-16P is its internal structure made of stainless steel bellows, which is simple and durable. It is suitable for pipelines with high sensitivity requirements and strict installation space constraints. The connection method is internal thread, with common specifications including G 1/2”, G 3/4”, G 1”, and PN1.6MPa. It is applicable to steam, water, and gas pipelines with temperatures ≤ 220 ℃.
The pressure of the CY14H-16P bellows pressure reducing valve can be adjusted by rotating the plastic handwheel during use, without the need for tools, making installation convenient. The internal structure features a bellows, and the sealing surface is equipped with a filter mesh protection device, which prevents damage to internal components and greatly extends service life.
Product Features of CY14H-16P Bellows Pressure Reducing Valve
1. Compact size and lightweight.
2. The pressure detection device uses bellows, ensuring good durability.
3. Pressure can be adjusted by rotating the plastic handwheel without tools.
4. Equipped with a filter mesh to protect valve performance from dust and impurities.
5. Internal thread connection for easy installation.
6. Both the valve body and valve seat are made of stainless steel for long service life.
We welcome your inquiries and purchases; we are dedicated to serving you! Shanghai Fugong Valve Technology Co., Ltd.
