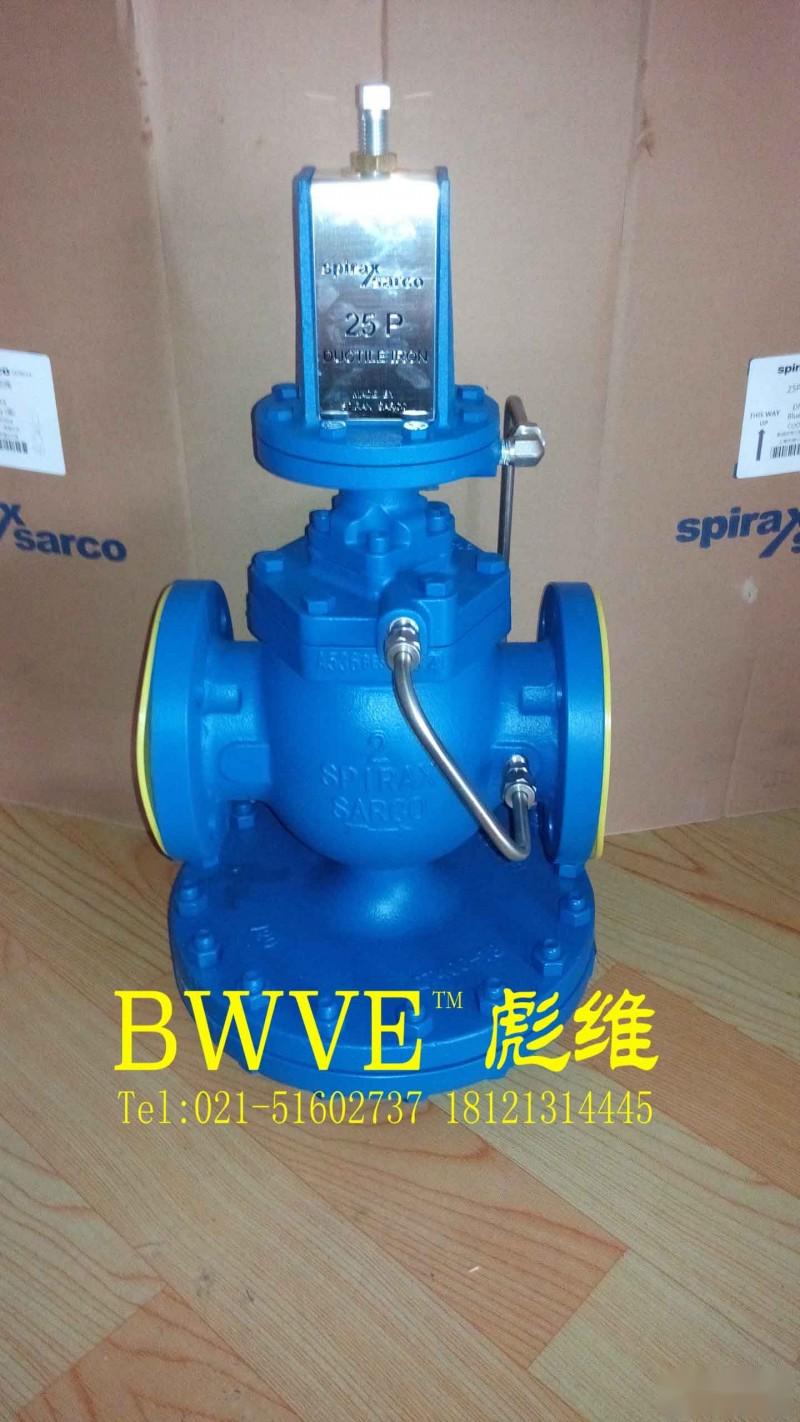

Spirax Sarco 25P Pilot-Operated Pressure Reducing Valve Introduction
The Spirax Sarco 25P series pressure reducing valve, pilot-operated diaphragm type, along with the DP27 series, DP143 series, and DP163 series.
The 25P pilot-operated diaphragm pressure reducing valve includes: 25P, 25T, 25TE, 25PE, 25PT, 25PTE.
Spirax Sarco pressure reducing valves are used in steam system pipelines to reduce the inlet pressure of the steam pipeline to a required outlet pressure through adjustment. They rely on the energy of the steam medium itself to keep the outlet pressure stable automatically, ensuring that the outlet pressure of the main valve does not change with variations in inlet pressure or outlet flow rate. These valves are suitable for industrial water supply, fire-fighting water supply, and domestic water supply systems.
Spirax Sarco pressure reducing valves are primarily used in gas pipelines, such as air, nitrogen, oxygen, gas, liquefied gas, and natural gas.
Spirax Sarco 25P Pilot-Operated Pressure Reducing Valve Structure
The Spirax Sarco pressure reducing valve is a pilot piston-type valve. It consists of two parts: the main valve and the pilot valve. The main valve mainly comprises components such as the valve seat, main valve disc, piston, and spring. The pilot valve mainly consists of components such as the valve seat, valve disc, diaphragm, spring, and adjustment spring. By adjusting the pressure of the adjustment spring, the outlet pressure is set, and the diaphragm senses changes in outlet pressure. The pilot valve opens and closes to drive the piston, adjusting the flow area of the main valve's throttling section to achieve pressure reduction and stabilization.
Application of Spirax Sarco Pressure Reducing Valves
Spirax Sarco pressure reducing valves regulate the flow of the medium by controlling the opening of the valve body’s closure element, reducing the pressure of the medium, while also adjusting the opening of the closure element based on the downstream pressure to maintain it within a certain range. Additionally, cold water can be injected into the valve body or downstream to lower the temperature of the medium, resulting in valves known as pressure reducing and temperature reducing valves. These valves are characterized by maintaining the outlet pressure and temperature within a specific range even when the inlet pressure varies continuously.
The Spirax Sarco pressure reducing valve is an intelligent valve that uses the energy of the medium itself to adjust and control pipeline pressure. It is used in domestic water supply, fire-fighting water supply, and other industrial water supply systems. By adjusting the pilot valve, the outlet pressure of the main valve can be regulated. The outlet pressure remains unchanged regardless of variations in inlet pressure or flow rate, safely and reliably maintaining the outlet pressure at the set value, which can be adjusted as needed to achieve the purpose of pressure reduction. This valve offers precise pressure reduction, stable performance, safety, reliability, easy installation and adjustment, and a long service life.
Spirax Sarco 25P Pilot-Operated Pressure Reducing Valve Catalog:
Spirax Sarco pressure reducing valve, Spirax Sarco steam pressure reducing valve, Spirax Sarco 25P pressure reducing valve, Spirax Sarco DP27 pressure reducing valve, Spirax Sarco DP143 pressure reducing valve, Spirax Sarco DP163 pressure reducing valve, Spirax Sarco 25T pressure reducing valve, Spirax Sarco 25TE pressure reducing valve, Spirax Sarco 25PE pressure reducing valve, Spirax Sarco 25PT pressure reducing valve, Spirax Sarco 25PTE pressure reducing valve.
|
Spirax Sarco 25P Pilot-Operated Pressure Reducing Valve Main Features Pilot Valve Spring: Three colors of springs available for accurate control of different pressures within the range of 0.2-1 barg. Temperature Adjustment Dial: Quick and accurate setting of the desired temperature. Temperature Sensor: Contains a non-compensated liquid in the temperature control element, sensing instantaneous temperature changes for precise control. 100% Testing: Each 25 series adjustment valve is tested before leaving the factory to ensure fault-free operation. 25P Type Pressure Reducing Valve The 25P pressure reducing valve can accurately control downstream pressure even when upstream pressure and load vary, with a maximum pressure reduction ratio of up to 10:1. With proper selection, installation, and maintenance, the 25P pressure reducing valve can operate safely and reliably for long periods without failure. Spirax Sarco 25P Pilot-Operated Pressure Reducing Valve Ordering InstructionsPlease fill out the "Specification Sheet" or indicate the following when placing an order: 1. If the model has not been selected before ordering, please provide the following usage parameters: 1. Nominal diameter, 2. Fluid properties (including nominal pressure, temperature, viscosity, or acidity/alkalinity), 3. Valve body and core material, 4. Set pressure of the pressure reducing valve. 2. If the product model has been selected by the design unit, please order directly according to the model from our business department; 3. When the application is critical or the pipeline is complex, please provide design drawings and detailed parameters for our experts to review and ensure accuracy. |
