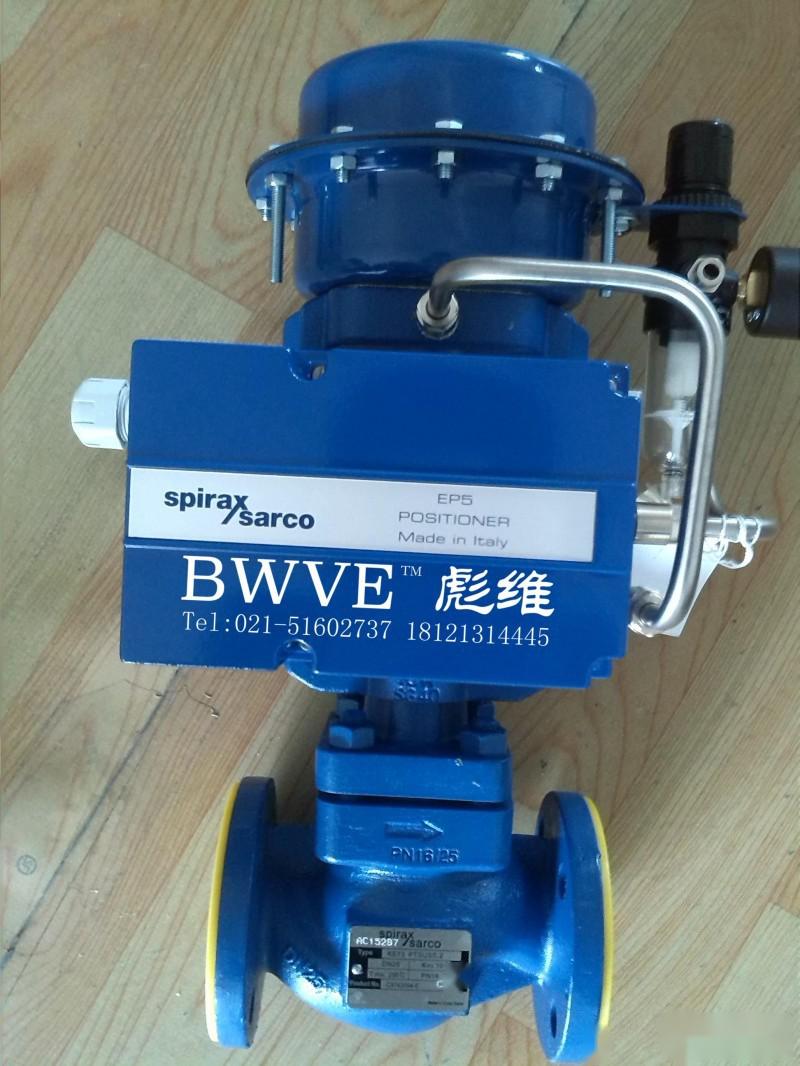

Spirax Sarco KE73 Pneumatic Control Valve English Introduction:
Ductile Iron:KE71 KE73 KE71B KE73B
Cast Steel:KE43 KE43B
Stainless Steel:KE63 and other products.
DiameterDN15-200，
If you need the temperature﹑pressure﹑flow control coefficient parameters please call for consultation.
The Spirax SarcoKE series control valves andPN5000 and PN6000 pneumatic actuators are used for the precise control of steam﹑water﹑oil and most industrial fluids.
The standardized design and diverse options of the KE series control valves allow one valve to meet various industrial requirements.
After being installed withPN5000 (normally open) or PN6000 (normally closed) pneumatic actuators, the KE valve can be used in various devices for flow, pressure, or temperature control.
Spirax Sarco KE73 Pneumatic Control Valve Product Introduction:
Spirax Sarco KE73 Pneumatic Control Valve Application Range:
Spirax Sarco KE73 Pneumatic Control Valve Structural Features:
Spirax Sarco KE73 Pneumatic Control Valve Design and Manufacturing Standards:
Spirax Sarco KE73 Pneumatic Control Valve Internal Components:
Spirax Sarco KE73 Pneumatic Control Valve Allowable Pressure Differential:
Type: ZHA (B) multi-spring diaphragm actuator
When placing an order, please fill out the "Specification Sheet" or specify the following details:
Spirax Sarco KE73 Pneumatic Control Valve is a corrosion-resistant straight-through single-seat control valve, with the inner wall of the valve body and valve components in contact with the fluid made using high-pressure injection molding technology, lined with corrosion-resistant and aging-resistant polytetrafluoroethylene (F46), and uses a polytetrafluoroethylene corrugated pipe seal. This control valve is widely used for controlling strong corrosive media such as acids and alkalis, as well as toxic and volatile gases and liquids.
The corrosion-resistant control valve lined with fluorine rubber is widely used for controlling strong corrosive media such as acids and alkalis, as well as toxic and volatile gases and liquids.
1. Corrosion-resistant. It can resist the corrosion of almost all media (including concentrated nitric acid and aqua regia).
2. Good sealing performance. It adopts a double seal of a corrugated pipe and packing to ensure no leakage.
3. Low leakage. Due to the soft sealing of the valve core and valve seat, it ensures no leakage.
4. Paired with HA actuators, it has a large output force and compact structure. The product meets GB/T4213-92.
Structural length standard: GB/T 12221-2005
Connection flange standard: GB/T 9113
Pressure-temperature rating: GB/T 12224-2005
Testing and inspection standards: GB/T 13927-2008
Pressure cover type: Bolt-tightening type
Packing: V-type polytetrafluoroethylene packing
Valve core type: Single-seat plunger type valve core
Flow characteristics: Linear characteristics and equal percentage characteristics
Valve body material: ZG230-450 lined with F46
Valve seat and valve core material: 2Cr13 lined with F46
Corrugated pipe material: Polytetrafluoroethylene
Supply Pressure
Spring Range
Allowable Pressure Differential
Nominal Diameter
G3/4'
20
25
32
40
50
65
80
100
150
1.4
0.2～1.0
16
16
8
5
5
3
2.5
2
1.2
0.8
4.0
0.8～2.4
16
16
16
12
11
7
6.5
4.5
2.8
2.0
Actuator Configuration for Control Valve
Diaphragm material: Ethylene propylene rubber with nylon cloth, rubber with nylon cloth
Spring range: 20～100, 80～240kPa
Supply pressure: 140～400kPa
Air source interface: Rc1/4”
Ambient temperature: -30～+70℃
Valve action type: Achieve valve's air-close or air-open type with direct action or reverse action actuators
Accessories: Positioner, air filter pressure reducer, lock valve, travel switch, valve position transmitter, solenoid valve, handwheel mechanism, etc.
Model
ZHA-22
ZHB-22
ZHA-23
ZHB-23
ZHB-34
ZHB-34
ZHA-45
ZHB-45
Effective Area cm2
350
350
560
900
Stroke mm
16
25
40
60
Spring Range KPa
20～100(Standard): 40～200;
80～240; 20～60; 60～100
Spirax Sarco KE73 Pneumatic Control Valve Ordering Instructions
1. If the model has not been selected before ordering, please provide us with the operating parameters: 1. Nominal diameter, 2. Fluid properties (including nominal pressure, temperature, viscosity, or acidity/alkalinity), 3. Valve body and valve core materials.
2. If the product model has already been selected by the design unit, please order directly from our business department according to the model;
3. When the usage scenario is very important or the pipeline is relatively complex, please try to provide design drawings and detailed parameters for our experts to review and ensure quality.
