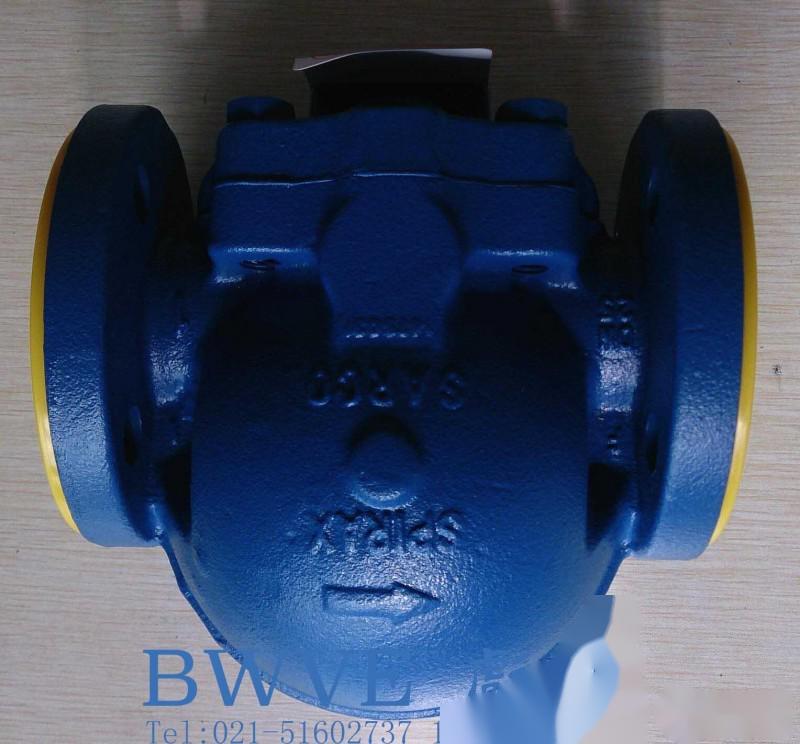

Spirax Sarco FT14 Float Type Steam Trap
The Spirax Sarco steam trap in the UK operates based on the density difference between steam and condensate. This type of steam trap is very convenient to operate and can work effectively when condensate load changes, while being unaffected by sudden changes in operating pressure. Compared to its size, this type of steam trap has a large discharge capacity, reaching up to 150,000kg/h, and can discharge immediately with the generation of condensate. Due to this feature, the steam trap is an ideal choice for steam control equipment. The maximum operating pressure of the steam trap can reach 80bar.
Main features of the Spirax Sarco FT14 Float Type Steam Trap include：
1、Simple structure, easier maintenance.
2、Can be installed horizontally or vertically.
3、Advanced design, stainless steel internal structure ensures good corrosion resistance and wear resistance.
4、The standard product comes with a built-in vent valve or an internal steam lock device.
5、The drainage outlet is below the water level to prevent main steam leakage.
6、Available with threaded and flanged connections.
7、The built-in vent valve ensures that the steam trap has a larger condensate discharge capacity during startup..
The Spirax Sarco FT14 Float Type Steam Trap has a complete range of specifications and various models. For heating and industrial equipment that require prompt discharge of condensate to ensure effective heat transfer, this type of steam trap is the best choice. FT46/FTS14 is suitable for clean steam systems
|
Steam Trap Model |
Body Design Limit |
Size-(mm) |
Connection Type |
Material |
Remarks |
|
FT14 |
PN16 |
15-25 |
Threaded, Flanged |
Cast Iron, Ductile Iron |
Can be installed horizontally or vertically |
|
FT14HC |
PN25 |
1' |
Threaded |
Ductile Iron |
|
|
FTS14 |
PN25/ANSI300 |
15-25 |
Threaded, Welded, Flanged |
Stainless Steel |
Can be installed horizontally or vertically |
|
FTC32 |
PN40/ANSI300 |
15-25 |
Threaded, Welded, Flanged |
Carbon Steel |
|
|
FT43 |
PN16 |
25-100 |
Flanged |
Cast Iron |
Can be installed horizontally or vertically |
|
FT44 |
PN40 |
15-100 |
Flanged |
Cast Steel |
Can be installed horizontally or vertically |
|
FT46 |
PN40 |
15-50 |
Flanged |
Stainless Steel |
|
|
FT47 |
PN40 |
15-50 |
Flanged |
Ductile Iron |
Can be installed horizontally or vertically |
|
FT450 |
ANSI300 |
20-100 |
Threaded, Welded, Flanged |
Cast Iron |
|
In adherence to the service objective of "Quality, Customer is God", we strictly follow the quality management procedures and quality assurance systems established by ISO9001-2000 certification. Participating in your company's valve bidding activities, we solemnly promise: we are willing to compete with reliable product quality, reasonable pricing, and excellent timely after-sales service to sincerely serve you. After delivery, our factory will send professional technicians to install and debug the product, providing technical guidance and training for product maintenance and upkeep for the buyer's personnel.
Spirax Sarco FT14 Float Type Steam Trap Ordering Notice
When placing an order, please fill out the "Specification Sheet" or indicate the following content:
1. If the model has not been selected before ordering, please provide us with usage parameters: 1. Nominal diameter, 2. Fluid properties (including nominal pressure, temperature, viscosity, or acidity/alkalinity), 3. Valve body and core materials.
2. If the model has been selected by the design unit, please order directly from our business department according to the model;
3. When the application is critical or the piping is complex, please provide design drawings and detailed parameters for our engineers to review.
