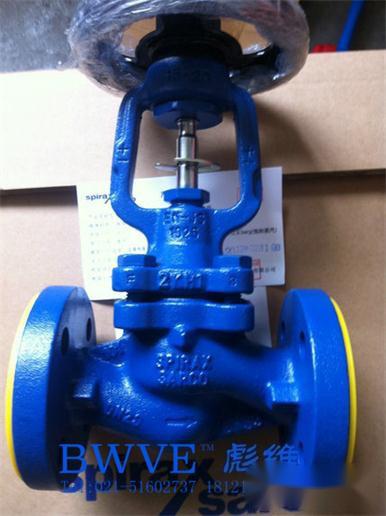

Spirax Sarco BSA1T Stop Valve Overview
The BSA1T series corrugated seal stop valve from Spirax Sarco features a unique corrugated seal design that completely eliminates the issue of stem packing seal leakage, meeting stringent leakage class requirements. The BSA1T series includes a throttling valve core and dual corrugated seals, ensuring a longer service life...
The zero-leakage characteristics of the BSA1T stop valve enhance equipment safety. It saves a significant amount of energy, reduces maintenance costs, and provides a clean and safe working environment for industrial applications.
The BSA1T corrugated seal stop valve is available in sizes ranging from DN15 to DN250 and can be provided in various materials, including cast iron for the BSA1T, ductile iron for the BSA2T, and cast steel for the BSA3T stop valves. Connection standards include flange, threaded, and socket welding, with pressure ratings up to PN40, ANSI 300, and CLASS 800. The maximum working temperature can reach 425°C, making it suitable for high-temperature systems. This versatility allows one valve to meet various industrial application requirements while ensuring long service life, maintenance-free operation, and durability.
The Spirax Sarco BSA1T stop valve is constructed with a fully stainless steel body and bonnet, making it suitable for applications where the fluid and environment are corrosive.
Spirax Sarco BSA1T Stop Valve Features
· Typical application fluids
· Steam and condensate
· Process fluids
· Hot water and cold water systems
· Hot oil systems
· Chemical thermal fluids
· Toxic fluids
· Compressed air and other gases
· Industrial fluids such as water/ethylene glycol
Spirax Sarco stop valves, Spirax Sarco steam-specific stop valves, linear motion type introduction
Because stop valves are often used to shut off the flow of fluid into a certain area, they are critical in fluid systems. However, they are sometimes also used for manual control of fluid flow. The European standard EN 736-1:1995 clarifies the distinctions between inlet corrugated stop valves, control valves, and regulating valves:
Stop valve - a valve designed for fully open or fully closed positions.
Regulating valve - a valve designed to be in any position between fully open and fully closed.
Control valve - a device driven by external forces used in process control systems to change fluid flow rates.
Stop valves can be used in various situations that require on/off control:
Changing the flow direction of process media.
Shutting off fluid for:
Maintenance of equipment.
Removal of equipment.
Shutdown of equipment.
Various types and designs of stop valves can meet the needs of different applications and working conditions, based on the movement mode during the closing operation.
Typically, valves can be divided into two categories (see Table 12.1.1).
Linear motion valves - the closing element moves in a straight line. This category includes gate valves, ball valves, diaphragm valves, and throttling valves, which will be further elaborated in this section.
Rotary valves - the closing element moves around an axis that is perpendicular to the direction of the fluid. Butterfly valves and ball valves are two important types of rotary valves in steam systems, which will be further elaborated in Section 12.2. Table 12.1.1 Basic modes of valve closing element movement.
Spirax Sarco Linear Motion Valves
Linear motion valves have evolved from the sluice gate method used to control the flow of canal water, and numerous types of valves have since been developed for fluid control. Although linear motion valves are characterized by the closing element moving in a straight line, the fluid flow direction may be perpendicular to the movement of the closing element (as in gate valves) or in the same direction, as in ball valves. The main feature of linear motion valves is that the closing element tightly seals against the valve stem.
Spirax Sarco BSA1T Stop Valve Service Commitment
In the spirit of "Quality, Customer is King," we strictly adhere to the quality management procedures and quality assurance systems established by ISO9001-2000 certification. We participate in your company's valve bidding activities, and we solemnly promise: we are willing to compete with reliable product quality, reasonable pricing, and excellent timely after-sales service, sincerely serving our customers. After delivery, our factory will send professional technicians to install and debug the products and provide technical guidance and training on maintenance and care for the buyer's personnel.
Spirax Sarco BSA1T Stop Valve Ordering Instructions
When placing an order, please fill out the "Specification Sheet" or specify the following details:
1. If the model has not been selected before ordering, please provide us with the usage parameters: 1. Nominal diameter, 2. Fluid properties (including nominal pressure, temperature, viscosity, or acidity/alkalinity), 3. Valve body and core materials.
2. If the product model has been selected by the design unit, please place the order directly with our business department according to the model;
3. When the application scenario is particularly important or the pipeline is complex, please provide design drawings and detailed parameters for our engineers to review and verify.
