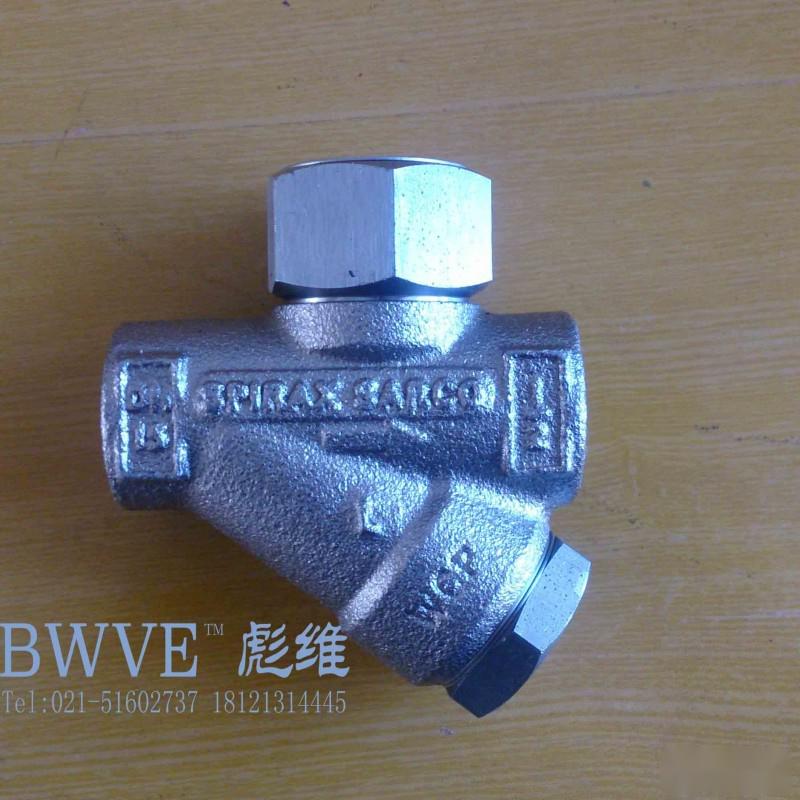

Spairex Airodyn Steam Trap

**Introduction to Spirex Air Compressor Drain Valve** Airdyn is a thermodynamic air compressor drain valve. The outer surface has been treated with ENP for oxidation resistance. **Options for Spirex Air Compressor Drain Valve** Airody S offers high-precision discs for high-cleanliness applications. **Standards for Spirex Air Compressor Drain Valve** This product fully complies with the European Pressure Equipment Directive 97/23/EC. **Certificates for Spirex Air Compressor Drain Valve** This product can provide a certificate EN 10204 3.1. Note: Please specify the need for a certificate when ordering. **Caliber and Pipe Connection** ½' threaded BSP or NPT. ¾' threaded NPT. **Pressure/Temperature Limitations** Large valve body design pressure PN63 PMA - Maximum allowable pressure 63 bar g@120℃ TMA - Maximum allowable temperature 400℃@42 bar g PMO - Maximum operating pressure 63 bar g@120℃ Minimum working temperature 0℃ TMO - Maximum operating temperature 400℃@42 bar g PMOB - Back pressure must not exceed 80% of inlet pressure under any circumstances; otherwise, the drain valve cannot close Minimum operating pressure differential 0.25 bar Maximum cold test pressure 95 bar g **Materials** | Item No. | Component | Material | |----------|-------------------|----------------------------------| | 1 | Valve Body | Stainless Steel ASTM A743 Gr. CA40F | | 2 | Valve Cap | Stainless Steel AISI 416 | | 3 | Disc | Stainless Steel BS 1449 420 S45 | | 4 | Filter Mesh | Stainless Steel BS 1449 304 S16 | | 5 | Filter Cap | Stainless Steel AISI 416 | | 6 | Filter Cap Gasket | Stainless Steel BS 1449 304 S16 | **Dimensions/Weight (Approximate) mm and kg** | Caliber | A | B | E | G | H | Weight | |---------|----|----|----|----|----|--------| | ½' | 41 | 78 | 55 | 85 | 20 | 0.77 | | ¾' | 44 | 85 | 60 | 100| 20 | 0.95 | **Installation Instructions** The drain valve should be installed on horizontal pipes, but it can also be installed on vertically downward pipes. **Operation** One side of the disc (3) has a surface with a scratch facing outward, while the other side has a machined annular groove. The Airodyn is supplied with the side having the annular groove facing the valve seat, suitable for clean operating systems. If the system is relatively dirty, use a suitable wrench to loosen the valve cap, reverse the disc, and position the side with the drain scratch facing the valve seat. Tighten the valve cap without using a gasket, but apply high-temperature grease. Tighten the valve cap to the appropriate torque, avoiding the use of adjustable wrenches to prevent twisting the cap. If used in dirty environments, increase the depth of the scratch or increase the number of scratches (up to 3 scratches). The scratches should be evenly distributed on the disc surface and facing outward. **Handling** This product is recyclable and will not cause ecological problems if handled properly. **Ordering Instructions** Example: 1-½' Spirex Airodyn air compressor drain valve, threaded connection BSP. **Spare Parts** Spare parts are indicated with solid lines in the diagram; dashed parts are not available. Spare Parts: Disc (3 sets) 3 Filter Mesh and Gasket 4,6 Filter Cap Gasket (3 sets) 6 **Ordering Spare Parts** Order spare parts according to the above instructions and specify the model and caliber of the drain valve. Example: 1-Filter for Airodyn ½' drain valve. The above content is written by Biao Wei Company (www.bilvie.com). Please indicate the source when reprinting. **The company also supplies similar products as listed above:** **Spirex Air Compressor Drain Valve, Spirex Airodyn Drain Valve, Spirex Stainless Steel Drain Valve**
