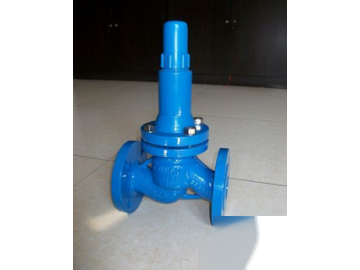

Product Name: Shuttle Pressure Relief Valve
Product Introduction:
ZSX41X Shuttle Pressure Relief Valve is installed on pressure equipment or pipelines. When the pressure in the protected system exceeds the set pressure, the shuttle pressure relief valve automatically opens to discharge excess medium, preventing the system pressure from rising further. When the system pressure drops to the specified value, the valve can automatically close, ensuring safe and reliable operation of the system.
Main Parameters:
Nominal Pressure: 1.6~6.4MPa, 150LB~300LB
Nominal Diameter: DN20~DN200
Body Material: WCB, A105, 304, 316, 316, 316L, F304 etc.
Working Temperature: ≤80℃
Medium Used: Oil products, etc.
Set Pressure: Set according to customer requirements
Structure Length: GB/T12221 Standard
Connection Flange: JB/T, GB, CB, API and other standards
Testing and Inspection: Refer to GB/T12243 Standard
Welcome to call and negotiate for purchase, we will serve you wholeheartedly! Shanghai Fugong Valve Technology Co., Ltd.
