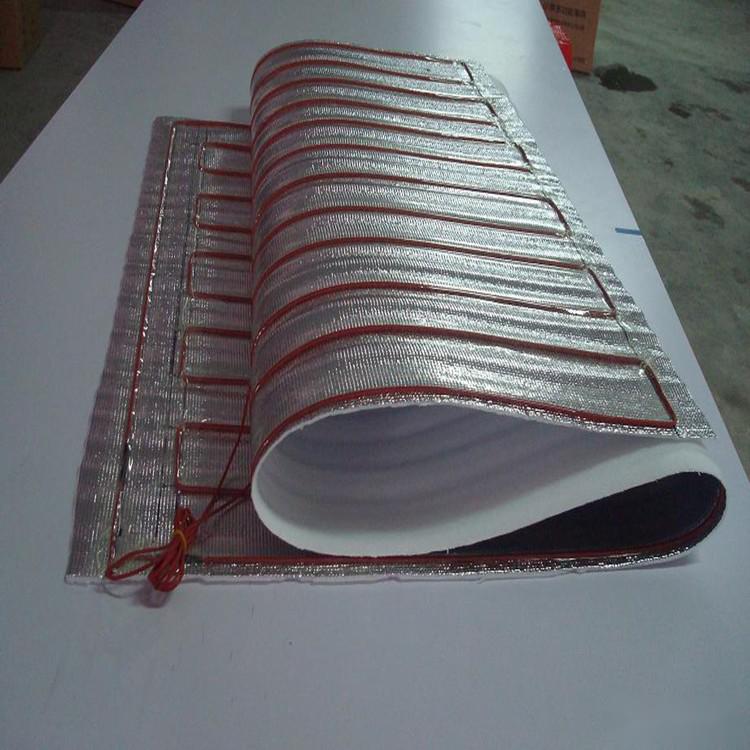

2016 New Intelligent Electric Heating Insulation Board System Structure and Installation:
1. System Structure Composition: Insulation Material, Steel Wire Mesh, Heating Cable, Zip Ties, Cement Concrete, Ground Temperature Probes, Thermostat.
2. System Installation: Simply place the "Underfloor Heating Board" under the pig bedding area in the farrowing house and nursery, pour cement mortar, connect to a 220 V power supply and thermostat for use. Each pig house can independently control temperature, saving energy and being convenient.
Functions and Features:
1. The constant temperature heating board uses a dedicated heating cable, is encapsulated in cement concrete, is sturdy and durable, with a service life of over 20 years.
2. Waterproof and corrosion-resistant, can be washed and disinfected.
3. Energy-saving and efficient, the 150W constant temperature heating board saves over 20% of electricity compared to a 250W infrared bulb. In actual use, when piglets rest on the constant temperature heating board, the heat retention box and the body temperature of the piglets slow down the heat loss of the heating board, enhancing energy-saving effects, especially as room temperature increases.
4. The constant temperature heating board emits beneficial far-infrared rays during operation, which is beneficial for the growth of piglets.
5. Intelligent self-control maintains a constant comfortable temperature in the heating area, preventing piling and squeezing of piglets during heating and resting, creating a comfortable growth environment for them.
6. The abdominal heating method is a strong guarantee for reducing yellow and white diarrhea in piglets and improving their survival rate.
7. Fully automatic constant temperature, no manual inspection is required.
8. The constant temperature heating board has good heat storage performance; it can maintain an effective warm temperature for several hours after a power outage, alleviating concerns during temporary power outages.
9. Utilizes our company's dedicated constant temperature thermostat, which is highly intelligent and can set temperatures according to the growth stages of piglets.
10. The thermostat is specially designed for farms, moisture-proof, waterproof, and corrosion-resistant, suitable for the harsh environments of farms.
11. Each constant temperature heating board is equipped with a thermostat, allowing individual control of each heating board, enabling different personalized heating temperatures for each litter of piglets, making control flexible and convenient.
12. Multiple safety protection functions, lightning protection and leakage protection, ensuring the system operates safely and reliably.
Advantages of the 2016 New Intelligent Constant Temperature Electric Heating Floor Panel:
1. Over 20 years of service life, benefiting long-term from a single investment.
2. Energy-saving and electricity-saving, reducing electricity expenses, practical and affordable.
3. No more worries about burning a large number of bulbs each year; the benefits are visible.
4. A constant temperature growth environment leads to healthy piglets, reducing disease incidence and cutting down on vaccination expenses.
5. Reduces feed consumption for piglets to resist cold, improving feed utilization efficiency.
6. Increases survival rates, providing a strong guarantee for enhancing the economic efficiency of the farm.
7. Intelligent automatic control reduces labor intensity, benefiting the workers.
How to Adjust the Temperature for Winter Pig Farming?
Temperature has an extremely close relationship with the growth, development, and health of pigs. Therefore, in the management of pig farming, it is essential to focus on temperature management and adjustment to create a suitable growth temperature, which is a necessary guarantee for promoting rapid growth or fattening and achieving higher economic benefits. Environmental Temperature
When the external temperature is too low, pigs must enhance the oxidation and decomposition of substances within their bodies to generate heat and compensate for heat loss. Generally, when the surrounding temperature for piglets is between 20°C and 26°C, their metabolic consumption is lower, and growth and development are normal. However, for larger pigs, a temperature range of 15°C to 20°C corresponds to lower metabolic consumption and normal weight gain. Therefore, it is important to ensure good cold-proof and insulation measures in the pig house (such as covering the pig house with plastic film) to raise the indoor temperature, which not only reduces the metabolic consumption of pigs but also promotes their growth and weight gain. Drinking Water and Feed Temperature
In winter, the temperature of drinking water and feed is also closely related to the growth and health of pigs. A lactating sow needs about 17.5 to 22.5 kilograms of water and feed daily. If the water and feed temperature is at 0°C, raising them to body temperature level of 39°C will require the pig to expend 682 to 878 kilocalories of heat energy, which equals to a daily need of 0.5 to 0.75 kilograms of concentrate feed just to maintain body temperature, which cannot be used for lactation, growth, and weight gain. Therefore, when feeding pigs in winter, it is important to regularly provide warm feed and warm water to reduce feed consumption and improve feeding efficiency.
Introduction to Livestock Heating Systems
The livestock electric underfloor heating is specially developed and designed for the livestock industry by our company. This product uses carbon fiber, widely applied in high-tech fields such as aviation, aerospace, and electronics, as the heating element. Its material is characterized by being sturdy, high strength, good stability, energy-saving and environmentally friendly, with a constant surface temperature.
Product Features:
Energy-saving: Uses imported carbon fiber as the heating conductor, saving over 30% compared to other electric heaters. No need for coal stoves or boilers. It is 15%-40% more energy-efficient than air conditioning heating and 10%-20% more efficient than gas boiler heating.
Disease Prevention and Health Care:
When electrified, carbon fiber produces a large amount of far-infrared rays, which can accelerate blood circulation, improve immunity, and enhance the physique of pigs. The heating process is silent, odorless, and without harmful radiation, and does not change the humidity of the air.
Safe and Durable:
This product uses advanced international Teflon as insulation material, resistant to acids and alkalis, aging-resistant, and has passed 3750V high-voltage testing without failure. It can be washed and does not require maintenance.
Economic Operation:
You control your heating costs, with controllable temperatures and instant heating, truly “easy to use and affordable”!
No Maintenance:
After installation, the product has the same lifespan as the building, requiring no subsequent maintenance. It is easy to operate, with precise temperature control, eliminating the hassle of burning boilers and coal stoves, providing peace of mind and reducing labor!
