Product Introduction |
| Material: | Nylon PA66 |
| Thread Specification: | Metric (M), PG (German), NPT (American), G (British) |
| Commonly Known As: | Nylon cable fixing head, nylon waterproof connector, external force type cable clamp connector, plastic waterproof connector, cable waterproof line buckle, PG type nylon cable fixing connector, M type waterproof connector, MG type nylon waterproof cable connector |
|
Thread Specification: |
Metric thread M, complies with EU standards. |
|
Product Description: |

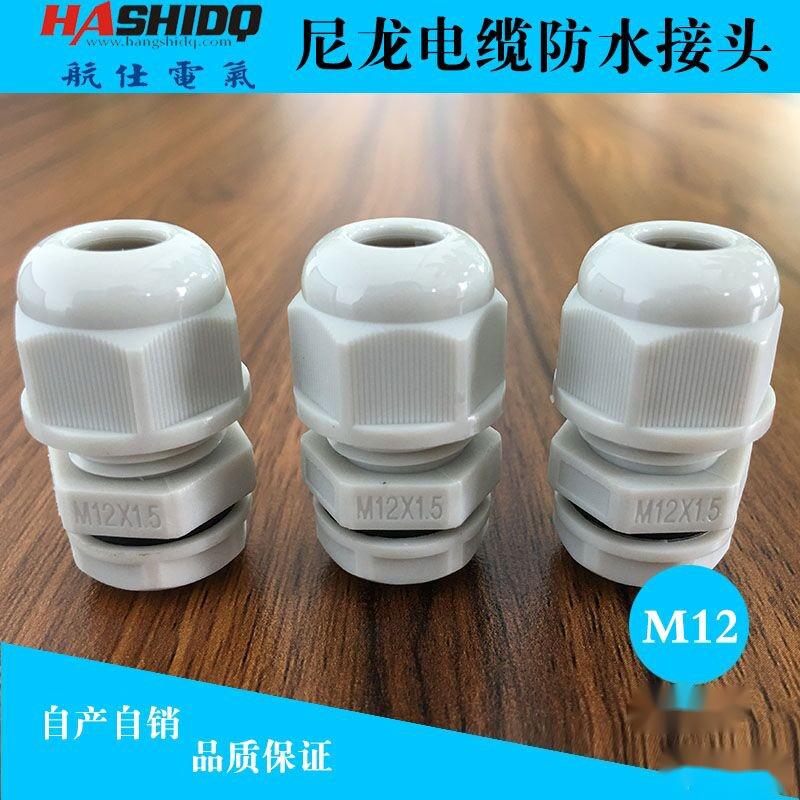

The design features a precise and aesthetically pleasing exterior, combined with a locking nut structure that maintains high torque, providing excellent tensile strength and airtightness, capable of withstanding submersion at 50 meters. This product has passed a 1000-hour UV weather resistance test, with waterproof and tensile strength functions remaining unchanged. The product is resistant to acids, alkalis, chemical substances, and general solvents, making it widely applicable in various fields such as machinery, automation, electrical, networking, connectors, telecommunications, and lighting. |
|
Protection Level : |
Within the specified socket range, and using an O-ring seal to tighten the locking head, achieving IP68-5Bar Color : Black (B), Gray (G), various other colors can be customized, please consult our sales personnel. |
|
Fire Rating: |
UL94V-2, up to V0 level fire rating. |
|
Material: |
Parts A.C.E.F are made of UL recognized nylon PA66 (fire rating UL 94V-2), while parts B and D are made of EPDM weather-resistant rubber. Various sizes and materials of rubber can be customized. |
| Operating Temperature: | -40℃ to +100℃, can reach +120℃ for short periods. (Product specifications, ROHS declaration, etc. can be requested after purchasing the product) |
