Product Introduction |
| Material: | Nylon PA66 |
| Thread Specifications: | Metric (M), PG, NPT, G |
| Commonly Known As: | Nylon cable fixing head, nylon waterproof connector, external force type cable clamping connector, plastic waterproof connector, cable waterproof line buckle, PG type nylon cable fixing connector, M type waterproof connector, MG type nylon waterproof cable connector |
|
Thread Specifications: |
Metric M, conforms to EU standards. |
|
Product Description: |
The design features a precise and aesthetic appearance, combined with a locking nut structure that maintains high torque, providing excellent tensile strength and airtightness, with the capability to withstand water immersion up to 50 meters. This product has passed 1000 hours of UV resistance testing, maintaining its waterproof and tensile strength functions. It exhibits acid and alkali resistance, chemical resistance, and general solvent resistance, making it widely applicable in various fields such as machinery, automation control, electrical, network, connectors, telecommunications, and lighting. |
|
Protection Level : |

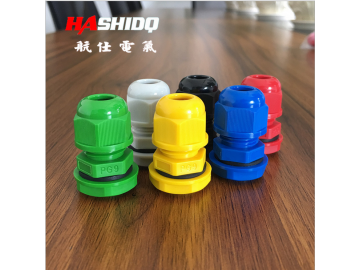

With the specified connector range and the use of O-ring seals to tighten the locking head, achieving IP68-5Bar Color: Black (B), Gray (G), and various other colors can be customized. Please consult our sales staff. |
|
Fire Rating: |
UL94V-2, up to V0 fire rating. |
|
Material: |

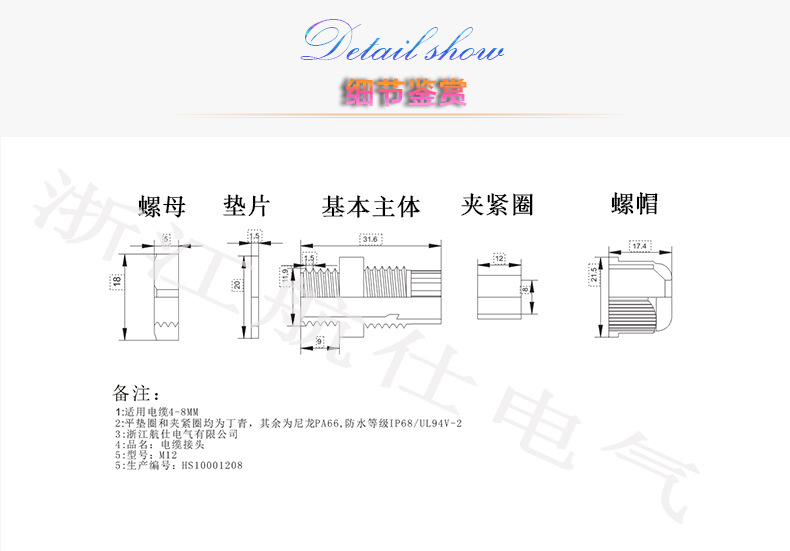

Parts A, C, E, and F are made of UL-approved nylon PA66 (fire rating UL 94V-2), and parts B and D are made of EPDM weather-resistant rubber. Various diameters and materials of rubber can be customized. |
| Operating Temperature: | -40℃ to +100℃, can briefly reach +120℃. (Product specifications, ROHS declaration, and other documents can be requested after purchasing the product.) |
