Metal Wound Gasket Price, Direct Sales from Manufacturer, Shanghai Qintu
Construction Materials-Other Building Materials
Expand
Product Content
Category
Construction Materials-Other Building Materials

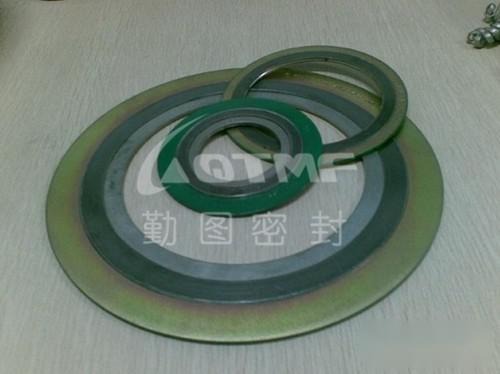

Metal Wound Gaskets (with Inner and Outer Rings) (Basic Type) are composed of a basic type plus inner and outer rings made from materials such as 304, 304L, 316, and 316L. The inner and outer rings are used to enhance pressure resistance and prevent loosening of the winding. Different materials can be selected for the inner and outer rings. Performance: High temperature resistance, high pressure resistance, corrosion resistance, and good compressibility and rebound rate. Applications: Ideal static sealing materials for flange connections in petroleum, chemical, electric power, metallurgy, shipping, papermaking, pharmaceuticals, and sealing areas of pipes, valves, pumps, manholes, pressure vessels, and heat exchange equipment. Stainless Steel Band Shapes: "V", "W", "SUS", "U". Stainless Steel Band Materials: A3, 304, 304L, 316, 316L. Non-metallic Bands: Special asbestos, flexible graphite, polytetrafluoroethylene, etc. Operating Temperature: -196℃ to +870℃ (Flexible Graphite) ≤ +250℃ (Polytetrafluoroethylene) ≤ +500℃ (Special Asbestos) Medium: Suitable for high temperature and high pressure steam, oil, oil-gas mixtures, solvents, thermal coal body oil, etc. Operating Pressure: ≤ 300Mpa Maximum Processing Size: ~2800mm; Special specifications or various non-standard products can be customized according to customer requirements. Minimum Pre-tightening Ratio Pressure: y = 68MPa
Product Consultation
Supplier
Shanghai Qintu Sealing Parts Co., Ltd.
location
Shanghai
Main products
PTFE fiberglass, dispensing machine seal, PEEK washer, PTFE packing, PCTFE tube, Teflon coated silicone O-ring, PTFE back-up ring/gasket, PTFE with guide ring, ultra-high molecular weight polyethylene UPE, PTFE graphite, ultra-high molecular weight polyethylene, PTFE countersunk screw, PCTFE valve seat, dispensing machine seal, PEEK valve seat, PTFE with guide ring, moldless machined polyurethane PU, PTFE valve seat, face V-seal, PTFE polyimide, LNG fueling nozzle external seal, low-temperature V-seal, expanded PTFE sealing tape, bore V-seal, PTFE bushing, PEEK tube, polyoxymethylene (POM), PTFE+fiberglass, expanded PTFE round rod, reinforced PTFE products, PTFE fasteners, polyurethane, nylon, PCTFE rod, nylon PA, PTFE back-up ring, Teflon coated O-ring, polyoxymethylene POM, polyurethane PU, PEEK tube and rod seals, PTFE irregular parts, step seal, PTFE+graphite, expanded PTFE sealing tape, polyoxymethylene (POM), PTFE hex socket screw, G-rings, PEEK rod, polyurethane (PU), guide ring, flexible PTFE sealing tape and strip, shaft V-seal, high-pressure valve V-seal, PTFE irregular screw, polyoxymethylene, LNG seals and accessories, PTFE piston ring, PCTFE sheet, PTFE+polyimide, expanded PTFE round rod, Teflon coated fluororubber O-ring, PTFE diaphragm, G-rings and step seal, low-temperature resistant PCTFE products, LNG fueling nozzle, laser cutting head V-seal, PCTFE gasket, PTFE container, PTFE+carbon fiber, PTFE elastic tape, PTFE carbon fiber, PTFE pickling tank, LNG seal, rotary V-seal, polyurethane (PU)
About Us
Sure, here is the translation of the provided information: ``` Shanghai Qintu Sealing Parts Co., Ltd. is located in Fengxian District, Shanghai. Fengxian District is situated at the southeastern end of the Yangtze River Delta, in the southern part of Shanghai, facing Hangzhou Bay to the south and the Huangpu River to the north. It overlooks Minhang District across the river and is adjacent to Pudong New Area to the east, as well as Jinshan District and Songjiang District to the west. The company produces sealing parts mainly including PTFE series sealing parts, PCTFE series sealing parts, graphite sealing parts, PEEK, POM, nylon, PVDF, and other high-temperature and high-pressure sealing products and fluoroplastic products. We also offer customized sealing solutions for specific user requirements. The company has long-term and extensive cooperation with domestic peers in the sealing industry. We can design and produce special seals suitable for various harsh environments such as high and low temperatures, corrosive conditions. Our products strictly adhere to quality standards, and our processes are meticulously refined. High-temperature and corrosion-resistant products are exported worldwide and have received consistent praise from customers both domestically and internationally. Our company boasts a streamlined organizational structure, an excellent workforce, and rapid market responsiveness. We have always been committed to providing comprehensive service to our users, maintaining close cooperation and communication with them. We strive to offer reasonable prices and optimal quality to ensure that users receive the best products and services. In addition to supplying the entire range of PTFE products, we welcome feedback from users to further meet their expectations for both services and products. Our company adheres to the principles of "Honoring contracts and keeping promises" and "Quality first, customers foremost." We aim to improve our quality assurance system by adhering to the ISO9000 enterprise quality management system certification. With an unprecedentedly positive attitude and a spirit of continuous advancement, we look forward to working together with you to achieve brilliance in the 21st century. We warmly welcome new and old customers alike! ```
