Product Introduction:

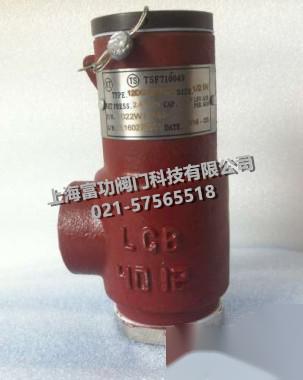

The 120 series safety valve is mainly used in industrial refrigeration equipment as an overpressure protection device. It is generally suitable for refrigerants such as ammonia and propylene, featuring a simple structure and excellent sealing performance. The applicable temperature range is -46℃ to -150℃.
Product Name: Industrial Refrigeration Safety Valve, Chiller Safety Valve, Refrigeration Machine Safety Valve, KT Safety Valve
Product Model: 12DG13FNCF
Main parameters, appearance, model, and connection dimensions are as follows:
The company's series models are as follows:
Model:
12DG13FNCF Diameter 1/2x1 Structural Length 43*46 Valve Body Height 136mm
Model:
12EH16FNCF Diameter 3/4x1-1/4 Structural Length 51*51 Valve Body Height 158mm
Model:
12GJ22FNCF Diameter 1x1-1/2 Structural Length61*61 Valve Body Height 194mm
Model:
12JL34FNCF Diameter1-1/2x2 Structural Length86*136.5 Valve Body Height255mm
For specific parameters, prices, delivery times, etc., please feel free to contact us for inquiries and purchases. We will be at your service!
Supplier: Shanghai Fugong Valve Technology Co., Ltd.
