Home > Products list > Finished Plastic Products > Freezer Safety Valve 12EH16FNCF

Freezer Safety Valve 12EH16FNCF

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials

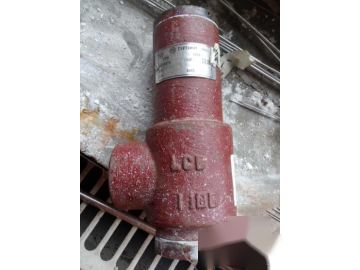

1. Product Introduction:
Cooling safety valve for 12EH16FNCF freezer, 12EH16FNCF safety valve for freezer, 12EH16FNCF cooling safety valve.
The set pressure of this safety valve is 2.07 MPA and 2.42 MPA with a nominal passage diameter of 3/4.
2. Main Product Parameters: Shanghai Fugong Valve specializes in safety valves for freezers, refrigerant safety valves, cooling safety valves, 12EH16FNCF safety valve for freezers, 12EH16FNCF refrigerant safety valve, 12EH16FNCF cooling agent safety valve, 12EH16FNCF cooling safety valve, 12EH16FNCF freezing valve, and 11DG11MN-0350TF safety valve for freezers. The low-temperature fluid series safety relief valve is an overpressure protection device for refrigeration equipment. According to the ANSI/ASHRAE 15 standard, to prevent system pressure increase caused by fire or other abnormal situations, safety relief valves must be installed in refrigeration equipment systems. Installing the appropriate JFL brand safety relief valve can avoid the overpressure that refrigeration systems may face at any time; and after pressure relief, the safety relief valve automatically closes to minimize refrigerant loss.
Specifications Size mm (in) in H (mm)
Inlet A Outlet B
DN8 (1/4) 1/4-18MNPT 5/8-18UNF 80
DN10 (3/8) 3/8-18MNPT 5/8-18UNF 90
DN15 (1/2) 1/2-14MNPT 7/8-14UNF 95
DN20 (3/4) 3/4-14MNPT 3/4-14FNPT 100
DN25 (1) 1-11.5MNPT 1-11.5FNPT 120
DN32 (1/4) 1/4-11.5MNPT 1/2-11.5FNPT 175
Shanghai Fugong Valve Technology Co., Ltd. welcomes inquiries and orders from all customers, both new and old!
