Electric V-type Control Ball Valve ZDRV-16P_ZDRV-25P

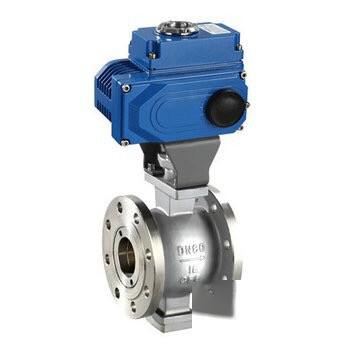

**Electric V-Type Regulating Ball Valve ZDRV-16P ZDRV-25P Product Introduction:** The Electric V-Type Regulating Ball Valve ZDRV-16P is composed of an electric actuator and a V-type ball valve body. The V-shaped cut ball surface valve plate of the ball valve rotates closely against the sealing surface in a small opening range to control fluid flow as an angle stroke regulating valve. It is suitable for various pipelines with Class 150～600, PN 1.6～10.0 MPa, and a working temperature of ≤200°C, used to regulate the pressure and flow of media in the pipeline, applicable to water, steam, oil products, acids, oxidizing media, and other various media. Due to the gapless rotation between the valve core and the seat, it has a high shear force and self-cleaning performance, making it particularly suitable for controlling suspensions that contain fibrous materials or small solid particles. **Main Features of Electric V-Type Regulating Ball Valve ZDRV-16P ZDRV-25P:** 1. Compact structure, small size, and can be installed vertically or horizontally. 2. Adopts a dual-bearing structure with high mechanical stability, low starting torque, ensuring excellent sensitivity and response speed of the valve. 3. Reliability and safety with a one-piece valve body, sturdy and durable, operation unaffected by pipeline pressure, and prevents valve body leakage. 4. Inherent flow characteristics with an adjustable ratio of up to 300:1, allowing precise control over a wide range of variations. 5. Due to its streamlined shape and full right-angle rotation control, it has a particularly high volume, large flow capacity, and low flow resistance. 6. Uses a movable metal seat with self-compensating functionality and excellent sealing performance. In the flow direction, the leakage rate is ≤10-6× rated flow coefficient. 7. The shear capability of the V-type ball valve utilizes a metal hard-sealing structure, where the V-shaped notch and the valve seat generate a powerful shear force during rotation, capable of cutting off fibers and other impurities, and has a self-cleaning function to avoid valve jamming. **Electric V-Type Regulating Ball Valve ZDRV-16P ZDRV-25P** is primarily manufactured by Shanghai Guanuo Valve Co., Ltd., specializing in: pneumatic high platform ball valves, electric high platform ball valves, electric explosion-proof ball valves, pneumatic ball valves, electric explosion-proof butterfly valves, pneumatic butterfly valves, electric explosion-proof gate valves, pneumatic gate valves, electric explosion-proof globe valves, pneumatic globe valves, electric regulating valves, and pneumatic regulating valves.
