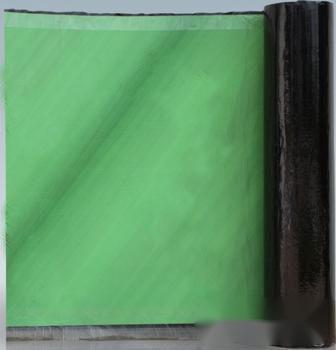

CPS High-Strength Reactive Adhesive Laminate Cross-Laminated Membrane Self-Adhesive Waterproofing Membrane

I. Product Introduction

CPS Strong Reaction Bonded Laminated Cross-Membrane Self-Adhesive Waterproof Membrane is composed of a mesh laminated cross membrane and CPS reactive adhesive, making it a new type of functional and environmentally friendly waterproof material with chemical reactivity. The strong combination of the mesh laminated cross membrane and CPS reactive adhesive elevates the waterproof membrane to a new level of high strength, lightweight, and functionality. It is a new type of self-adhesive waterproof membrane product highly recommended by the state, specifically developed to address the issue of general membranes failing to effectively bond with the substrate, leading to leakage. It can chemically react with fresh cement slurry or poured concrete, forming a strong bond with the concrete substrate through the synergistic effect of chemical cross-linking and physical interlocking. Due to its reactive bonding with the substrate, it achieves an effective waterproof effect, forming a sealing interface layer, which constructs a “dual” waterproof layer structure similar to a composite of a coating layer and a membrane layer on the concrete substrate, adapting to the effects of cracking and deformation in the substrate, thus providing long-lasting waterproofing.

Manufacturer Contact: 18664834088 QQ: 523776826 Manager Yang

II. Product Standards

CPS Strong Reaction Bonded Laminated Cross-Membrane Self-Adhesive Waterproof Membrane adheres to the standard: GB/T23457-2009 Waterproof Membrane Standard.

III. Product Features

(1) Strong adhesion, sealing, and waterproofing without leakage

The first reactive bonding waterproof membrane in China, which can chemically bond with the concrete substrate through the synergistic effect of chemical cross-linking and physical interlocking, providing a firm and lasting irreversible bond, with bonding strength far greater than that of physically bonded membranes;

(2) High strength, high elongation, strong impact resistance, and puncture resistance

The surface structure is made of Viro-Lam strong film, employing cross-laminating technology, which is much stronger and tougher than ordinary membranes, with an elongation that is more than three times that of PET films; it effectively resists external forces such as iron picks scratching and heavy objects falling during waterproof construction;

(3) Can be applied in humid conditions, meeting urgent construction needs

Highly adaptable for on-site conditions, can be directly applied on damp or humid concrete substrates, significantly shortening construction time and reducing costs;

(4) Safe, environmentally friendly, and convenient for construction

The material itself is non-toxic and harmless, and it is constructed using cold work methods, eliminating the need for open flames, making the operation safe, environmentally friendly, and convenient.

IV. Applicable Scope

(1) Waterproofing and anti-seepage for various underground projects, such as basements, civil air defense works, subways, and other waterproof projects.

(2) Waterproofing projects for roofs and exterior walls of industrial and civil buildings.

(3) Moisture-proof and waterproof projects for grain depots, electronic workshops, and other moisture-sensitive areas.

(4) Waterproof and anti-corrosion projects in coastal areas with seawater corrosion and significant structural deformation.

III. Applicable Scope:

(1) Waterproofing and anti-seepage for various underground projects, such as basements, subways, tunnels, etc.;

(2) Waterproofing for roofs and exterior walls of industrial and civil buildings, and waterproofing for areas with significant structural deformation;

(3) Waterproofing projects for large water tanks, reservoirs, textile factories, oil depots, and buildings or structures subject to seawater corrosion.

Specifications and Models

Width: 1.0m,2.0m

Thickness: 1.2mm,1.5mm,2.0mm

Length: 10m,15m,20m,30m

Note: Other specifications and dimensions of self-adhesive waterproof membranes can be determined through negotiation between the supply and demand parties.

V. Packaging, Storage, and Transportation

(1) Sealed packaging in specialized plastic bags, stored in a dry, ventilated environment to prevent sun exposure and rain;

(2) Different categories and specifications should be stored separately and should not be stacked or pressed diagonally;

(3) The membranes should be laid flat, with stacking height not exceeding five layers;

(4) During transportation and storage, keep away from fire sources, with a storage temperature not exceeding 35℃ and a storage period of one year.

VI. Construction Process and Precautions

Surface Preparation → Prepare Polymer Cement Slurry → Detail Treatment at Joints → Membrane Installation → Membrane Termination Treatment → Waterproof Layer Acceptance → Protective Layer Construction

VII. Precautions

1. The substrate for CPS Strong Reaction Bonded Laminated Cross-Membrane Self-Adhesive Waterproof Membrane should be flat, clean, and free of standing water;

2. Detailed treatment should be done at pipe joints, corners, flat surfaces, expansion joints, and other areas;

3. Do not walk on polymer cement slurry until it has fully cured, and subsequent construction can only proceed after the polymer cement slurry has completely hardened.
