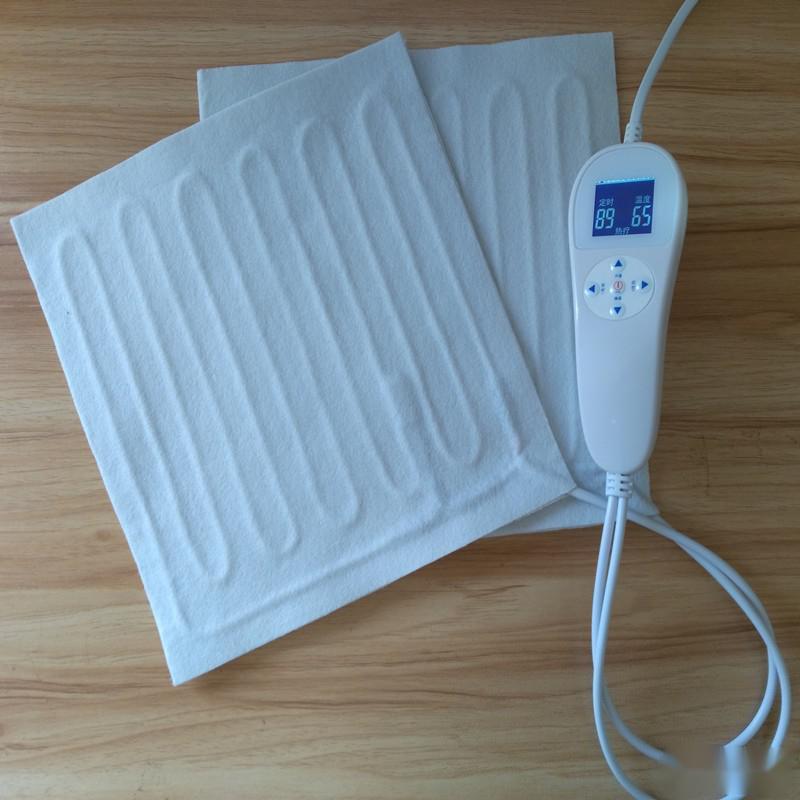

Non-woven fabric heating pad The electric heating pad is made by placing the heating wire between two pieces of needle-punched cotton fabric according to standard methods; the thickness of the needle-punched cotton we generally use is 200g white fabric (with specifications varying from 300g, 400g, to 500g), and the combined thickness of the two pieces of fabric is about 3mm; it can be used for a long time at a temperature of 150 degrees without any odor, is flame-retardant, and made of high-temperature resistant materials. This electric heating pad is simple and lightweight to use, has far-infrared therapeutic heating effects, promotes blood circulation, and enhances human immunity; it is safe and hygienic, distributes heat evenly, has a long lifespan, meets explosion-proof requirements, and is cost-effective; it is equipped with a precise temperature controller (1PCS or 2 temperature controllers) to prevent overheating; its size can be adjusted according to the shape of the heating area, and it has convenient design features, making it an ideal heating component for various low-temperature heating applications. This electric heating pad is widely used in automotive seat cushions, massage equipment, traditional Chinese medicine hot compress bags, hand warmers, electric heating garments, such as dryers, incubators, insulated rooms, advertising de-fogging heaters, and insulation in planting and breeding fields;
Technical Parameters:
Input Voltage: 12-240V/DC-AC
Insulation Resistance: ≥100MΩ
Temperature Resistance: 150℃
Power Range: Customized according to usage requirements
Product Size: Customized based on actual product
Main Materials: Needle-punched cotton, metal alloy heating wire, far-infrared heating wire
Product Lifespan: 8-10 years under normal use
Color Types: White fabric, black fabric
Performance Indicators:
1. Power Density:
105℃ PVC heating wire: ≤12 W/m.
Silicone rubber heating wire: ≤20 W/m.
2. Maximum Working Temperature:
105℃ PVC heating wire: ≤90℃.
Silicone rubber heating wire: ≤150℃.
3. Normal Insulation Resistance: ≥200MΩ.
4. Water Immersion Pressure Resistance: 1800V/1min, or 2200V/5s.
5. Leakage Current: ≤0.12mA.
6. Power Deviation Range: ±0.05
Product Description:
1. Heating Pad Type: Needle-punched cotton heating pad with low voltage heating and fast convenience.
2. Temperature Control:
3. Safety Standards: Produced in safe mode, with automatic internal temperature adjustment.
4. Heating Material: The internal heating wire uses Dongbang brand far-infrared heating wire, and the metal heating wire acts as the heating conductor.
Packaging List
Minimum Order Quantity: 500 pieces
Packaging: Carton packaging, with quantity per box determined by product size
Service Commitment:
From the date of purchase of Xingguan products, the customer department of Xingguan will establish a customer profile. If any issues arise during the warranty period due to processing defects in the company’s products, a replacement or return can be obtained with the delivery note.
