Product Introduction:

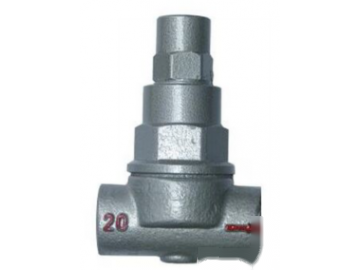

Main Purpose: (TB5F)(TB3F)(TB11F)(TB6F) This valve is suitable for steam main lines and superheated steam lines, automatically discharging condensate water at the discharge temperature, with good energy saving effect.
Working Principle: The valve core is driven to move the valve seat hole open and closed based on the deformation of the bimetallic element caused by temperature changes, achieving the purpose of blocking steam discharge.
Performance Advantages: The thermal sensitive element uses imported materials, with high sensitivity, durability, and sturdiness.
The valve always retains condensate water in front of it, forming a water seal, without fresh steam leakage.
Good exhaust performance, water hammer resistance, and can be installed at any angle.
Main selection criteria: 1. Condensate load (discharge volume) kg/h (selection ratio 2~3 times)
2. Operating pressure Mpa
3. Operating pressure difference Mpa
4. Valve body material and nominal pressure
5. Connection method and size
