6XV1830-3EH10 Siemens Bus Cable, Large Inventory, Various Packaging, Spot Available

SiemensProfibus-DPBus Cable

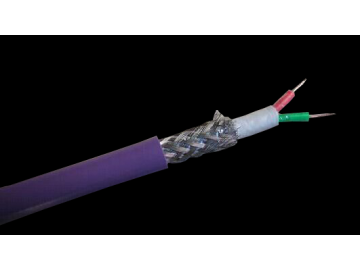

Siemens PROFIBUS-DP bus cable 6XV1830-0EH10
　　1. Parameters are as follows:
　　Conductor: bare copper wire ,1*0.64mm
　　Core colors: green - red
　　Shielding layer: aluminum plastic tape + tinned copper wire braid
　　Jacket: PVC 3DRX 22X 02R
　　Characteristic impedance: 150Ω
　　DC resistance: 57.5Ω/km
　　Operating temperature: -30°C to 70°C
　　2. Technical specifications
　　1. Solid bare copper conductor, 2 cores twisted pair, core wires in red and green colors;
　　2. Double-layer shielding with aluminum foil and bare metal wire braid, PVC outer jacket, flame retardant, appearance in purple;
　　3. Complies with VDE 0472 standards; B class test (IEC332.1);
　　4. Marked in meters, packaged in 100 meters, 200 meters, 300 meters, 500 meters, and 1000 meters on wooden reels;
　　5. Operating parameters: single wire transmission length specification: 1000m, can be extended to 10000m with a repeater.
　　3. Other descriptions
　　1. With its double shielding layer, it is especially suitable for installation in industrial environments prone to electromagnetic interference;
　　2. Grounding continuity can be achieved through the grounding contact point of the bus terminal's outer layer;
　　3. Sold by the meter.
　　4. Product description
　　The conductor consists of 1 pair of lines (2*22AWG) of solid copper wire, red and green insulated jacket layers, aluminum foil/polyester composite tape shielding with a shielding rate of + tinned copper braid with a shielding rate of 78%, double shielding, characteristic impedance 150 ohms, purple PVC outer jacket.
　　 fast connection standard cable, the bus cable is radially symmetrical in design, allowing the use of stripping tools for quick and convenient assembly of bus connectors. The standard bus cable is specifically designed for assembly.

　　Siemens PROFIBUS communication cable 6XV1830-0EH10
　　6XV1830-0EH10 Profibus DP cable 6XV1830-0EH10
　　● USB-PPI Siemens PLC S7-200 programming cable with USB interface, with indicator light, corresponding to Siemens product :6ES7901-3DB30-0XA0, communication distance up to 2 kilometers, cable length is 3 meters;
　　● USB-PPI+ isolated USB interface S7-200PLC programming cable with indicator light, corresponding to Siemens product :6ES7901-3DB30-0XA0, communication distance up to 2 kilometers, cable length 3 meters;
　　● PC-PPI RS232 interface Siemens S7-200PLC programming cable, RS232/PPI interface, corresponding to Siemens product number: 6ES7901-3CB30-0XA0, cable length is 2.5 meters;
　　● PC-PPI RS232 interface Siemens S7-200PLC programming cable, RS232/PPI interface, corresponding to Siemens product number: 6ES7901-3CB30-0XA0, cable length is 10 meters;
　　● USB-MPI+ isolated USB interface Siemens S7-300 programming adapter, with communication indicator light, corresponding model 6ES7972-0CB20-0XA0, communication distance up to 1 kilometer (187.5Kbps), length 5 meters;
　　● PC-MPI+ corresponding to Siemens product number :6ES7972-0CA21-0XA0, Siemens S7-300PLC programming communication adapter, photoelectric isolation type, appearance same as Siemens, includes RS232 cable (5 meters) Mr. Zhu 15889697545
