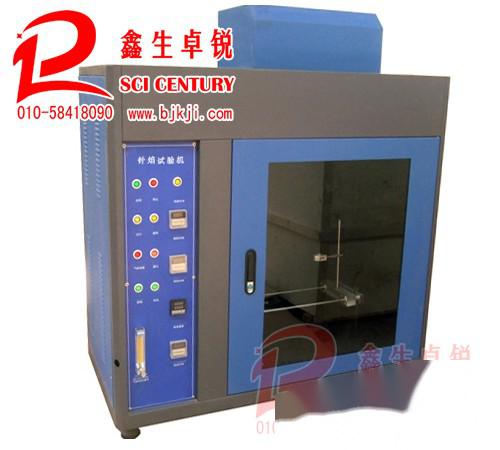

ZY-2 Type Needle Flame Test Machine produced by Beijing Xingsheng Zhuorui
1. Application Range
The needle flame test machine produced by Beijing Xingsheng Zhuorui is suitable for research, production, and quality inspection departments of electrical and electronic devices and their components, assemblies, including lighting, low-voltage electrical appliances, household appliances, machine tool electrical devices, motors, electric tools, electronic instruments, electrical measuring instruments, electrical connectors, and auxiliary components. The needle flame test machine produced by Beijing Xingsheng Zhuorui is also suitable for industries dealing with insulating materials, engineering plastics, or other solid combustible materials.
Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
QQ: 2028696743
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Science and Technology Park, Haidian District, Beijing
Main projects of the needle flame test machine produced by Beijing Xingsheng Zhuorui: Oxygen index measuring instrument / Horizontal and vertical combustion tester / Combustibility test furnace for building materials / Non-combustibility test furnace for building materials / Smoke density tester for building materials / Fireproof coating tester using large plate method / Initial drying crack resistance test device / Electronic testing machine / High and low temperature test chamber / Low temperature freeze-thaw test chamber / Constant temperature and humidity chamber / Cigarette paper smoldering performance measuring instrument, hardness tester, thickness gauge, concrete instruments, cement testing instruments, mortar testing instruments, slurry testing instruments, geotechnical testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof material instruments, highway rock instruments, pavement testing instruments, pressure testing machine curing room instruments, and laboratory consumables, etc.
2. The needle flame test machine produced by Beijing Xingsheng Zhuorui Main Technical Parameters
1. Needle Burner: Inner diameter Φ 0.5mm ± 0.1mm , Outer diameter ≤Φ 0.9mm , Length ≥ 35mm,
2. Burner Flame Angle: 0- 45° ( adjustable )
3. Flame Application Time: 0-999.9s±0.1s freely adjustable (flame automatically advances and retreats, no manual operation required)
4. Sustained Burning Time: 0-999.9s±0.1s, automatically recorded, manually paused
5. Flame Height: 12mm ± 1mm (with height measuring ruler)
6. Needle Height: Greater than 35mm (Inner diameter ф0.5, Outer diameter ф0.9)
7. Fuel Gas: 95% Butane gas ( can use bottled liquefied petroleum gas)
8. Gas flow adjustable (flow meter)
9. Temperature Testing Range: 0~1000℃
10.The needle flame test machine produced by Beijing Xingsheng Zhuorui Flame Temperature Requirement: Time to rise from 100℃±2℃ to 700℃±3℃ within 23.5 seconds±1 second
11. Temperature Measuring Thermocouple: Φ0.5mm imported armored (K type) thermocouple
12. Heat Transfer Copper Block: Ф4.0x6.0mm
13. Test Background: Black background
14. Test Process: Test program automatically controlled, independent exhaust
15. Gas Alarm System (optional)
16. Touch Screen Control (optional)
17. Reference Standards: IEC60695 -11-5, GB/T5169.5-2008, GB4706.1-2005
18. Chamber Volume: 0.5 cubic meters (customizable stainless steel or 0.75 cubic meter box according to customer requirements)
19. External Dimensions: Width 1160mm × Depth 600mm × Height 1295mm
Working Voltage: AC220V, 50Hz
3. Accessories of the needle flame test machine produced by Beijing Xingsheng Zhuorui
4. Design Standards
GB5169.5-2008 , GB4706.1-2005 needle flame test machine produced by Beijing Xingsheng Zhuorui
5. Applicable Standards
IEC60695-2-2
