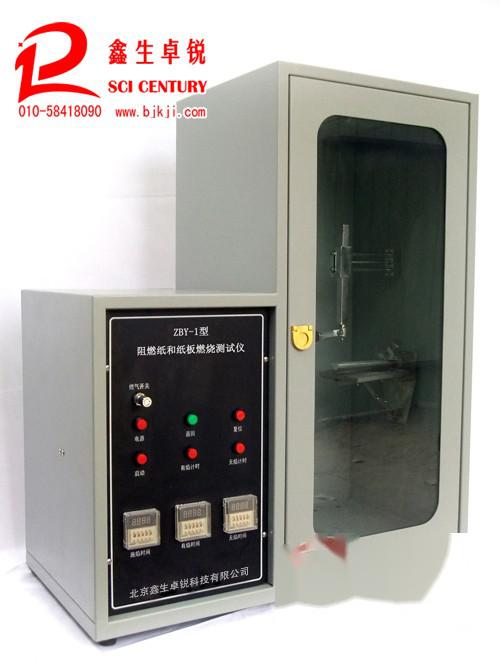

ZBY-1 Flame Retardant Paper and Board Combustion Tester
ZBY-1 Flame Retardant Paper and Board Combustion Tester Application Range
ZBY-1 Flame Retardant Paper and Board Combustion Tester is suitable for testing the combustion performance of flame-retardant treated paper and board with a thickness not exceeding 1.6mm that has been soaked in water. It is also suitable for flame-retardant paper products that have been coated or printed and have a thickness below 1.6mm produced by Beijing Xinsheng Zhuorui.
Beijing Xinsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
QQ: 2028696743
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Science and Technology Park, Haidian District, Beijing
Main Projects: Oxygen Index Determinator/ Horizontal and Vertical Combustion Tester/ Building Material Combustibility Test Furnace/ Building Material Non-Combustibility Test Furnace/ Building Material Smoke Density Tester/ Large Board Fireproof Coating Tester/ Initial Drying Crack Resistance Test Device/ Electronic Testing Machine/ High and Low Temperature Test Chamber/ Low Temperature Freeze-Thaw Test Chamber/ Constant Temperature and Humidity Chamber/ Cigarette Paper Glow Performance Tester, Hardness Tester, Thickness Gauge, Concrete Instruments, Cement Testing Instruments, Mortar Testing Instruments, Slurry Testing Instruments, Geotechnical Testing Instruments, Asphalt Testing Instruments, Highway Aggregate Instruments, Waterproof Material Instruments, Highway Rock Instruments, Pavement Testing Instruments, Pressure Testing Machine Curing Room Instruments and Laboratory Consumables, etc.
ZBY-1 Flame Retardant Paper and Board Combustion Tester produced by Beijing Xinsheng Zhuorui Main Technical Parameters
1. Ambient Temperature: -10℃~ 30℃
2. Relative Humidity: ≤ 85%
3. Power Supply Voltage and Power: 220V± 10% 50HZ Power consumption less than 100W
4. Microcontroller control, digital display automatic timing
5. Automatic ignition Bunsen burner flame application time 12s, accuracy ± 0.01s
6. After flame, afterglow time : Length 0-99M99S
7. Bunsen burner inner diameter 10mm± 0.2mm
8. The Bunsen burner can tilt within 0-45° range( each 5° one gear divided into 8 gears),
9. Bunsen burner blue flame height: 15mm-175mm can be adjusted arbitrarily, equipped with flame height ruler
10. Bunsen burner automatic ignition time: set arbitrarily
11. Digital display after flame, glowing time
12. Gas source: liquefied propane purity ≥ 95%
13. Overall dimensions approximately: 670× 300× 800mm
14. Sample size: 210mm× 70mm
15. Instrument weight approximately: 40kg
ZBY-1 Flame Retardant Paper and Board Combustion Tester produced by Beijing Xinsheng Zhuorui Design Standards:GBT14656-2009 "Test Methods for Combustion Performance of Flame Retardant Paper and Board"
Compliance Standards: GB5907 GB10739
ZBY-1 Flame Retardant Paper and Board Combustion Tester Accessories List
1. Main Body 1 set
2. Sample Holder 1 piece
3. Drip Tray 1 unit
4. Power Cord 1 piece
5. Rubber Tube 1 piece
6. Flame Height Ruler 1 piece
7. Manual 1 copy
8. Certificate of Conformity 1 piece
ZBY-1 Flame Retardant Paper and Board Combustion Tester Related Standards Download:
GBT14656-2009 produced by Beijing Xinsheng Zhuorui "Test Methods for Combustion Performance of Flame Retardant Paper and Board"
