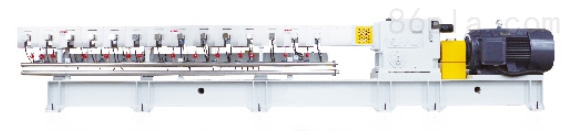

Brief Description: The XTB Series Lithium Battery Twin-Screw Extrusion Host is a new type of thermosetting compression plastic used in transportation, construction, and electrical applications. The BMSJ sheeting machine is equipped with devices for adding thickening agents, fillers, release agents, curing agents, etc., to form polyester resin. It impregnates glass fiber yarn and covers both sides with film to create a sandwich structure, producing unsaturated polyester glass fiber-reinforced composite materials.
Usage Precautions for the XTB Series Lithium Battery Twin-Screw Extrusion Host:
1. The temperature of each section of the barrel increases gradually from the feeding section to the connection between the barrel and the forming mold.
2. The forming mold temperature is slightly higher than the barrel temperature, typically controlled within 5-10°C higher. The temperatures at both ends of the mold should be slightly higher than the middle part, also controlled within 5-10°C higher.
3. For the sheet entry method, the middle roller of the three rollers should be aligned horizontally with the lower surface of the mold lip; the end face of the lip should be parallel to the centerline of the middle roller, maintaining a distance of 50~100mm.
4. The mold lip gap should be slightly less than or equal to the thickness of the board product, with the middle gap being slightly smaller than the side gaps.
5. The roughness R of the working surfaces of the three rollers should not exceed 0.2 μm. When cleaning the roller surfaces, hard steel knives should not be used; instead, copper knives should be used to remove residual material.
6. The rollers should have some central height; the gap between the three rollers should be equal to or slightly greater than the thickness of the board.
7. The temperature control of the forming mold must be stable. Higher temperatures increase the flow rate of the melt inside the mold, while lower temperatures decrease it. Unstable melt flow rates can cause significant longitudinal thickness variations in the board (sheet) products.
8. Pay attention to controlling the working surface temperatures of the three rollers, with the feed roller temperature slightly higher and the discharge roller temperature slightly lower. Higher roller surface temperatures make it difficult for the board blank to separate from the rollers and can cause crosswise patterns on the product surface; lower temperatures result in dull surfaces. Adjust the roller surface temperatures as needed based on these observations.
Maintenance and Care for the XTB Series Lithium Battery Twin-Screw Extrusion Host:
1. During use, if the material temperature does not reach the set temperature for startup or the insulation time does not meet the standard, the screw must not be started or operated under any circumstances.
2. In case of abnormal sounds during normal operation or when an anomaly occurs, immediately stop the equipment and promptly report to relevant personnel so that professional maintenance staff can handle the issue as soon as possible.
3. Even with correct operation, vigilance cannot be relaxed. Safety during the production process must always be a priority. Necessary firefighting equipment should be placed near equipment using heat transfer oil.
Nanjing Xintuo Intelligent Equipment Co., Ltd. was established on May 29, 2020, with Zhou Xianting as the legal representative. The registered capital is 10 million RMB, and the unified social credit code is 91320113MA21LF2H92. The company is located in the Baima Town Industrial Concentration Zone, Lishui District, Nanjing City. It belongs to the other manufacturing industry. Its business scope includes: Permitted projects: import and export of goods; import and export of technology (projects that require approval by relevant departments can only be carried out after obtaining such approval, specific business items are subject to the approval results). General projects: sales of intelligent material handling equipment; research and development of machinery and equipment; general equipment manufacturing (excluding special equipment manufacturing); specialized equipment manufacturing (excluding licensed specialized equipment manufacturing); sales of metal products; wholesale of electronic components; sales of instruments and meters; sales of artificial intelligence hardware; processing and sales of mechanical parts and components; general component manufacturing; sales of plastic products; production and sales of Class I medical devices; sales of Class II medical devices; sales of health supplies and disposable medical supplies; sales of special labor protective equipment; technical services, technical development, technical consultation, technical exchange, technology transfer, and technology promotion (except for projects that require approval, activities can be conducted independently according to the business license). The current operating status of Nanjing Xintuo Intelligent Equipment Co., Ltd. is active (in operation, open, registered).
