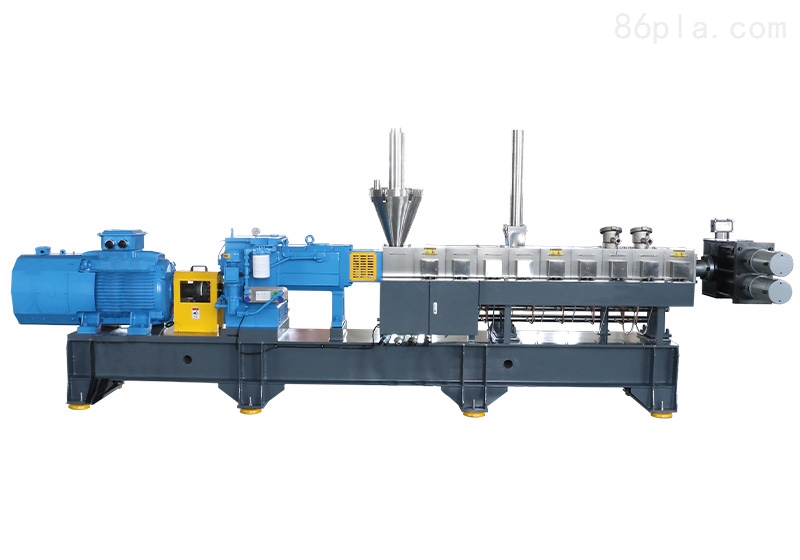

Brief Description:Wood-plastic industrial pelletizers are mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.
Wood-plastic industrial pelletizerFeatures:
This production line integrates mixing, conveying, feeding, and extrusion, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, can be installed flat.
3. The production process involves segmented closed-loop temperature control, with the internal mixer, feeder, and extruder each having their own heating and cooling systems, controlling their respective temperatures according to process requirements.
4. The feeding mechanism adopts a dual-paddle screw design, featuring strong material intake capability. It is particularly suitable for extruding and pelletizing lump materials directly from the internal mixer.
5. The barrel and screw are both made of high-quality 38CrMoAIA alloy steel, which has undergone nitriding treatment for high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, combined with multiple inverters, enabling high-precision, wide-range speed adjustment for feeding, extrusion, cutting, and other multi-station operations according to process requirements. It also features full-process interlocking, audio-visual fault alarms, and other function controls, ensuring a complete and reliable system.
Precautions
The pelletizer should run in the forward direction; avoid reversing.
2. The pelletizer must not be operated without load; it should be run with material after preheating to avoid the occurrence of barrel sticking (shaft hugging).
3. It is strictly prohibited to allow metal objects or other debris to enter the feeding port and vent of the pelletizer, to avoid unnecessary accidents and ensure safe and normal production.
Wood-plastic industrial pelletizerMaintenance:
Regular maintenance and periodic maintenance.
① Daily Maintenance and Care
Daily maintenance is a routine task carried out by the operators of each production shift, such as checking the equipment at the start of the shift, lubricating, cleaning oil stains, and tightening loose nuts.
② Regular Maintenance and Servicing
The regular maintenance and servicing of plastic machines is typically carried out once a year, usually scheduled a few days before holidays. This work is conducted with the cooperation of maintenance workers and operators, with the participation of equipment technicians, to perform the necessary maintenance and servicing on the equipment.
