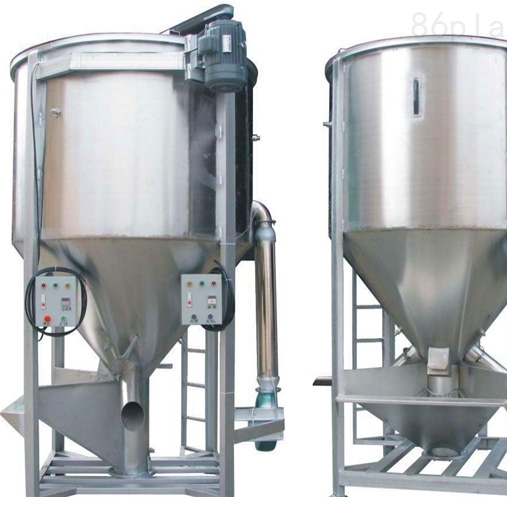

Vertical mixing plastic blending equipmentMain Structure:

1. Frame section: All working units of the machine are installed and fixed on the frame. The frame of this machine is made by welding high-quality carbon steel plates and channel steels, and it has passed strict product qualification certification and specific process requirements to meet the purpose of this machine.


2. Transmission Connection Section: This machine uses a cycloidal pinwheel reducer to drive the main shaft for rotation. The working part of the main unit adopts nylon cylindrical pins as the transmission connectors, which mesh and transmit the drive, facilitating assembly and maintenance.


3. Mixing working section: The power is transmitted from the drive wheel to the main shaft through a pin coupling. This causes the material to be evenly turned over within the mixing chamber, ensuring thorough blending and significantly reducing the amount of residual material.

Maintenance of Vertical Mixing Plastic Blending Equipment


After each shift, the equipment, both inside and out, as well as the surrounding area, must be cleaned.


2. Inspect the mixer's rotation condition (balance and friction) of the equipment every month.


3. The machine should be placed in a well-ventilated area to ensure that the heat generated by the motor can dissipate, thus extending the life of the motor.


4. Regularly check if the belt is loose, and adjust the motor outward until the belt is tightened.


5. Periodically grease the bearings to ensure lubrication between them.


6. If a malfunction is detected during machine operation, the machine must be stopped and the power source disconnected before addressing the issue.


7. Before starting the machine, check if the screws of the blades inside the barrel are loose, and if so, tighten them. 8. Do not mix tools, hard objects, or strip-like materials into the barrel.
