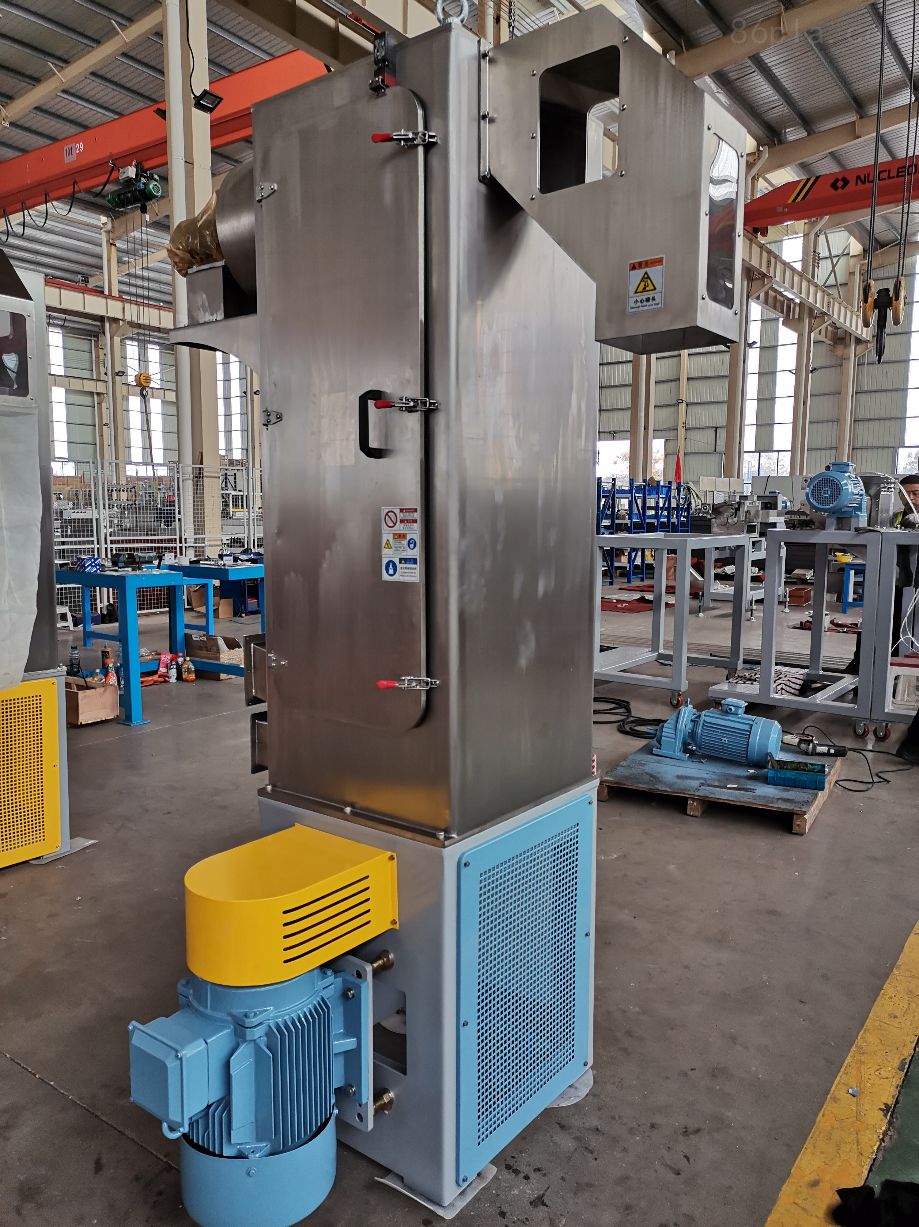

Brief description:A vertical centrifugal dehydrator is a device that uses the rotation of the inner drum and other centrifugal methods to remove moisture from objects through the centrifugal force generated by high-speed rotation.
Vertical centrifugal dewatering machineStructural Features
The machine features a three-legged suspended pendulum structure, which can prevent vibration at the base due to unbalanced load inside the drum during operation.
2, Both the inner drum and outer shell are made of stainless steel, and the rotating drum is also made of stainless steel. The cage base and the chassis are made of cast iron, with the drainage pipe located beneath the chassis.
The spindle is made of high-quality steel that has undergone heat treatment and precision machining.
4. The transmission part adopts V-belt transmission, directly driven by the motor through a centrifugal starting wheel, which allows the machine to start smoothly and gradually reach the designed speed, ensuring stable operation.
5. The machine is equipped with a braking open-close arm, which has good braking performance and can quickly stop the machine.
Vertical centrifugal dehydratorPrecautions:
The operator must be familiar with the machine's structure, performance, and operating methods.
Before starting the machine, turn the drum several times to check its operation.
3. The feeding should be evenly distributed to avoid excessive vibration of the machine due to uneven weight distribution.
4. During normal operation, do not brake the opening and closing arm to avoid damaging the ratchet strap and other components.
5. No objects should be placed on the top cover to prevent accidents when the machine is turned on.
6. If any abnormal phenomena are detected during operation, the power should be immediately cut off, and the machine should be stopped and checked.
7. The machine must be regularly maintained and lubricated, with at least one maintenance check every six months.
Maintenance Methods
The centrifugal dehydrator must be regularly maintained, with lubricating oil added periodically. It should be inspected at least once every six months.
2. Conduct a regular inspection of the centrifugal dewatering machine and motor base, as well as all supporting frames, housing, and connecting pipes at least once a year.
3. The upper and lower parts of the machine should be cleaned every 6 months, or as required by the process conditions.
4. The drum casing should be checked for signs of corrosion and rust at least once every two months.
5. Inspect the bolt components installed on the drum. Check these screws at least once a year and replace them at least every three years.
6. Check the belt tension every 4000 hours, and the V-belt of the main motor should typically be replaced after 16000 hours of operation.
7. The main bearings should be lubricated every half month, with 3g (2-3 shots from a grease gun) of grease added to each bearing (2 in total).
8. For the lubrication of spiral bearings, oil should be added once a month, with 25g (15 shots from a grease gun) for each bearing (2 bearings).
9. Grease the gearbox; the centrifugal dehydrator should have its gear oil replaced every 3000 hours of operation.
