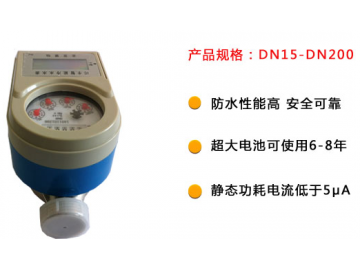

Urumqi ic card water meter price // quotation The development prospects of stepped intelligent IC card water meters
In China, due to the vast territory, large population, and uneven development in various regions. Overall, the vast majority of users in China still use traditional metering devices with low management efficiency and relatively backward technology. Only remote water meters are used in residential communities in economically developed large cities. For many small and medium-sized cities and counties in China, due to the incomplete infrastructure of their computer and information technology, the application of card-type pre-paid water meters is more practical for a long period of time. For economically developed large and medium-sized cities, their computer and information technology infrastructure is relatively good, and people have a relatively strong awareness of water resource protection and conscientious payment, and they have put forward high-quality requirements for water consumption methods. But overall, the application of intelligent water meters in China is still in its infancy.
Product technical indicators
◆ All technical indicators and testing standards meet the requirements of industry standard CJ/T133-2007.
◆ The basic metering level is 2, the cold water basic meter meets the national standard GB/T778-2007, and the hot water basic meter meets the industry standard JB/T8802-1998. The length and threaded connection size of the price of the card-type pre-paid water meter are the same as conventional water meters, and can be directly replaced during installation.
◆ Working pressure The working pressure is 1.0Mpa. At high flow rates, the pressure loss of the water meter is ≤0.1Mpa.
◆ Controller working current: open, close valve current <100mA, sampling current: <1Ua, display current: <20Ua, static current: <5Ua.
◆ Operating voltage: 3.0-3.6V.
◆ Metering method: Double pulse sampling method for measurement.
◆ Valve durability: Valve opening and closing action ≥1000 times, leakage ≤0.015m3/h.
◆ Power supply and service life: 3.6V lithium battery 1 piece, service life >6 years.
◆ Data storage: Data self-memory, retention time ≥10 years.
◆ Conditions of use: Indoor installation, no direct sunlight in the surrounding environment, no harmful gases, no strong electromagnetic interference. Cold water meter: Medium temperature range: 0°C-45°C, relative humidity in the environment does not exceed 93%. Hot water meter: Medium temperature range: 0°C-90°C, relative humidity in the environment does not exceed 93%. Water pressure: ≤1.0Mpa. Water quality: Conforms to national standards for tap water.
