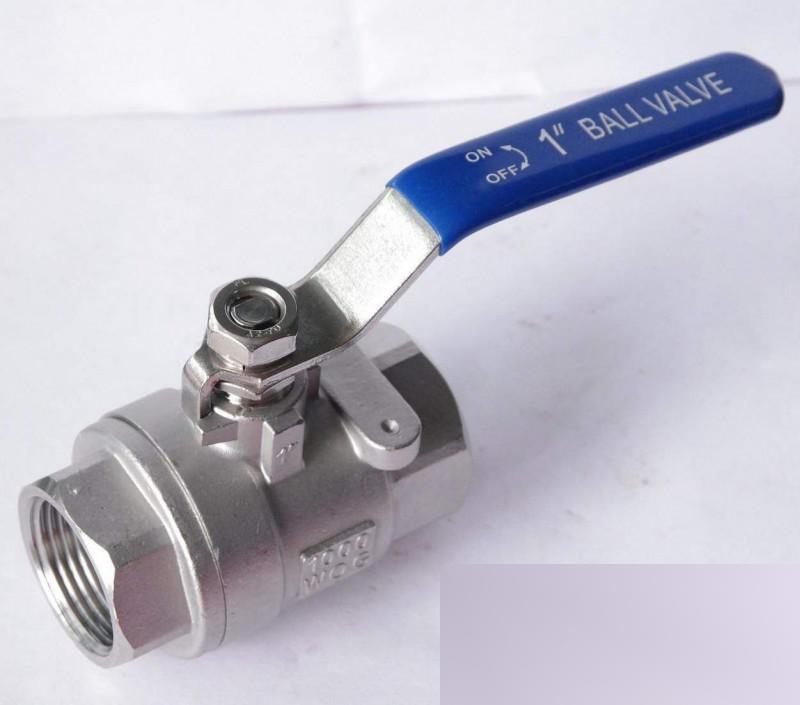

【Product Name: Two-Piece Internal Thread Ball Valve--2PC Threaded Ball Valve】
【Product Model: 2PQ11F-25P】
Far East 2PQ11F-25P Two-Piece Internal Thread Ball Valve Nominal Pressure: 2.5MPa (25kg), the valve body is made of: 304, 316 and other stainless steels. It is precision cast by our factory using silica sol technology and imported advanced processing techniques, featuring a reasonable structure and beautiful appearance. The valve seat adopts an elastic sealing structure, making it easy to open and close, with reliable sealing.
【Product Introduction】:
Henan Far East 2PQ11F-25P Two-Piece Internal Thread Ball Valve is composed of a two-piece valve body locked together. It has a reasonable structure and beautiful appearance. The valve seat uses an elastic sealing structure, allowing for easy opening and closing with reliable sealing. The valve stem features a bottom-mounted structure with back sealing, ensuring that the stem is not impacted during abnormal pressure surges in the valve chamber. A 90° switch positioning mechanism can be set, with locking options available to prevent misoperation.
【Working Principle】:
2PQ11F Two-Piece Internal Thread Ball Valve uses a ball with a circular through hole (solid ball core) as the opening and closing element, consisting of a ball and two valve seats (sealing rings) forming a sealing pair. When the handle is actuated, the ball rotates 90°, thereby achieving the opening and closing action of the valve.
【Product Features】:
1. Easy to install, can be installed in any position in the pipeline in any orientation.
2. The internal passage of the valve body is smooth and flat, capable of transporting viscous fluids, slurries, and solid particles.
3. Can be equipped with various driving mechanisms such as pneumatic and electric, enabling remote control and automated operation.
4. Due to the good self-lubricating properties of materials like polytetrafluoroethylene, the friction with the ball is minimal, resulting in a long service life for the ball valve.
【Other Product Parameters】:
