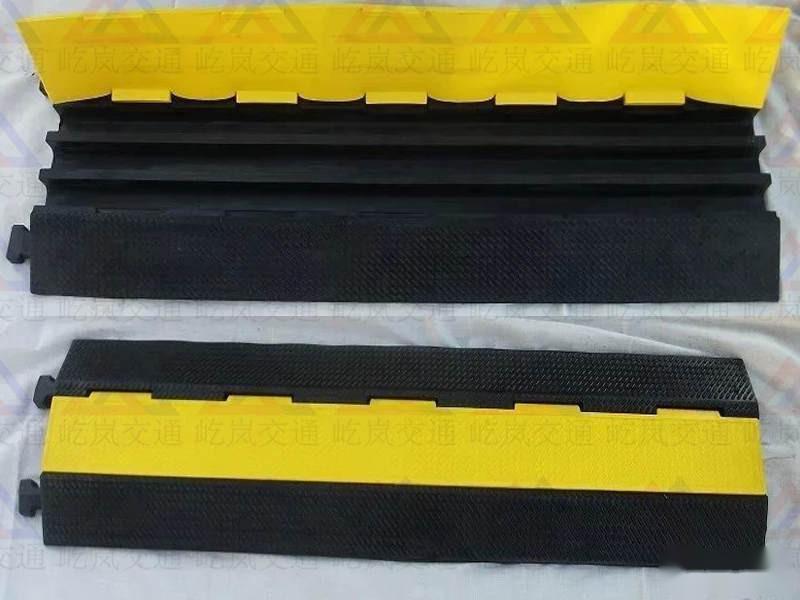

Two-hole slot line slot plate Rental outdoor slot plate Pressure-resistant slot plate aperture
Installation method:
1. Place the slot plate where wiring is needed, connect each piece, put the wire in, cover the cover, and the slot plate can be placed on the road,
or choose a flat ground with one slot, two slots, three slots, four slots, and five slots, such as having two wires,
choose a two-hole slot plate
2. The installation is relatively convenient. It is usually fixed on the ground with standard block arbitrary combination method and internal expansion bolts. It is firmly fixed on the ground, firm, stable and reliable, and will not loosen when hit by a vehicle.
Class B straight plate:
3 slots 1000mm*310mm*55mm (3 slots) aperture: 35x35mm
3 slots 900mm*500mm*75mm (3 slots) aperture: 55x65mm
4 slots 770mm*485mm*65mm (4 slots) aperture: 40x40mm
5 slots 900mm*500mm*50mm (5 slots) aperture: 32x35mm
2 slots 900mm*620mm*100mm (2 slots) aperture: 80x90mm
Two-hole slot line slot plate Rental outdoor slot plate Pressure-resistant slot plate aperture
Class C straight plate:
Small two slots Specification: 1000*250*50mm Slot diameter: 32*35mm Weight: 7 kg
Three slots Specification: 1000*300*50mm Slot diameter: 35*32mm Weight: 9 kg
Large two slots Specification: 900*580*90mm Slot diameter: 80*95mm Weight: 22 kg
Three slots Specification: 900*500*85mm Slot diameter: 70*65mm Weight: 15 kg
Four slots Specification: 900*500*60mm Slot diameter: 40*45mm Weight: 15 kg
Five slots Specification: 900*500*50mm Slot diameter: 30*40mm Weight: 14 kg
One slot in the middle Specification: 1000*260*70mm Slot diameter: 50*70mm Weight: 8.5 kg
One large slot Specification: 1000*580*120mm Slot diameter: 125*100mm Weight: 22 kg
