TL-800 Steel-Reinforced Plastic Wound Pipe Production Line

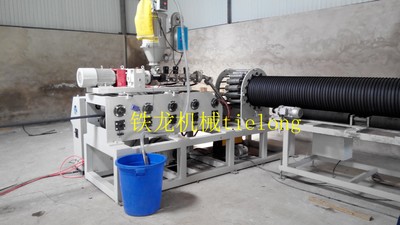

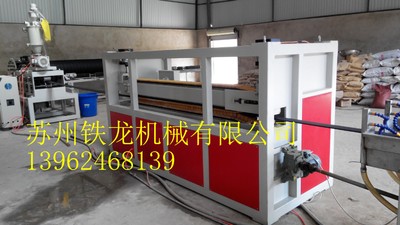

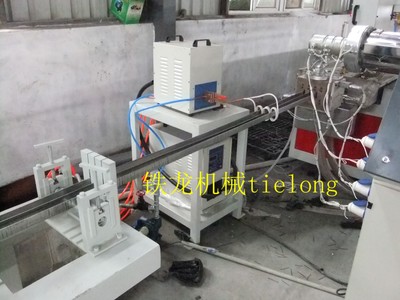

| Brand | Model | Pipe Diameter Range | Extrusion Capacity | Type of Pipes Produced | After-sales Service | |-------|-------|---------------------|--------------------|------------------------|---------------------| | Tielong Plastics Machinery | 200-800 | 200-800 (mm) | 150 (kg/h) | Steel-reinforced plastic wound pipe | On-site installation | The TL-800 steel-reinforced plastic wound pipe is made by spirally winding and welding (extrusion welding on the overlap surface) a steel-plastic composite profile strip. It features high ring stiffness, a smooth and flat inner wall, and specifications ranging from DN200 to DN800mm. The TL-800 steel-reinforced plastic wound pipe production line adopts a modular design, making equipment operation simpler. It uses a single-screw extruder with low energy consumption. PLC intelligent control ensures stable and reliable performance. A unique steel-plastic composite technology has been developed, allowing simultaneous production of the profile strip and pipe in one process. The steel strip is fully integrated into HDPE without bubbles, delamination, or corrosion from other media.
