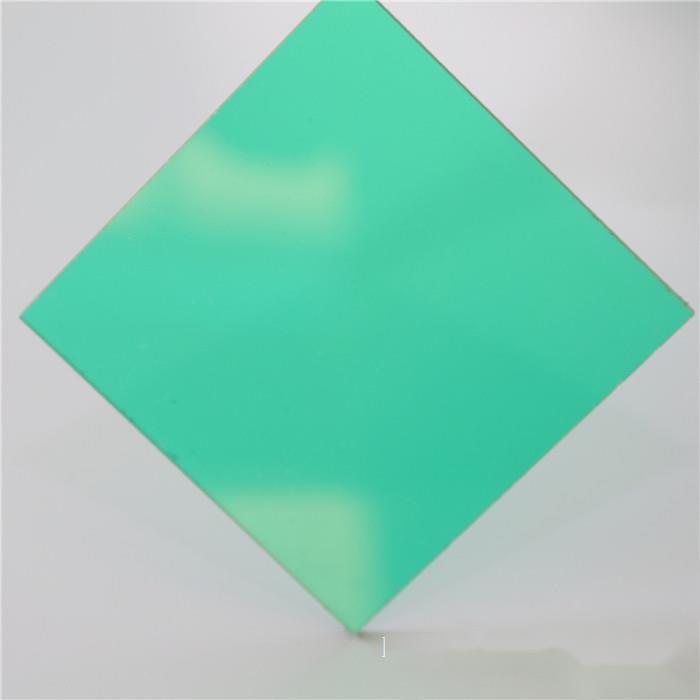

Tianjin endurance board (also known as PC board, polycarbonate, solid board, bulletproof glass, cabron board, plastic solid board, polycarbonate board) is made of high-performance engineering plastic polycarbonate or polycarbonate resin. Characteristics: impact resistance, unbreakable, strength exceeds reinforced glass, hundreds of times acrylic board, tough and safe, good anti-theft and bulletproof effect. Can be arched, can be bent: good processing, strong plasticity, can be bent into arches, semicircles, etc. according to the actual needs of the site, suitable for telephone booths, advertising signs, light box advertisements, exhibition arrangements; suitable for instruments, meters, high and low voltage switchgear panels, LED screen panels and military industry, etc.; suitable for indoor decoration materials such as wind; suitable for highway and urban viaduct sound barriers; suitable for agricultural greenhouses and breeding greenhouses; suitable for modern eco-restaurant ceilings; widely used in curtain.
Performance
(I) Mechanical properties
1. Impact strength: PC endurance board has impact resistance, its impact resistance is 250 times that of glass of the same thickness, and 30 times that of acrylic sheet.
The impact strength of PC endurance board is known as "transparent steel plate".
2. Good tensile strength, good heat resistance of PC endurance board, even at 120°C, its tensile strength can reach 350kgf/cm2.
3. Bending strength: PC endurance board has good bending resistance, even if the bending angle reaches 90°, it will not crack.
4. Fatigue resistance and creep resistance: The creep resistance of PC endurance board is better in thermoplastic plastics. Even at high temperatures, its creep is still very small.
(II) Thermal properties
1. Melting point temperature: PC endurance board melting point temperature 135°C, its continuous use temperature reaches 120°C.
2. Linear expansion coefficient: The linear expansion coefficient is 7×10-5cm/cm/°C, which is relatively small in plastics.
3. Embrittlement temperature: The embrittlement temperature of PC endurance board is -40°C, and the continuous use temperature is -30°C, which is incomparable to general plastics.
4. Combustion: PC endurance board is one of the flame-retardant self-extinguishing plastics. It does not produce toxic gases when heated at high temperatures.
(III) Optical properties
(IV) Sound insulation
PC endurance board has a sound insulation effect 3-4DB higher than glass
