Q61F-16P Three-Piece Butt-Weld Ball Valve、Q61F-16P Stainless Steel Three-Piece Union Butt-Weld Ball Valve、Q61F-16P Stainless Steel Three-Piece Extended Welded Ball Valve

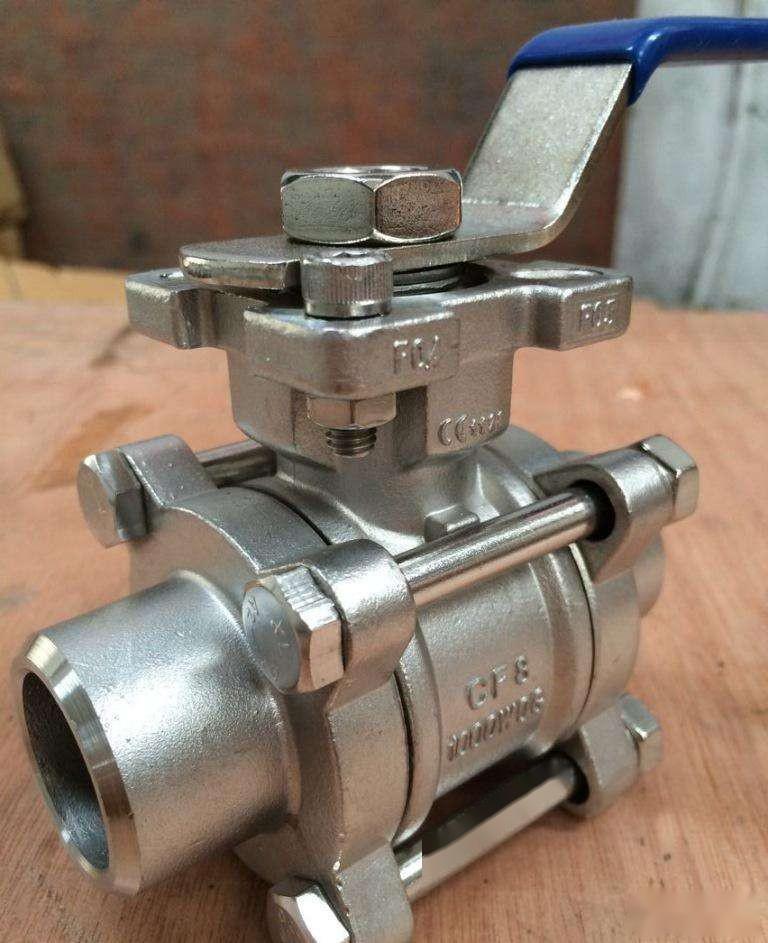

1. Q61F Three-Piece Butt-Weld Ball Valve Product Details:
The closing element of the Q61F butt-weld ball valve is a sphere, which operates by rotating the sphere 90 degrees around the valve body centerline to achieve opening and closing. The straight-through ball valve is mainly used to cut off the medium in the pipeline. There are two types of structure: two-piece and three-piece, and the welding methods include socket welding, bevel welding, and flat welding. The butt-weld ball valve is a new type of valve that has been widely adopted in recent years, and this valve can be installed horizontally or vertically.
2. Q61F Three-Piece Butt-Weld Ball Valve Product Features:
Nominal Pressure: 1.6-6.4 MPa
Applicable Temperature Range: -20~232℃~350℃
Applicable Medium: Water, oil, gas, and certain corrosive liquids (W.O.G)
Thread Types: G.NPT.BSPT.BSP.DI259/2999
